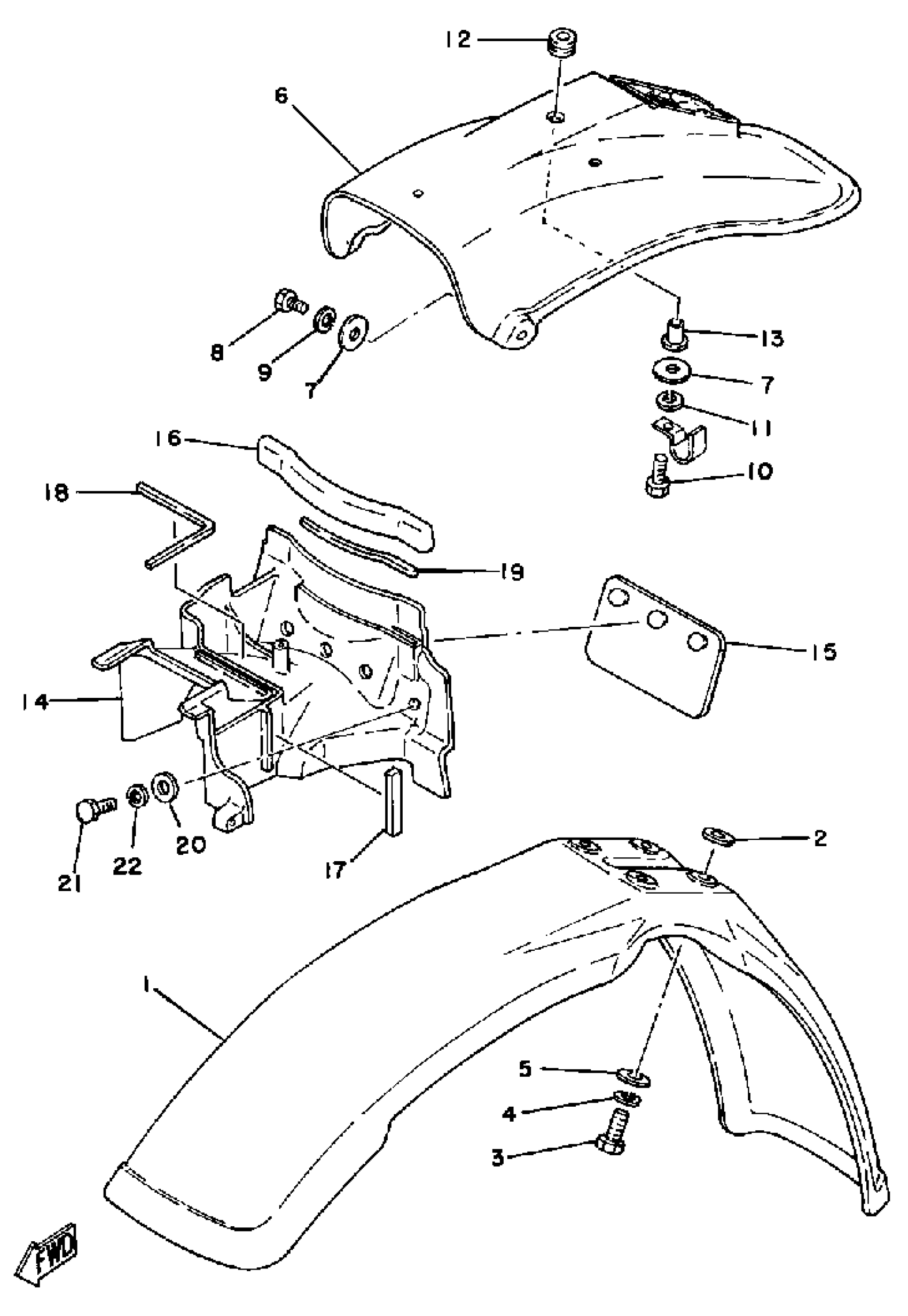

Yamaha IT175H (IT175) 1981 FRONT FENDER-REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5X6-21511-11-00

$43.99

2

WASHER, PLATE

90201-06380-00

$0.60

3

BOLT(3DM)

97024-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER (3R8)

90209-06187-00

$8.49

6

FENDER, REAR

3R6-21610-01-00

Unavailable

7

WASHER, PLATE

90201-06380-00

$0.60

8

BOLT(8CP)

97017-06014-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER, SPRING

92995-06100-00

Unavailable

12

GROMMET

90480-14198-00

$9.49

13

COLLAR

90387-06158-00

$8.49

14

GUARD, MUD

(3R6-21629-00-00)

Unavailable

15

FLAP

1M1-21621-00-00

$16.49

16

. DAMPER

565-21746-00-00

Unavailable

17

DAMPER 1

(3R6-21638-00-00)

Unavailable

18

DAMPER 2

(3R6-21639-00-00)

Unavailable

19

DAMPER (55X-21541-00)

1X2-28372-00-00

Unavailable

20

WASHER, PLATE

90201-06380-00

$0.60

21

BOLT(8CP)

97017-06014-00

$8.49

22

WASHER, SPRING

92995-06100-00

Unavailable
