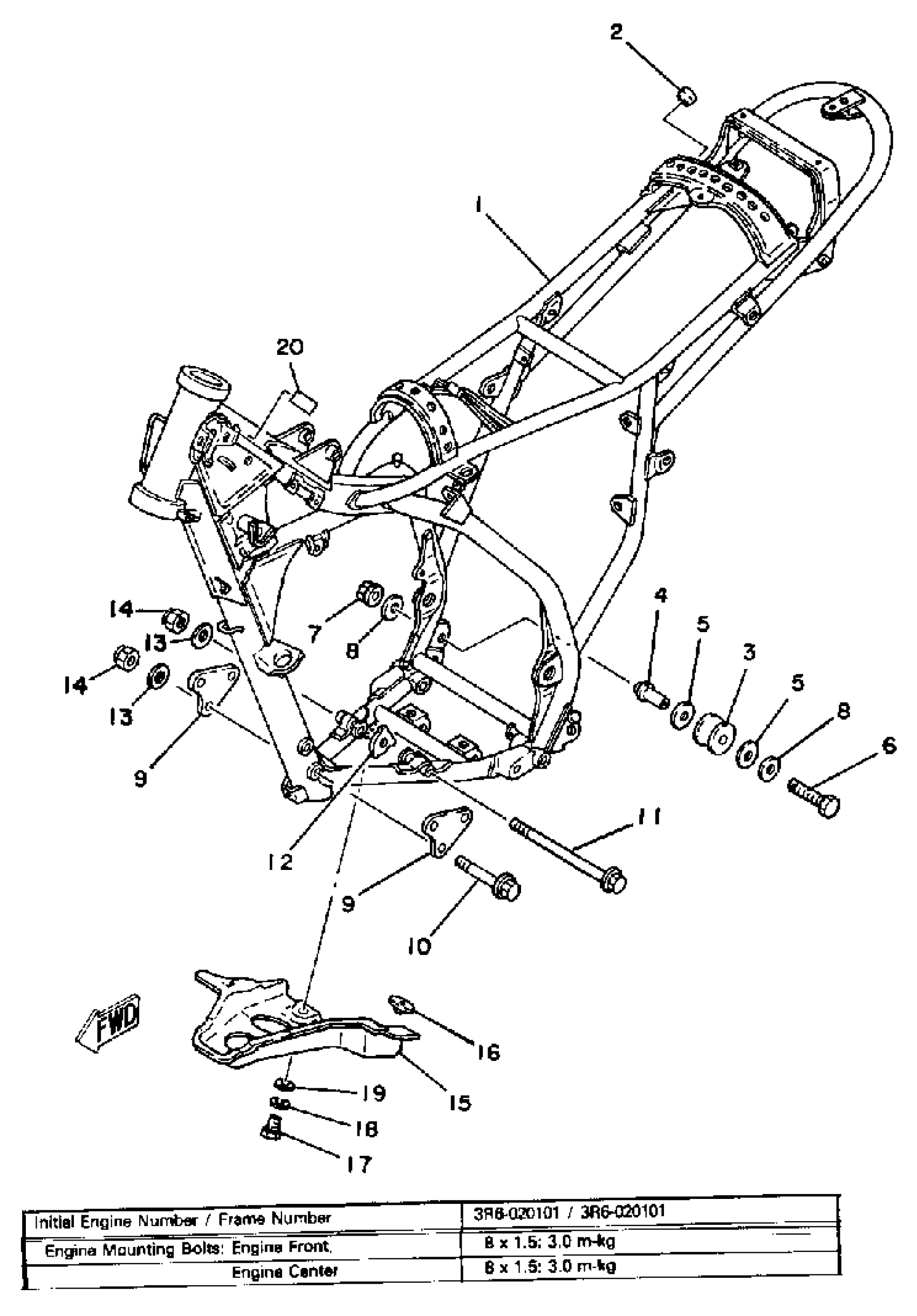

Yamaha IT175H (IT175) 1981 FRAME Diagram
#
Description
Price
1
FRAME
(3R6-21110-02-33)
Unavailable
3
TENSIONER
2K6-22178-00-00
Unavailable
4
SHAFT
3R3-2148A-00-00
Unavailable
6
BOLT, HEXAGON
97013-08050-00
Unavailable
8
WASHER, PLAIN
92990-08200-00
Unavailable
9
BRACKET, FRT UPR 1
3R3-21415-00-00
Unavailable
12
WASHER, CLAW
90214-09019-00
Unavailable
13
WASHER, PLAIN
92990-08200-00
Unavailable
15
PROTECTOR, ENGINE
(3R6-21471-00-00)
Unavailable
16
SEAL, RIGHT SIDE COVER
2J5-21732-00-00
Unavailable
17
BOLT, HEXAGON
97017-08016-00
Unavailable
18
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
19
.. WASHER, PLATE
92990-08600-00
Unavailable
20
COVER
(3R4-2139W-00-00)
Unavailable
