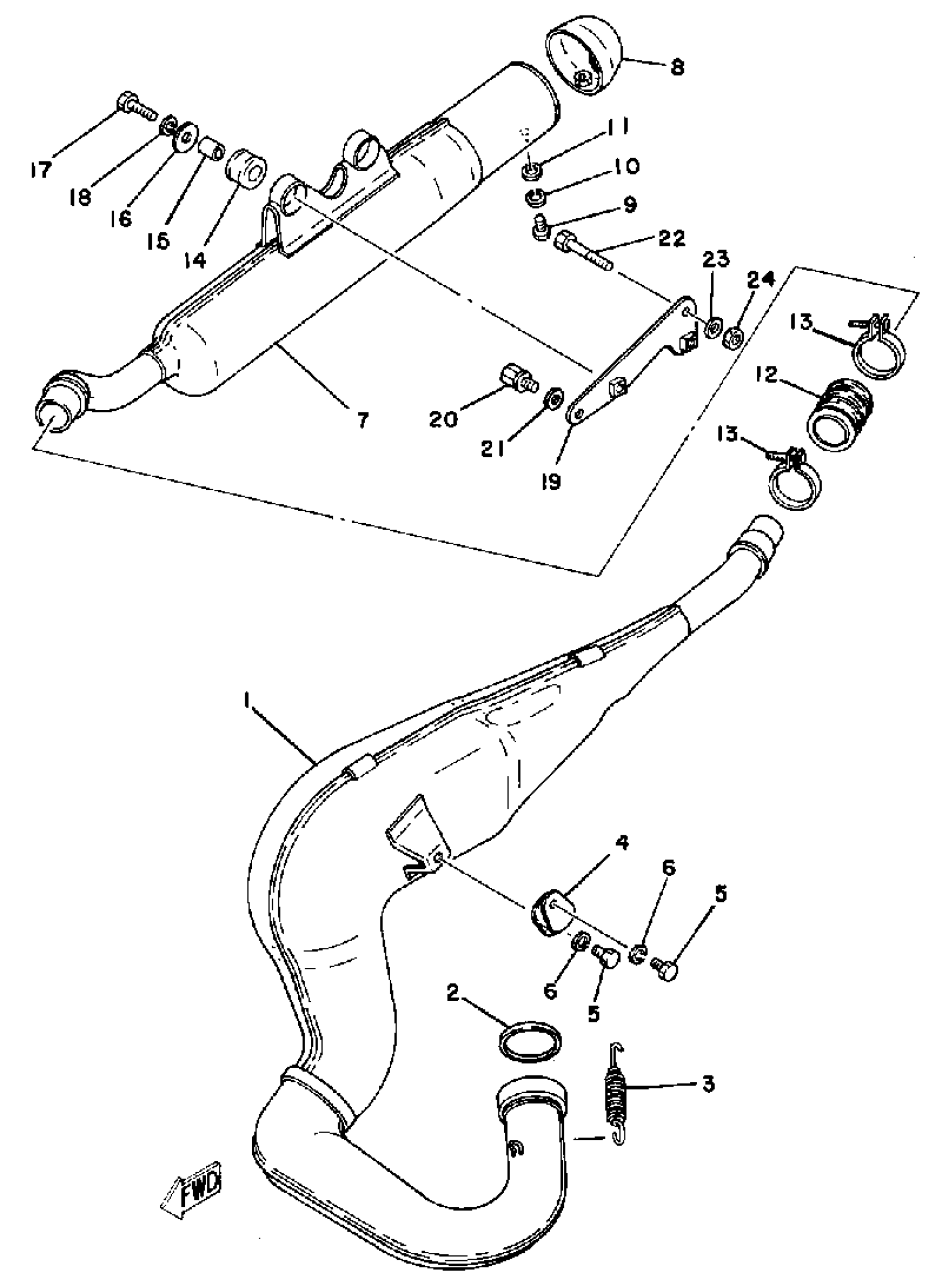

Yamaha IT175H (IT175) 1981 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSEMBLY L
3R6-14610-00-00
Unavailable
6
WASHER, SPRING
92995-06100-00
Unavailable
7
SILENCER, EXHAUST
(3R6-14753-00-00)
Unavailable
8
CAP, SILENCER
1W2-14787-00-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
13
CLAMP, HOSE
90460-37130-00
Unavailable
14
GROMMET
90480-22269-00
Unavailable
15
COLLAR
90387-081A3-00
Unavailable
16
WASHER, PLATE (5J0)
90201-085E6-00
Unavailable
17
BOLT, HEXAGON
97013-08030-00
Unavailable
18
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
19
STAY, MUFFLER 2
3R6-14781-00-00
Unavailable
20
BOLT
90109-08573-00
Unavailable
21
WASHER, PLAIN
92990-08200-00
Unavailable
22
BOLT, HEXAGON
97013-06045-00
Unavailable
23
WASHER, PLATE
90201-06380-00
Unavailable
24
NUT, SELF-LOCKING
95617-06100-00
Unavailable
