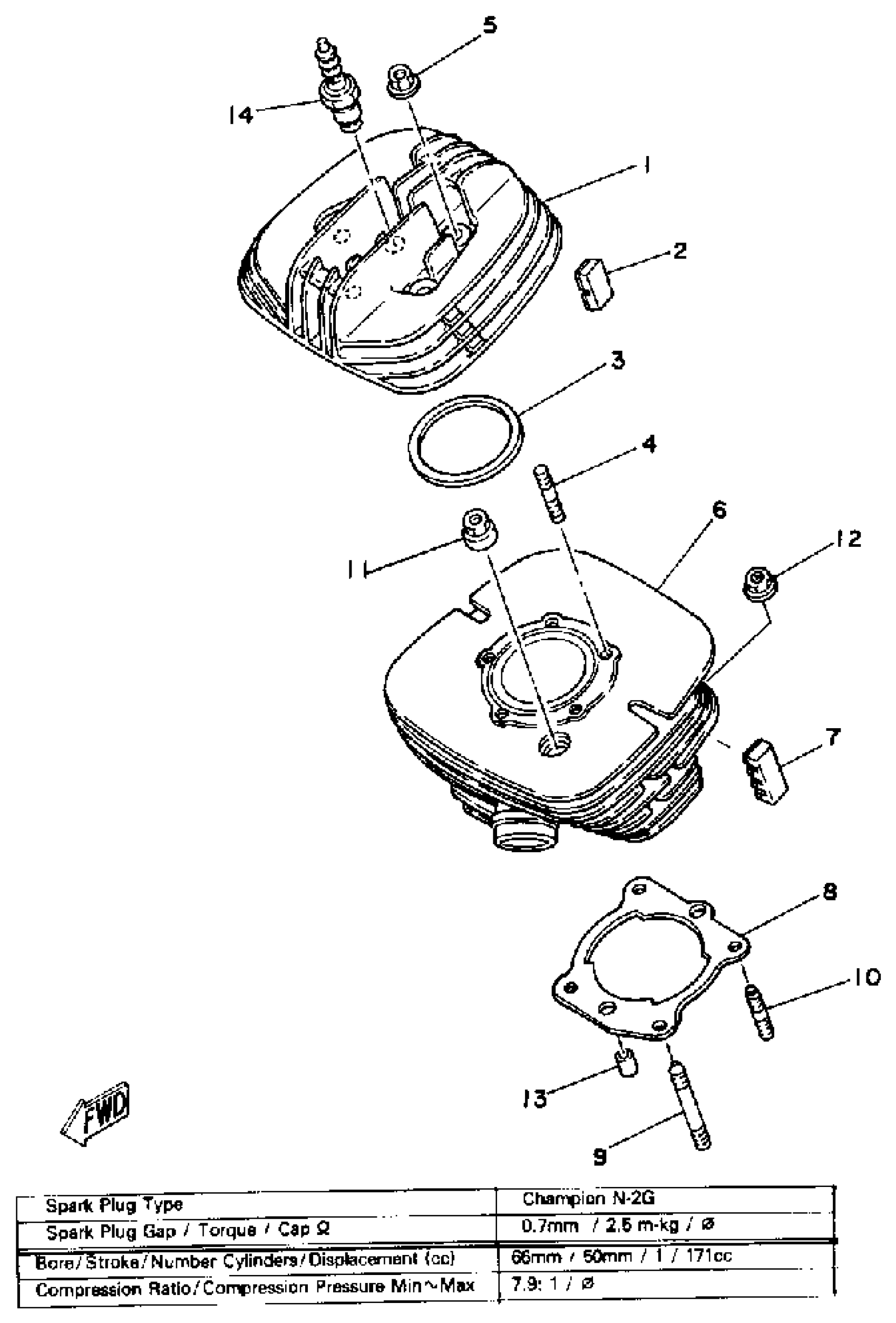

Yamaha IT175H (IT175) 1981 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

3R6-11111-00-00

Unavailable

2

ABSORBER 1

3R6-11161-00-00

Unavailable

3

GASKET, CYLINDER HEAD 1

3R6-11181-00-00

Unavailable

4

BOLT, STUD(3XV)

90116-08564-00

$10.49

5

NUT(55X)

90179-08491-00

$8.49

6

CYLINDER 1

3R6-11311-00-00

Unavailable

7

ABSORBER 2

3R6-11162-00-00

Unavailable

8

GASKET, CYLINDER

3R3-11351-01-00

$24.99

9

BOLT, STUD

90116-08319-00

Unavailable

10

BOLT, STUD (3R3)

90116-08318-00

$7.49

11

NUT (8H8)

90179-08268-00

$10.49

12

NUT(55X)

90179-08491-00

$8.49

13

PIN, DOWEL(3VD)

99530-10114-00

$2.55

14

CHAMPION N2G 10PK

(CMP-N2G00-00-00)

Unavailable
