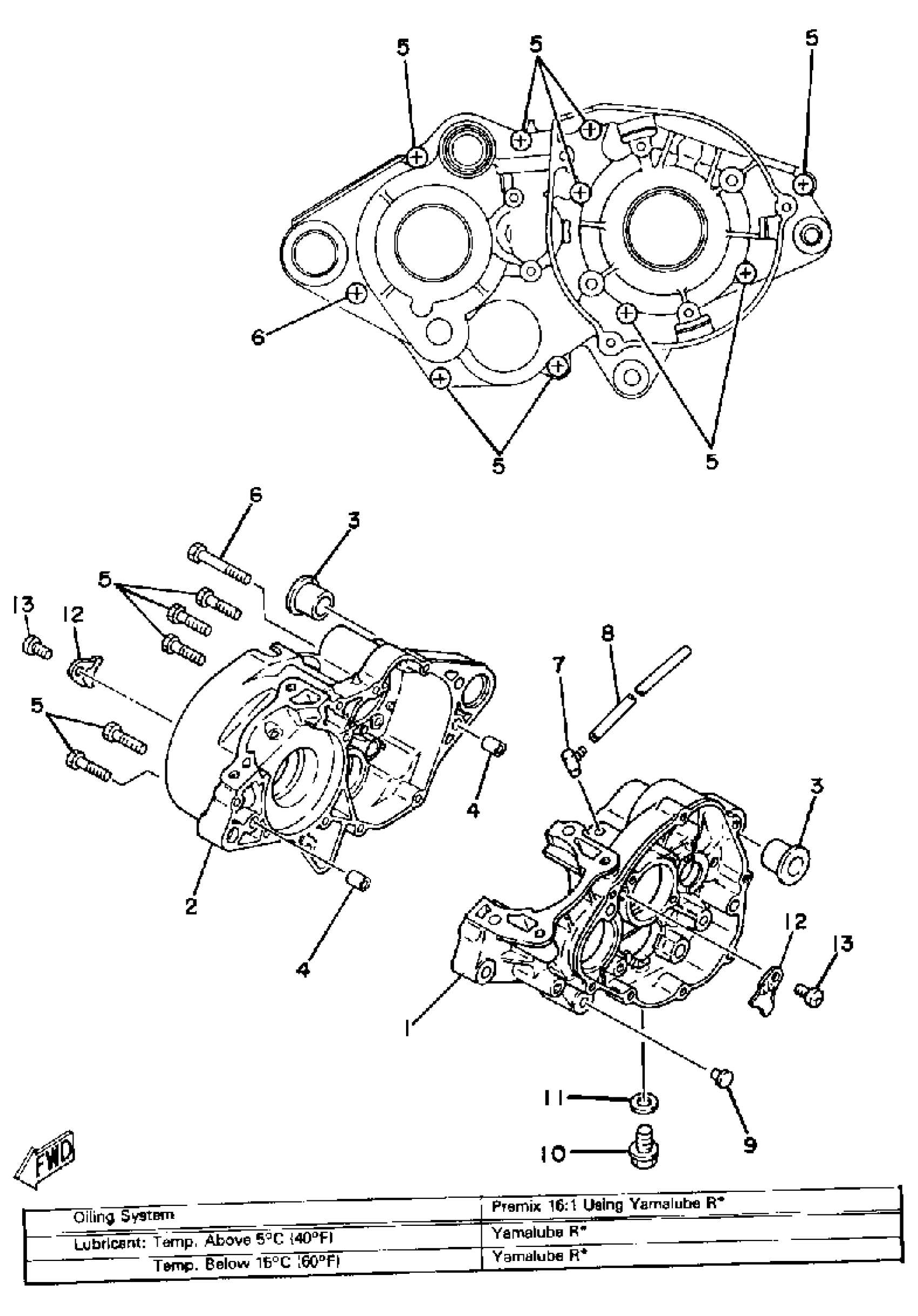

Yamaha IT175H (IT175) 1981 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

(3R3-15111-02-00)

Unavailable

2

CRANKCASE 2 (3R3-15121-01)

3R3-15121-02-00

Unavailable

3

COLLAR

90387-16781-00

Unavailable

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

BOLT,SOCKET

91317-06035-00

Unavailable

6

BOLT,SOCKET

91317-06050-00

$3.88

7

BREATHER

5UG-15371-00-00

$40.99

8

HOSE (L1050)

90445-072G8-00

$29.99

9

PLUG (17J)

90338-07124-00

$10.49

10

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$3.08

11

GASKET (3JD1)

90430-12207-00

$7.99

12

HOLDER

3R3-15128-01-00

Unavailable

13

SCREW, PAN

98507-08010-00

$8.49
