1980 Yamaha IT175 (IT175G) Stand - Footrest Diagram

← All diagrams

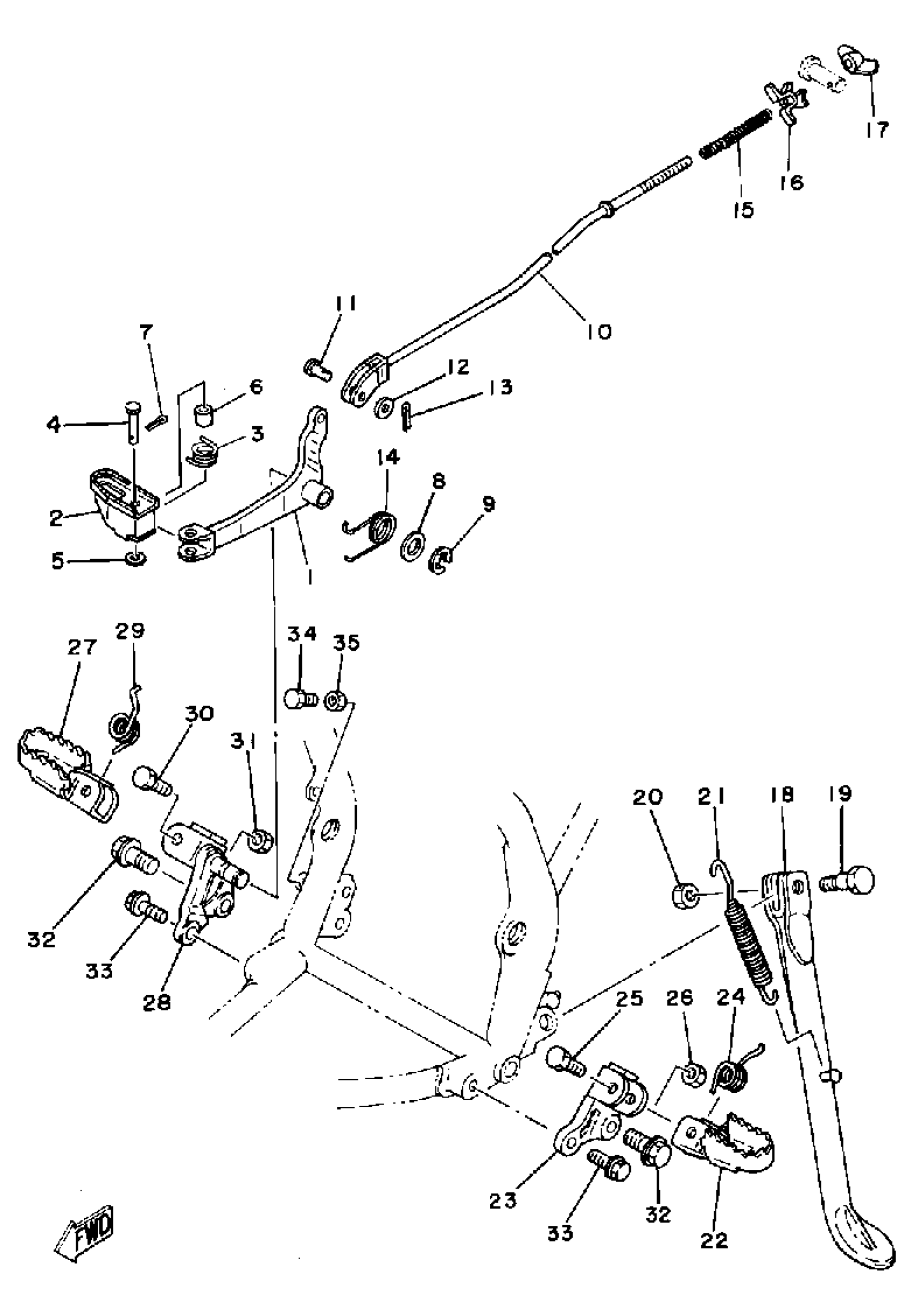

Find the part on the Stand - Footrest diagram for your 1980 Yamaha IT175 (IT175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha IT175 (IT175G) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

(3R6-27211-01-90)

1
Out of stock

2

PEDAL, BRAKE

3R6-27242-00-00

1
Out of stock

3

SPRING, TORSION

90508-20451-00

1
Out of stock

4

PIN, CLEVIS (3R9)

91701-08032-00

—

$2.55

In stock

5

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

6

COLLAR (7G5)

90387-08785-00

1

$6.18

In stock

7

PIN, COTTER

91490-25020-00

1

$2.94

In stock

8

YBS66-12 WASHER,PLAIN

92990-12200-00

1

$6.17

In stock

9

CIRCLIP(J51)

99080-09600-00

1

$1.88

In stock

10

ROD, BRAKE

3R6-27231-00-00

1
Out of stock

11

PIN, CLEVIS (24X)

90240-06103-00

1

$6.45

In stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

PIN, COTTER

91490-20025-00

1

$1.31

In stock

14

SPRING, TORSION

90508-32455-00

1
Out of stock

15

SPRING, (180-27236-00)

90501-10245-00

1

$6.17

In stock

16

SEAT, SPRING

1W2-27239-00-00

1
Out of stock

17

NUT (25K)

90179-06411-00

—

$5.10

In stock

18

STAND, SIDE

1W1-27311-10-00

1
Out of stock

19

BOLT

90109-10473-00

—

$6.71

In stock

20

NUT (682)

95380-10700-00

1

$5.78

In stock

21

SPRING (434)

90507-29008-00

—
Out of stock

22

FOOTREST 1

22W-27411-01-90

—
Out of stock

23

BRACKET, FOOTREST 1

3R3-27412-00-00

1
Out of stock

24

—

$3.26

In stock

25

BOLT (2W6)

90101-08428-00

—

$2.37

In stock

26

NUT, U

95617-08100-00

—

$6.78

In stock

27

FOOTREST 2

22W-27421-01-90

—

$29.63

In stock

28

BRACKET, FOOTREST 2

(3R6-27422-00-00)

1
Out of stock

29

—

$3.26

In stock

30

BOLT (2W6)

90101-08428-00

—

$2.37

In stock

31

NUT, U

95617-08100-00

—

$6.78

In stock

32

BOLT, WASHER BASED

90105-12096-00

1
Out of stock

33

BOLT, FLANGE

95817-10020-00

—

$6.17

In stock

34

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

35

NUT(650)

95380-06700-00

—

$6.17

In stock
