1980 Yamaha IT175 (IT175G) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1980 Yamaha IT175 (IT175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

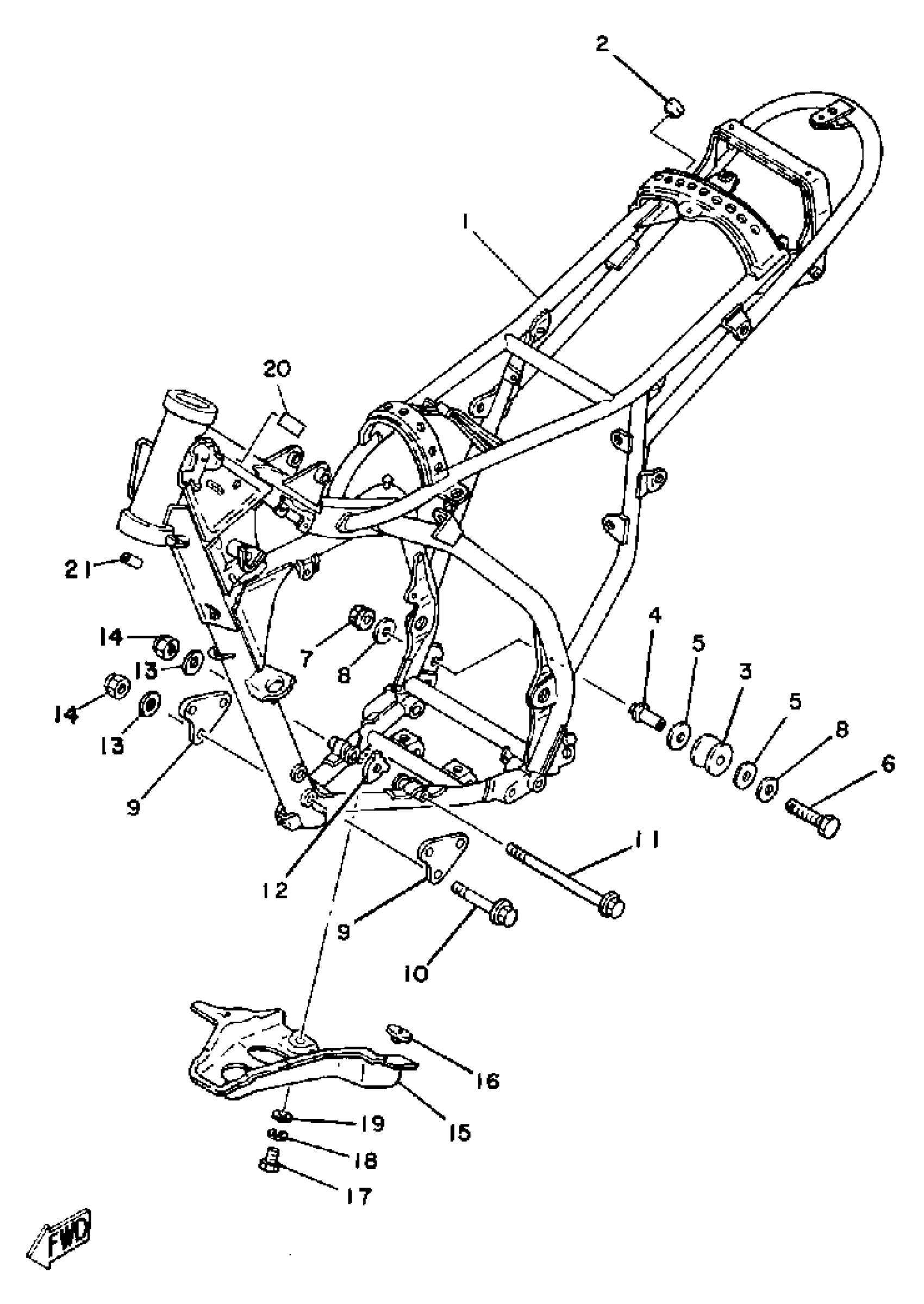

1980 Yamaha IT175 (IT175G) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(3R6-21110-01-33)

1
Out of stock

2

PLUG (2K5)

90339-13005-00

1

$3.57

In stock

3

TENSIONER

2K6-22178-00-00

1
Out of stock

4

SHAFT

3R3-2148A-00-00

1
Out of stock

5

WASHER, PLATE

90201-13013-00

1

$6.29

In stock

6

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

7

NUT, NYLON

95717-08300-00

1

$2.57

In stock

8

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

9

BRACKET, FRT UPR 1

3R3-21415-00-00

1
Out of stock

10

BOLT, FLANGE

95817-08075-00

1

$3.37

In stock

11

BOLT, FLANGE

95817-08160-00

1
Out of stock

12

WASHER, CLAW

90214-09019-00

1
Out of stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

14

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

15

PROTECTOR, ENGINE

(3R6-21471-00-00)

1
Out of stock

16

SEAL, RIGHT SIDE COVER

2J5-21732-00-00

—
Out of stock

17

BOLT, HEXAGON

97017-08016-00

—
Out of stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

20

COVER

(3R4-2139W-00-00)

1
Out of stock

21

HOSE

(90446-11173-00)

1
Out of stock
