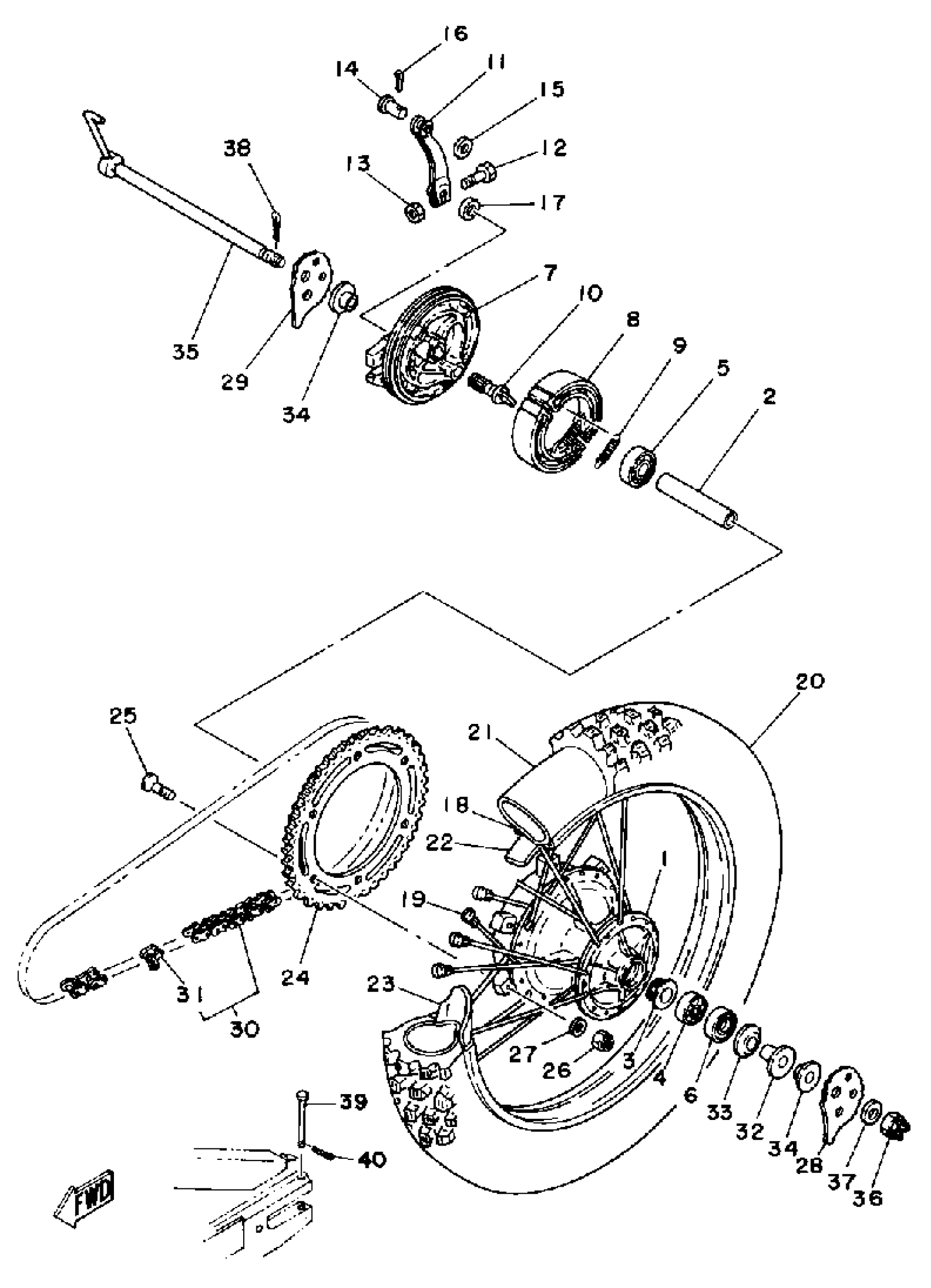

Yamaha IT175G (IT175) 1980 REAR WHEEL Diagram

#

Description
Price

1

HUB REAR (3R3-25311-00-98)

99999-01159-00

Unavailable

2

SPACER, BEARING

3R3-25317-00-00

Unavailable

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING

93306-20205-00

$38.99

5

BEARING

93306-30212-00

$40.99

6

OIL SEAL, DD-TYPE

93106-22017-00

Unavailable

7

PLATE BRAKE SHOE

99999-02405-00

Unavailable

8

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

9

SPRING (5T9)

90506-17328-00

Unavailable

10

CAMSHAFT

26A-25351-00-00

Unavailable

11

LEVER, CAMSHAFT

3R6-25355-01-00

Unavailable

12

BOLT, HEXAGON (538)

90101-06278-00

$2.17

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

PIN, CLEVIS

3R6-27237-00-00

Unavailable

15

WASHER, PLATE (583)

90201-12631-00

$9.49

16

PIN, COTTER(6L5)

91490-25030-00

Unavailable

17

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

18

RIM 1.85X18

94418-18245-00

Unavailable

19

SPOKE SET, REAR

537-25304-01-00

Unavailable

20

410-18 MARK 2 (TT)

(94141-18655-00)

Unavailable

21

TUBE (2RH)

94232-18113-00

Unavailable

22

BAND, RIM (2J4)

94340-18086-00

Unavailable

23

SPACER, BEAD

2X3-25394-00-00

Unavailable

24

SPROCKET, DRIVEN (42T)

26A-25442-51-00

Unavailable

24

SPROCKET, DRIVEN

26A-25444-51-00

Unavailable

24

SPROCKET, DRIVEN

26A-25446-51-00

Unavailable

25

BOLT, HEX SKT HEAD

90110-08038-00

Unavailable

26

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

27

WASHER, PLAIN

92990-08200-00

Unavailable

28

PULLER, CHAIN (L.H)

1W2-25388-01-00

Unavailable

29

PULLER, CHAIN (R.H)

1W2-25389-01-00

Unavailable

30

520D5-100L DID (94515-20100)

9Y585-20099-00

Unavailable

31

JOINT, CHAIN

94681-68001-00

Unavailable

32

COLLAR

90387-152A3-00

Unavailable

33

COVER, HUB DUST

3R3-25367-00-00

Unavailable

34

BUSH, SOLID

90381-15034-00

Unavailable

35

AXLE, WHEEL

3R6-25381-00-00

Unavailable

36

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

37

WASHER (525)

90201-15238-00

Unavailable

38

PIN, COTTER

91490-30030-00

Unavailable

39

PIN,CLEVIS

91701-06055-00

Unavailable

40

PIN, COTTER

91490-20025-00

Unavailable
