CRANKSHAFT - PISTON

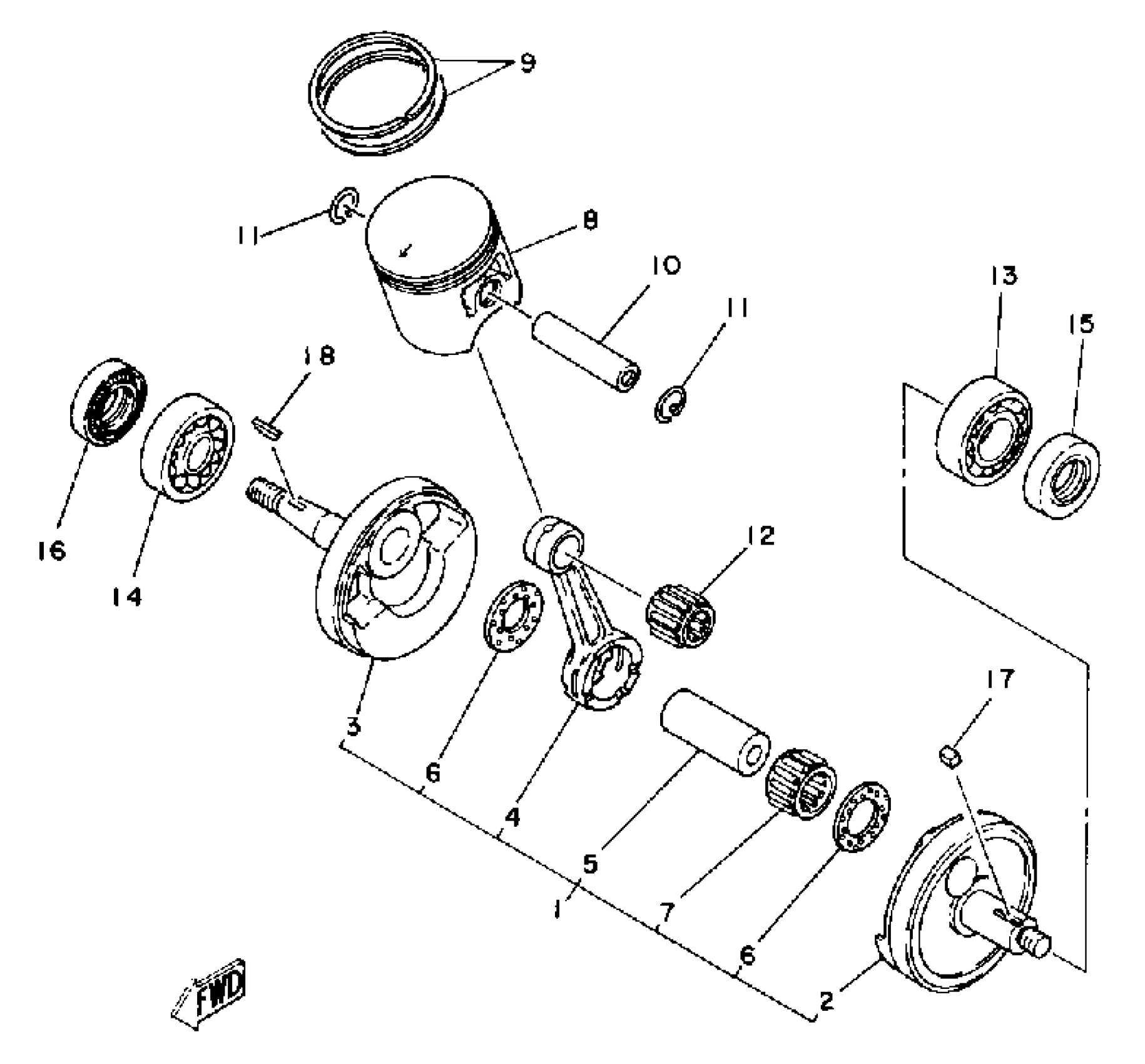

Yamaha IT175G (IT175) 1980 CRANKSHAFT - PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSEMBLY
3R6-11400-00-00
Unavailable
2
. CRANK 1
3R3-11412-00-00
Unavailable
3
. CRANK 2
3R6-11422-00-00
Unavailable
4
. ROD, CONNECTING
3R2-11651-01-00
Unavailable
6
WASHER (29L)
90209-22248-00
Unavailable
7
BEARING (3R3)
93310-422H0-00
Unavailable
8
PISTON STD
3R6-11631-00-96
Unavailable
8
PISTON 1 O/S 0.25
3R6-11635-00-00
Unavailable
8
PISTON 2 O/S 0.50
3R6-11636-00-00
Unavailable
8
PISTON 3 O/S 0.75
3R6-11637-00-00
Unavailable
8
PISTON 4 O/S 1.00
3R6-11638-00-00
Unavailable
9
PISTON RING SET (0.25MM O/S)
3JM-11601-10-00
Unavailable
9
PISTON RING SET (0.50MM O/S)
3JM-11601-20-00
Unavailable
9
PISTON RINGSET 3RD
43G-11601-30-00
Unavailable
9
PISTON RINGSET 4TH
43G-11601-40-00
Unavailable
10
PIN, PISTON
251-11633-00-00
Unavailable
11
CIRCLIP (137-11634-00)
93450-17025-00
Unavailable
12
BRG,CYL-CAL ROLLER 14-7G KY
93310-216E1-00
Unavailable
13
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
14
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
15
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
16
OIL SEAL, SD-TYPE
93102-25258-00
Unavailable
17
KEY, STRAIGHT
90282-05038-00
Unavailable
18
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
