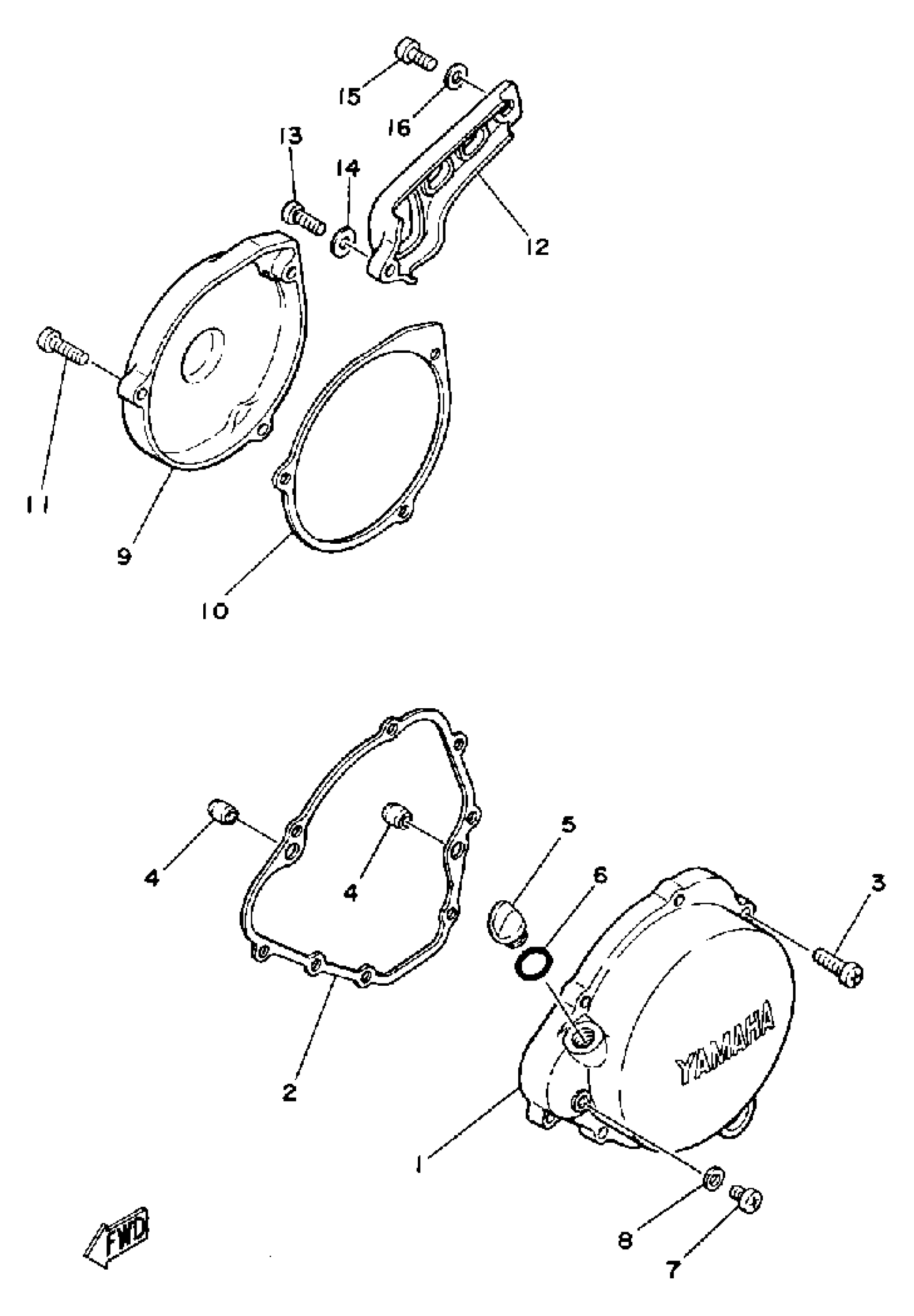

Yamaha IT175G (IT175) 1980 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

3R3-15411-01-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3R3-15451-02-00

$36.64

3

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

4

PIN, DOWEL(3VD)

99530-10114-00

$2.13

5

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

6

O-RING (26H)

93210-14579-00

$5.05

7

SCREW, PAN

98517-06008-00

$6.22

8

GASKET 838153840000

90430-06016-00

$5.76

9

COVER, CRANKCASE R

3R6-15421-00-00

Unavailable

10

GASKET 1 (3R3-15455-00)

3R6-15455-00-00

Unavailable

11

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

12

COVER, CRANKCASE 3

55Y-15431-00-00

Unavailable

13

SCREW, PAN

98507-06014-00

$5.76

14

WASHER, PLATE

90201-06380-00

$0.54

15

SCREW PAN HEAD

98580-06020-00

$4.89

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
