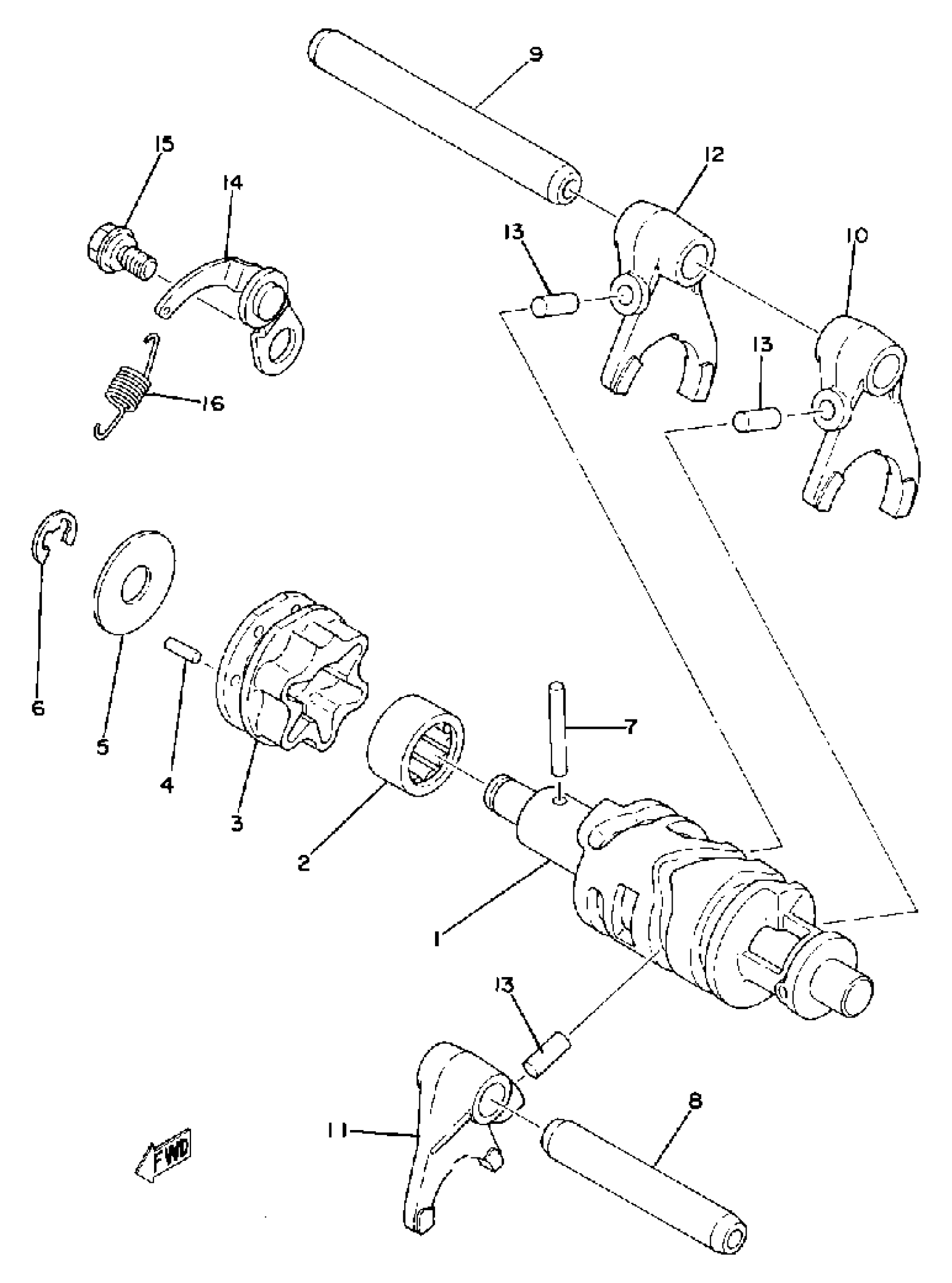

Yamaha IT175F (IT175) 1979 SHIFTER 1 Diagram

SHIFT CAM ASSEMBLY

(2W6-18540-00-00)

Unavailable

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$36.99

SEGMENT, SHIFT CAM

1W1-18185-00-00

Unavailable

PIN,DOWEL (168)

93604-12037-00

$8.49

PLATE, SIDE

1W1-18561-00-00

$6.99

CIRCLIP(2R6)

99001-08600-00

$8.49

PIN,DOWEL (611)

93604-30018-00

$2.44

BAR, SHIFT FORK GUIDE 1

2A6-18531-00-00

Unavailable

BAR, SHIFT FORK GUID 2

2A6-18535-00-00

Unavailable

FORK, SHIFT 1

2W6-18511-00-00

Unavailable

FORK, SHIFT 2

2W6-18512-00-00

Unavailable

FORK, SHIFT 3

2W6-18513-00-00

Unavailable

PIN STRAIGHT 257185520000

90250-06013-00

$9.49

STOPPER LEVER ASSY

1W1-18140-00-00

Unavailable

BOLT

90109-06190-00

$4.72

SPRING, TENSION (1W1)

90506-09156-00

Unavailable
