1979 Yamaha IT175 (IT175F) Rear Cushion Diagram

← All diagrams

Find the part on the Rear Cushion diagram for your 1979 Yamaha IT175 (IT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

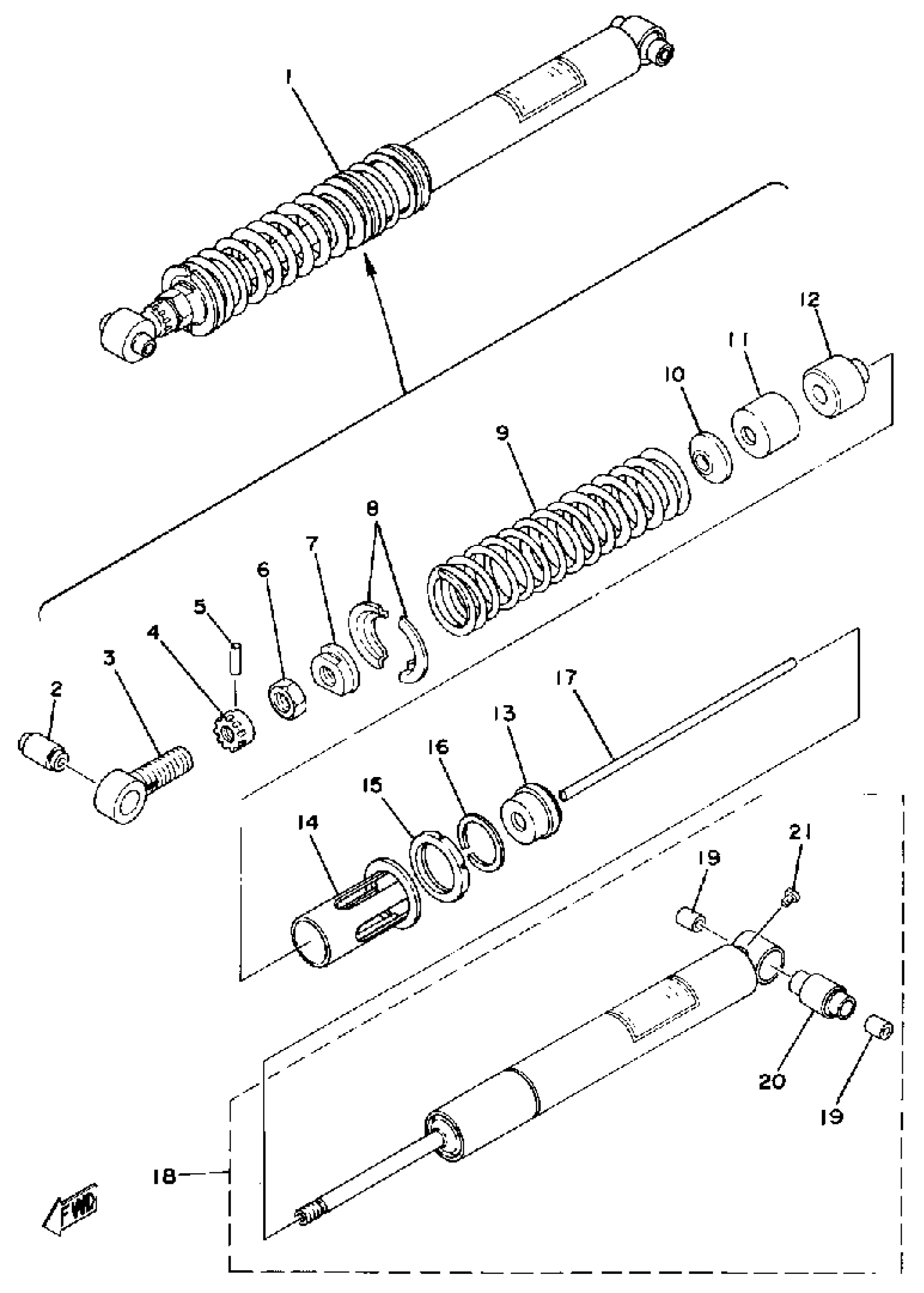

1979 Yamaha IT175 (IT175F) Rear Cushion Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHK/ABS ASSEMBLY, REAR

(2W6-22210-00-00)

1
Out of stock

2

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

—

$40.54

In stock

3

BRACKET, UPPER

(1W1-22219-00-00)

1
Out of stock

4

NUT, ADJUSTING

(1W1-22497-00-00)

1
Out of stock

5

. PIN, DOWEL

93604-26132-00

1
Out of stock

6

NUT, HEXAGON (29L)

90170-20320-00

1
Out of stock

7

SEAT, SPRING UPPER

(2K6-22213-00-00)

1
Out of stock

8

. GUIDE, SPRING 1

2K6-22214-00-00

1
Out of stock

9

SPRING, COMPRESSION

(90501-95550-00)

1
Out of stock

9

. NO LONGER AVAILABLEKK=263KG/MMK=404KG/MM)

90501-98538-00

1
Out of stock

9

SPRING, COMPRESSION

(90501-99539-00)

1
Out of stock

10

SUPPORT, BUMP STOP

(2W6-22228-00-00)

1
Out of stock

11

COVER

(2W6-22221-00-00)

1
Out of stock

12

BUMP, STOP

(2W6-22493-00-00)

1
Out of stock

13

CAP, CASE

(1W1-22472-00-00)

1
Out of stock

14

GUIDE, SPRING 2

(1W1-22224-00-00)

1
Out of stock

15

SEAT, SPRING LOWER

(1W1-22223-00-00)

1
Out of stock

16

CIRCLIP, OUTER

(93440-50058-00)

1
Out of stock

17

ROD, PUSH

(2W6-22489-00-00)

1
Out of stock

18

DAMPER SUB-ASSEMBLY.

(2W6-22401-00-00)

1
Out of stock

19

BUSH, SOLID (1M1)

90380-12051-00

—
Out of stock

20

.. BUSH, SHOCK ABS LWR

1W1-22226-00-00

1
Out of stock

21

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
