1979 Yamaha IT175 (IT175F) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1979 Yamaha IT175 (IT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

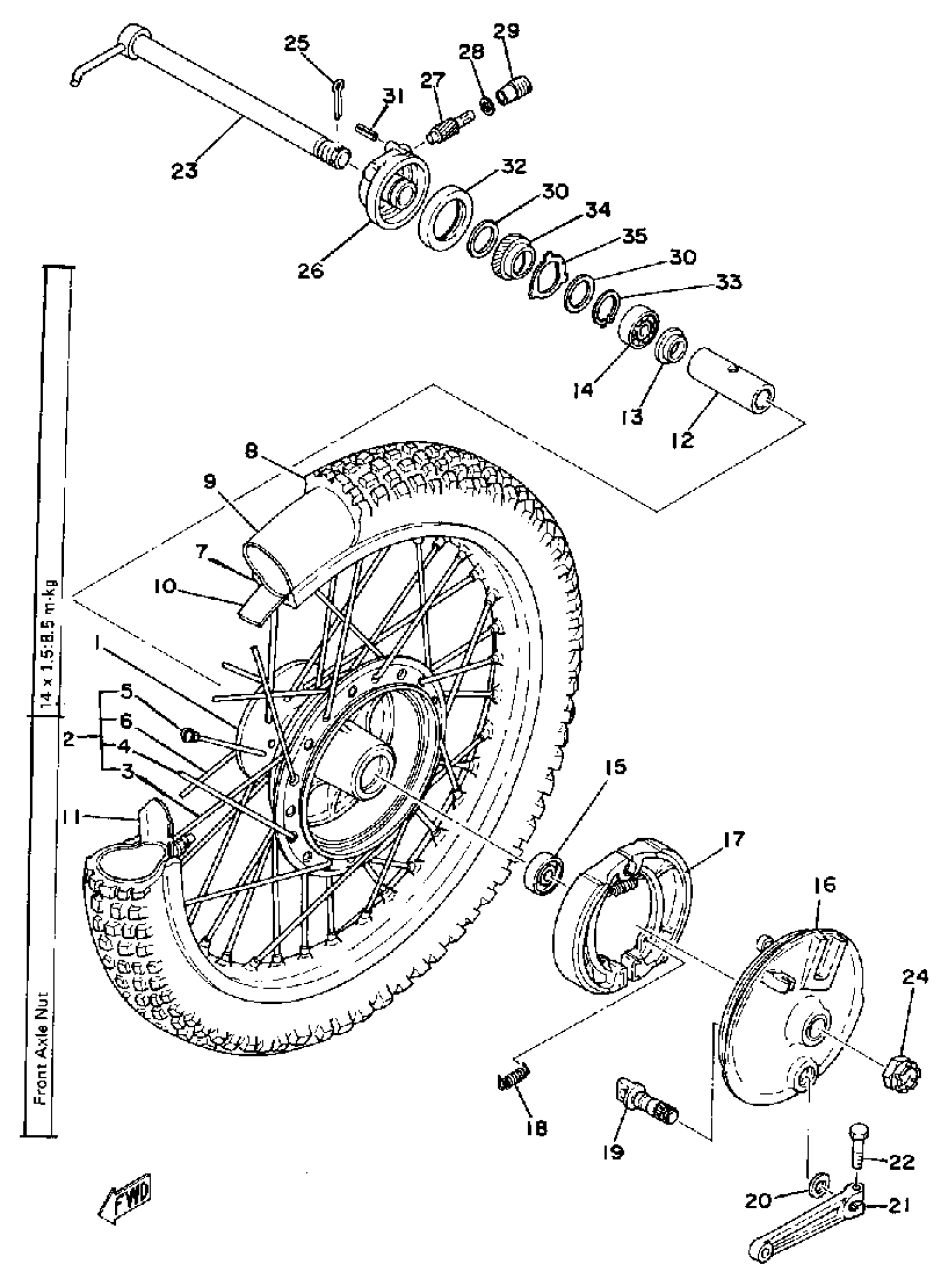

1979 Yamaha IT175 (IT175F) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1K7-25111-10-98

1
Out of stock

2

SPOKE SET, FRONT

2W6-25104-02-00

1
Out of stock

3

SPOKE SET, INNER 1

(2W6-25196-90-00)

1
Out of stock

4

SPOKE SET, OUTER 1

(2W6-25197-90-00)

1
Out of stock

5

SPOKE SET, INNER 2

(2W6-25179-90-00)

1
Out of stock

6

SPOKE SET, OUTER 2

(2W6-25189-90-00)

1
Out of stock

7

RIM 1.60X21

94416-21326-00

1
Out of stock

8

300-21 M1B (TT)

(94130-213A4-00)

1
Out of stock

9

TUBE

94230-21126-00

1
Out of stock

10

BAND, RIM

(94330-21088-00)

1
Out of stock

11

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

12

SPACER

90560-15116-00

1
Out of stock

13

FLANGE, SPACER

146-25116-00-00

1
Out of stock

14

BEARING

93306-20205-00

1

$32.63

In stock

15

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

16

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

1W1-25016-11-98

1
Out of stock

17

BRAKE SHOE KIT

322-W253A-10-00

—

$31.99

In stock

18

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

19

CAMSHAFT

23X-25151-00-00

1
Out of stock

20

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

21

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

22

BOLT, HEXAGON (462)

90101-06291-00

—

$6.68

In stock

23

AXLE, WHEEL

1W2-25181-02-00

1
Out of stock

24

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

25

PIN, COTTER

91490-30030-00

—

$7.15

In stock

26

GEAR UNIT ASSY

3XP-25190-00-00

—
Out of stock

27

GEAR, METER

1W2-25138-00-00

1
Out of stock

28

SHIM, ROD

102-18416-00-00

1
Out of stock

29

BUSH

306-25136-00-00

1
Out of stock

30

WASHER PLATE 214251470000

90201-22283-00

—

$5.38

In stock

31

PIN, SPRING (V60)

91609-20014-00

—

$1.78

In stock

32

OIL SEAL(3BC)

93106-40027-00

—

$13.22

In stock

33

CIRCLIP(1EY)

99009-22400-00

—

$6.17

In stock

34

GEAR, DRIVE

1W2-25135-00-00

1
Out of stock

35

CLUTCH, METER

1K7-25149-00-00

1
Out of stock
