1979 Yamaha IT175 (IT175F) Crankcase-Cylinder Diagram

← All diagrams

Find the part on the Crankcase-Cylinder diagram for your 1979 Yamaha IT175 (IT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

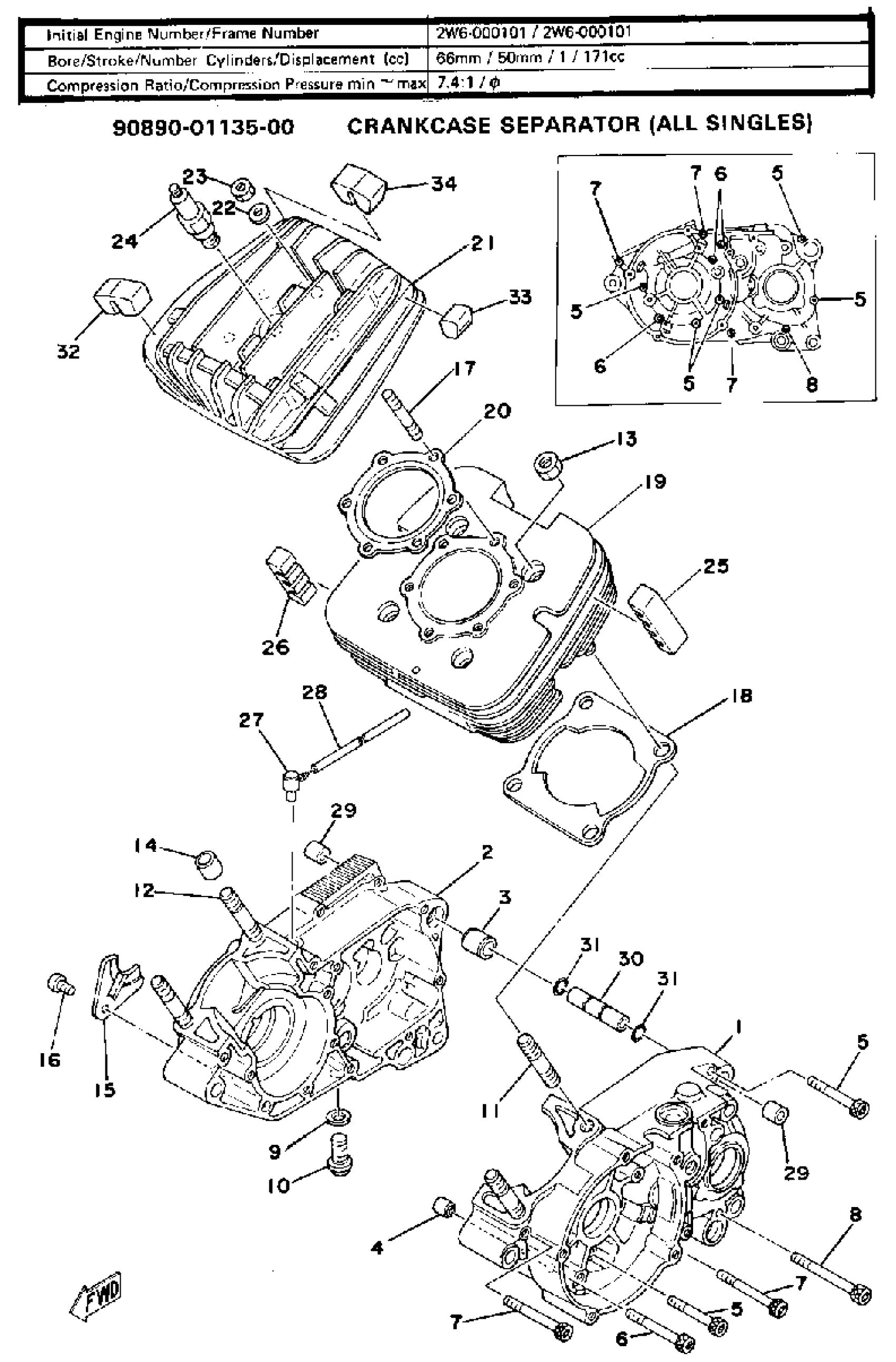

1979 Yamaha IT175 (IT175F) Crankcase-Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

1W2-15111-02-00

1
Out of stock

2

CRANKCASE 2 (1W2-15121-01)

1W2-15121-02-00

1
Out of stock

3

PIN, DOWEL

99530-20020-00

1
Out of stock

4

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

5

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

6

BOLT,SOCKET

91317-06060-00

1
Out of stock

7

BOLT, SOCKET

91317-06070-00

1

$3.46

In stock

8

BOLT, SOCKET

91317-06075-00

1
Out of stock

9

GASKET (3JD1)

90430-12207-00

1

$6.77

In stock

10

1

$6.71

In stock

11

BOLT, STUD

90116-10257-00

1
Out of stock

12

BOLT, STUD

90116-10258-00

1
Out of stock

13

NUT

90179-10021-00

1

$21.54

In stock

14

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

15

HOLDER (R.H)

304-15128-00-00

1

$5.80

In stock

16

SCREW, PAN

98507-08010-00

—
Out of stock

17

BOLT STUD 363111790000

90116-08104-00

—

$14.38

In stock

18

GASKET, CYLINDER

3TN-11351-00-00

—

$13.11

In stock

19

CYLINDER 1

2W6-11311-00-00

1
Out of stock

20

GASKET, CYLINDER HEAD

1W2-11181-00-00

—

$15.04

In stock

21

HEAD, CYLINDER 1

1W2-11111-00-00

1
Out of stock

22

WASHER, PLATE (397)

90201-08100-00

—

$6.17

In stock

23

NUT(6L2)

95333-08600-00

—

$3.20

In stock

24

CHAMPION N2G 10PK

(CMP-N2G00-00-00)

1
Out of stock

25

ABSORBER 3

2A6-11127-00-00

1
Out of stock

26

ABSORBER 3

2A6-11127-00-00

1
Out of stock

27

BREATHER

5UG-15371-00-00

—

$33.79

In stock

28

HOSE (L1050)

90445-072G8-00

—

$23.46

In stock

29

DAMPER

90388-08003-00

—

$16.29

In stock

30

SPACER, ENGINE MOUNT

401-15317-00-00

—

$12.20

In stock

31

O-RING (P95)

93210-11073-00

—
Out of stock

32

ABSORBER 1

1W2-11161-00-00

1
Out of stock

33

ABSORBER 2

(1W2-11162-00-00)

1
Out of stock

34

ABSORBER 3

(1W2-11127-00-00)

1
Out of stock
