1979 Yamaha IT175 (IT175F) Crank-Piston Diagram

← All diagrams

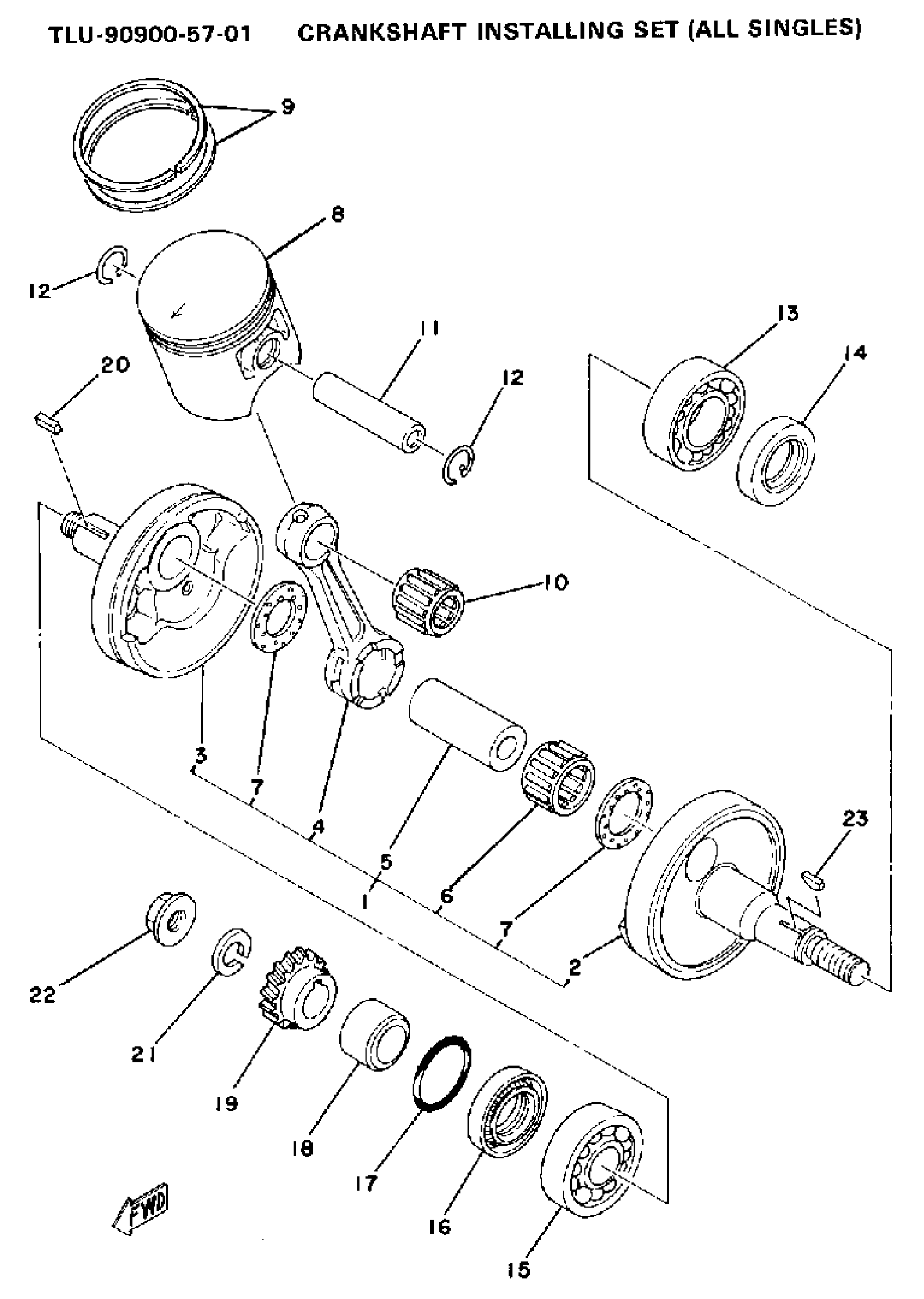

Find the part on the Crank-Piston diagram for your 1979 Yamaha IT175 (IT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha IT175 (IT175F) Crank-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY (1W1-11400-01)

2K5-11400-00-00

1
Out of stock

2

CRANK (L.H)

1W1-11412-01-00

—

$257.00

In stock

3

CRANK (R.H)

1W1-11422-01-00

—

$132.11

In stock

4

. ROD, CONNECTING

3R2-11651-01-00

1
Out of stock

5

PIN, CRANK 1

3M5-11681-00-00

1

$21.97

In stock

6

BEARING (3R3)

93310-422H0-00

—

$53.23

In stock

7

WASHER (29L)

90209-22248-00

—
Out of stock

8

PISTON 1 O/S 0.25

2W6-11635-00-00

1
Out of stock

8

PISTON 4 O/S 1.00

2W6-11638-00-00

1
Out of stock

8

PISTON STD

3R6-11631-00-96

1
Out of stock

8

PISTON 2 O/S 0.50

3R6-11636-00-00

1
Out of stock

8

PISTON 3 O/S 0.75

3R6-11637-00-00

1
Out of stock

9

PISTON RING SET (STD)

3JM-11601-00-00

1
Out of stock

9

PISTON RING SET (0.25MM O/S)

3JM-11601-10-00

—
Out of stock

9

PISTON RING SET (0.50MM O/S)

3JM-11601-20-00

—
Out of stock

9

PISTON RINGSET 3RD

43G-11601-30-00

1
Out of stock

9

PISTON RINGSET 4TH

43G-11601-40-00

1
Out of stock

10

—

$23.03

In stock

11

PIN, PISTON

251-11633-00-00

—

$23.85

In stock

12

CIRCLIP (137-11634-00)

93450-17025-00

—

$6.17

In stock

13

—

$35.25

In stock

14

OIL SEAL (5V6)

93103-25125-00

—

$23.23

In stock

15

—

$54.91

In stock

16

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

17

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

18

COLLAR, DISTANCE (525)

90387-20488-00

—

$21.72

In stock

19

GEAR, PRI DRIVE

1W1-16111-00-00

1
Out of stock

20

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock

21

WASHER, SPRING (1W1)

90204-12007-00

—

$6.92

In stock

22

NUT(1EE)

90179-12659-00

—

$5.37

In stock

23

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock
