1979 Yamaha IT175 (IT175F) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1979 Yamaha IT175 (IT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

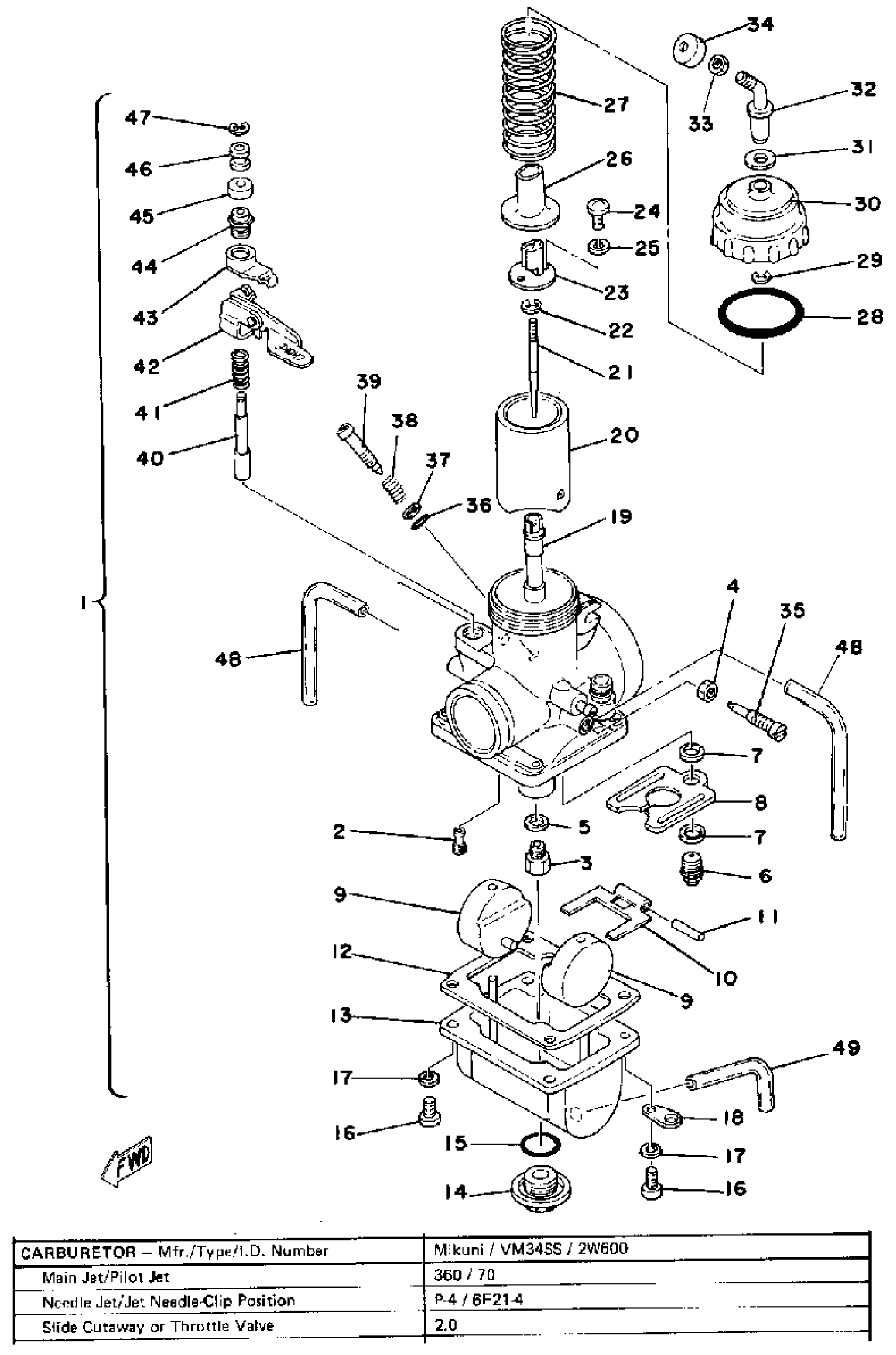

1979 Yamaha IT175 (IT175F) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(2W6-14101-00-00)

1
Out of stock

2

JET, PILOT (# 70)

193-14142-70-00

1
Out of stock

3

JET,MAIN #350

137-14143-70-00

1

$5.93

In stock

3

JET,MAIN #360

137-14143-72-00

1
Out of stock

3

JET,MAIN #370

137-14143-74-00

1
Out of stock

4

NUT, WIRE ADJUSTING

802-14161-00-00

1

$6.65

In stock

5

WASHER, MAIN JET

(1G8-14153-00-00)

1
Out of stock

6

NEEDLE VALVE SET

24X-14107-33-00

1

$44.94

In stock

7

WASHER,VALVE SEAT

239-14195-00-00

—

$11.47

In stock

8

. PLATE

483-14146-00-00

1
Out of stock

9

. FLOAT

310-14185-00-00

1
Out of stock

10

. ARM, FLOAT

310-14187-00-00

1
Out of stock

11

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

12

GASKET, FLOAT CHAMBER

483-14184-00-00

1

$17.72

In stock

13

BODY, FLOAT CHAMBER 1

(310-14181-16-00)

1
Out of stock

14

PLUG, SCREW

500-14115-00-00

—

$25.29

In stock

15

O-RING (541)

558-14147-00-00

—
Out of stock

16

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

. PLATE

313-14146-00-00

1
Out of stock

19

. NOZZLE, MAIN P-4

239-14141-44-00

1
Out of stock

20

VALVE, THROTTLE 1

(509-14112-20-00)

1
Out of stock

21

. NEEDLE (6F21-3)

239-14116-21-00

1
Out of stock

22

CLIP

3FA-14137-00-00

—

$6.80

In stock

23

. CONNECTOR

509-14274-00-00

1
Out of stock

24

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

25

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

26

. SEAT, SPRING

509-14136-00-00

1
Out of stock

27

. SPRING, THROTTLE VALVE

363-14131-00-00

1
Out of stock

28

. O-RING

93210-40289-00

1
Out of stock

29

CLIP

363-14137-00-00

—

$9.95

In stock

30

. TOP, MIXING CHAMBER (500-14158-00-33)

500-14158-00-00

1
Out of stock

31

GASKET

509-14198-00-00

—

$16.34

In stock

32

. GUIDE, CABLE

500-14155-00-00

1
Out of stock

33

NUT, WIRE ADJUSTING

127-14161-00-00

—

$7.20

In stock

34

CAP

3X3-14169-00-00

—

$15.20

In stock

35

THROTTLE SCREW SET

40T-14103-00-00

—

$15.58

In stock

36

. O-RING

6K8-14562-00-00

1

$1.91

In stock

37

WASHER,NEEDLE

812-14235-00-00

1
Out of stock

38

. SPRING, AIR ADJUSTING

137-14134-00-00

1
Out of stock

39

. SCREW, AIR ADJUSTING

1G8-14123-00-00

1
Out of stock

40

. PLUNGER, STARTER

1W1-14171-00-00

1
Out of stock

41

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

42

. LEVER, STARTER 1

1W1-14175-01-00

1
Out of stock

43

. PLATE, STARTER LEVER

275-14178-00-00

1
Out of stock

44

. CAP, PLUNGER

802-14174-00-00

1
Out of stock

45

. COVER, PLUNGER CAP

802-14173-00-00

1
Out of stock

46

. RING

583-14918-00-00

1
Out of stock

47

. CLIP

737-14137-00-00

1
Out of stock

48

HOSE

89A-14987-00-00

—

$12.62

In stock

49

PIPE, OVER FLOW

2J2-14196-00-00

—

$30.20

In stock
