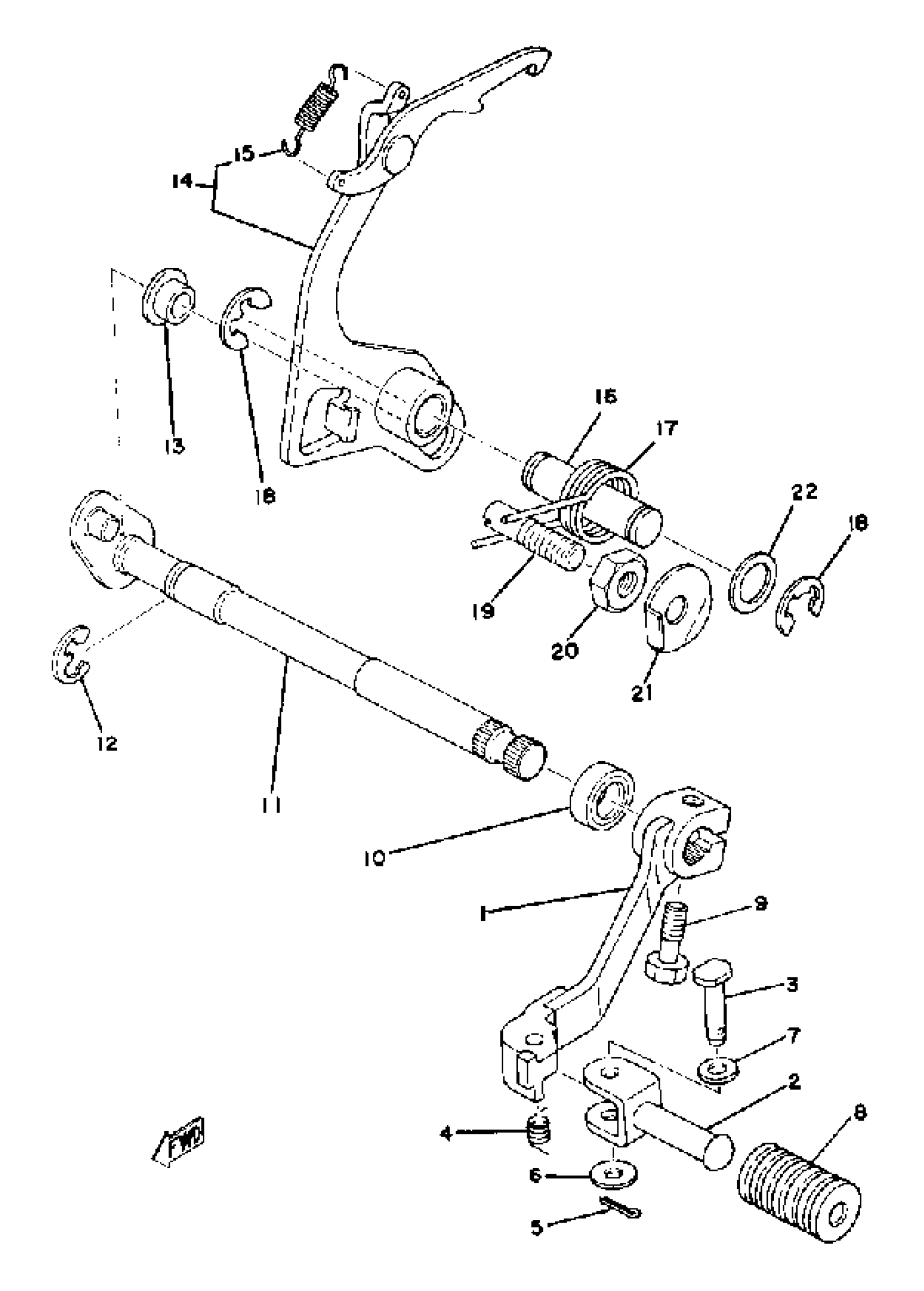

Yamaha IT175D (IT175) 1977 SHIFTER 2 Diagram

#

Description
Price

1

SHIFT PEDAL ASSY

2HF-18110-02-00

$53.99

2

PEDAL, SHIFT

1W6-18162-00-00

Unavailable

3

PIN, CLEVIS

90240-06057-00

Unavailable

4

SPRING, TORSION

90508-16351-00

Unavailable

5

PIN, COTTER

91490-20025-00

$1.99

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

OIL SEAL

93101-12173-00

$13.49

11

. SHIFT SHAFT ASSEMBLY 1

1W1-18101-03-00

Unavailable

11

CIRCLIP

99006-10600-00

$9.49

11

CHANGE SHAFT1W101 (1W1-18101-01)

99999-01086-00

Unavailable

12

CIRCLIP

99006-10600-00

$9.49

13

ROLLER, CHANGE LEVER

401-18178-00-00

$19.99

14

SHIFT LEVER ASSY

4F2-18120-00-00

Unavailable

15

SPRING, TENSION (1W1)

90506-08155-00

Unavailable

16

SHAFT, CHANGE STOPPER SPRING

1W1-18197-01-00

Unavailable

17

SPRING, TORSION (1W1)

90508-32349-00

Unavailable

18

CIRCLIP

99006-10600-00

$9.49

19

SCREW (1W1)

90149-08111-00

Unavailable

20

NUT (583)

90170-08193-00

Unavailable

21

WASHER LOCK 248181390000

90215-08014-00

Unavailable

22

WASHER (692)

90201-12M34-00

Unavailable
