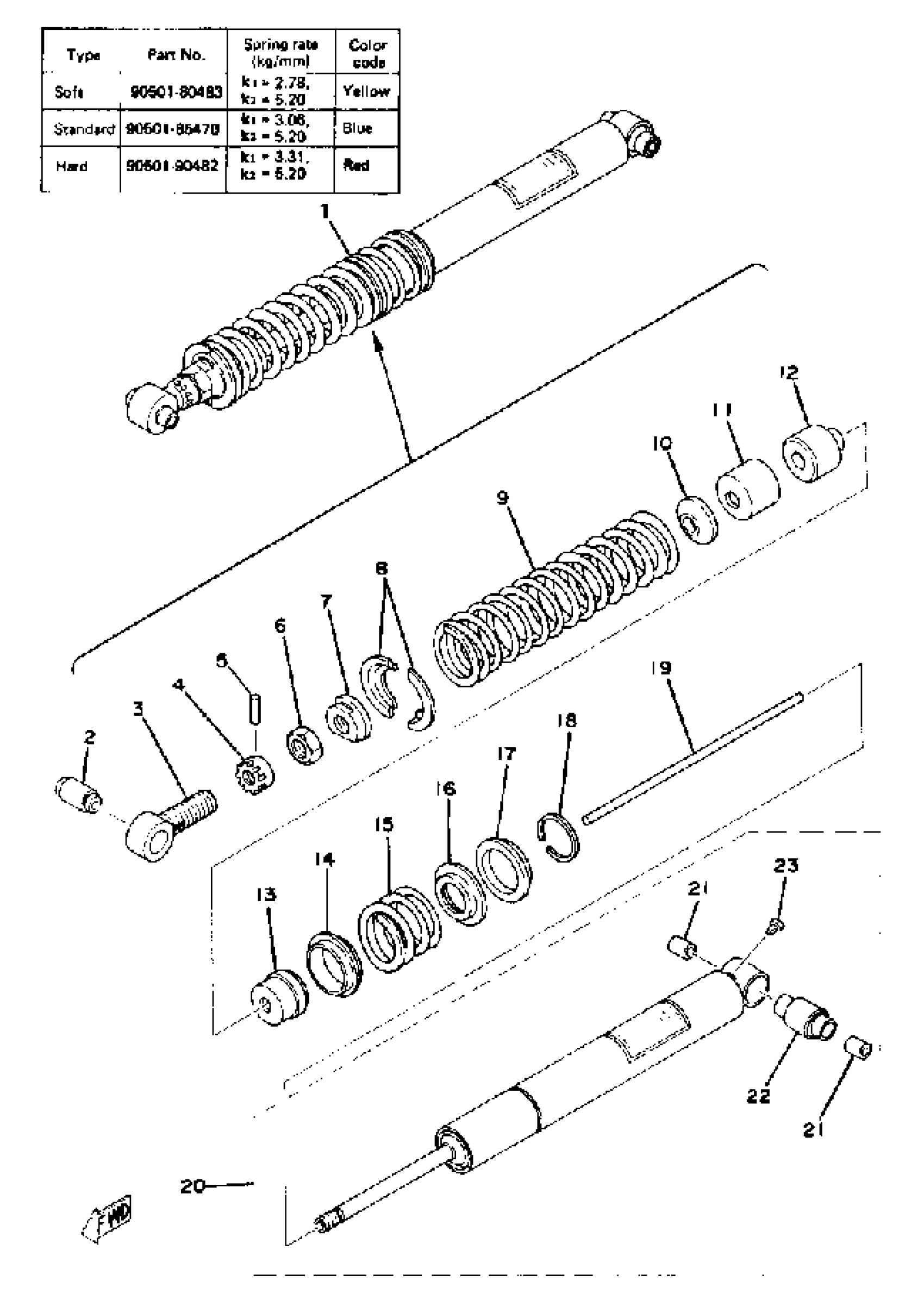

Yamaha IT175D (IT175) 1977 REAR CUSHION Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REAR

(1W2-22210-00-00)

Unavailable

2

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

Unavailable

3

BRACKET, UPPER

(1W1-22219-00-00)

Unavailable

4

NUT, ADJUSTING

(1W1-22497-00-00)

Unavailable

5

. PIN, DOWEL

93604-26132-00

Unavailable

6

NUT, HEXAGON (29L)

90170-20320-00

$15.99

7

SEAT, SPRING UPPER

(1W1-22213-00-00)

Unavailable

8

GUIDE, SPRING 1

(1W1-22214-00-00)

Unavailable

9

SPRING, COMPRESSION

(90501-99471-00)

Unavailable

10

SUPPORT, BUMP STOP

(1W1-22228-00-00)

Unavailable

11

COVER

(1W1-22221-00-00)

Unavailable

12

BUMP, STOP

(1W1-22493-00-00)

Unavailable

13

CAP, CASE

(1W1-22472-00-00)

Unavailable

14

GUIDE, SPRING 3

(1W2-22234-00-00)

Unavailable

15

SPRING, COMPRESSION

(90501-80483-00)

Unavailable

15

SPRING, COMPRESSION

(90501-85470-00)

Unavailable

15

SPRING, COMPRESSION

(90501-90482-00)

Unavailable

16

GUIDE, SPRING 2

(1W2-22224-00-00)

Unavailable

17

SEAT, SPRING LOWER

(1W1-22223-00-00)

Unavailable

18

CIRCLIP, OUTER

(93440-50058-00)

Unavailable

19

ROD, PUSH

(1W1-22489-00-00)

Unavailable

20

DAMPER SUB-ASSEMBLY.

(1W2-22401-00-00)

Unavailable

21

.. UNAVAILABLE IN PRICE BOOK

90830-12051-00

Unavailable

22

.. BUSH, SHOCK ABS LWR

1W1-22226-00-00

Unavailable

23

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable
