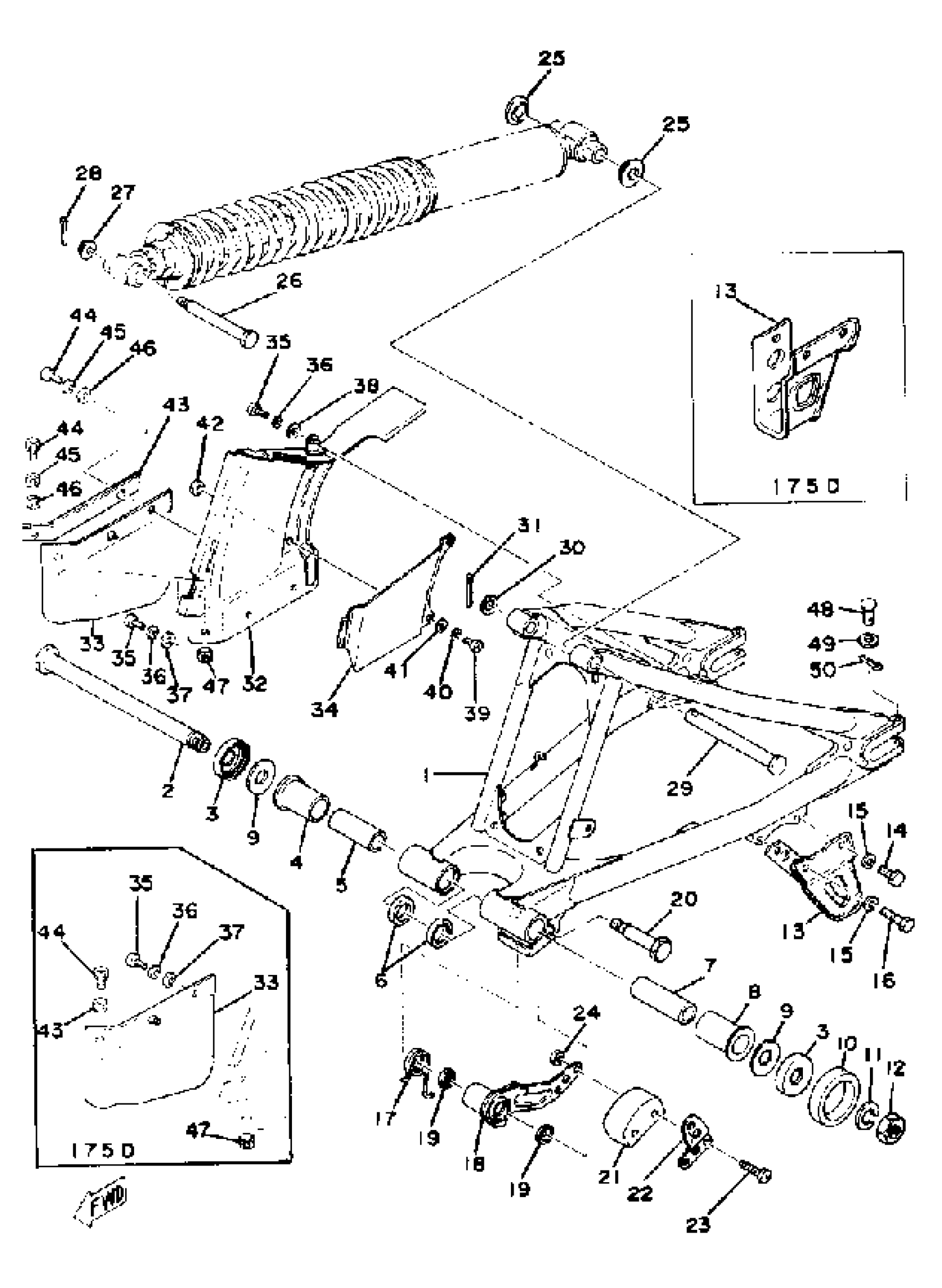

Yamaha IT175D (IT175) 1977 REAR ARM - CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(1W2-22110-01-33)

Unavailable

2

SHAFT, PIVOT

1W1-22141-00-00

Unavailable

3

COVER, THRUST

322-22128-01-00

$35.99

4

BUSH (5A9)

90386-22102-00

$40.99

5

BUSH, SOLID

90380-16054-00

Unavailable

6

OIL SEAL (20.9X28X4-1W1)

93109-22019-00

$15.99

7

BUSH, SOLID

90380-16055-00

Unavailable

8

BUSH

3Y1-22184-01-00

$38.99

9

SHIM,REAR ARM

240-22127-00-00

$6.99

10

SEAL, GUARD

1W1-22151-00-00

Unavailable

11

WASHER(JN5)

92907-16100-00

$14.99

12

NUT

90170-16111-00

Unavailable

13

UNAVAILABLE IN PRICE BOOK

1K7-22153-01-00

Unavailable

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

WASHER, SPRING

92995-06100-00

Unavailable

16

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable

17

SPRING, TORSION (1J4)

90508-35350-00

Unavailable

18

ARM, TENSIONER

(1W1-22179-01-00)

Unavailable

19

OIL SEAL (2K8)

93109-14021-00

Unavailable

20

BOLT (1J4)

90109-10483-00

Unavailable

21

TENSIONER

1W1-22178-00-00

Unavailable

21

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

22

GUIDE, CHAIN

1W1-22187-00-00

Unavailable

23

SCREW, PAN HEAD (686)

98580-05035-00

Unavailable

24

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

25

COVER, THRUST

1W1-22128-00-00

Unavailable

26

BOLT

90109-08480-00

Unavailable

27

NUT, SPEC''L SHAPE

90179-08243-00

Unavailable

28

PIN, COTTER

91490-20025-00

Unavailable

29

PIN,CLEVIS

90240-12059-00

Unavailable

30

WASHER, PLATE(663)

92990-12600-00

Unavailable

31

PIN, COTTER

91490-30030-00

Unavailable

32

CASE, CHAIN

(1W2-22311-00-33)

Unavailable

33

RUBBER, CHAIN CASE

(1W2-22313-00-00)

Unavailable

34

GUARD, CHAIN

(1W2-22318-00-00)

Unavailable

35

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

35

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

36

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

36

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

37

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

37

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

38

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

39

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

40

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

41

. WASHER, PLAIN

92990-05200-00

Unavailable

42

NUT, U

95617-05100-00

Unavailable

43

PLATE, CHN CS RUBR

(1W2-22347-00-00)

Unavailable

43

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

44

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

44

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

45

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

46

WASHER, PLAIN (646)

92990-05600-00

Unavailable

47

NUT, U

95617-05100-00

Unavailable

48

PIN, CLEVIS (1M1)

91701-06042-00

Unavailable

49

WASHER, PLAIN (646)

92990-06600-00

Unavailable

50

PIN, COTTER

91490-20025-00

Unavailable
