1977 Yamaha IT175 (IT175D) Kick - Starter Diagram

← All diagrams

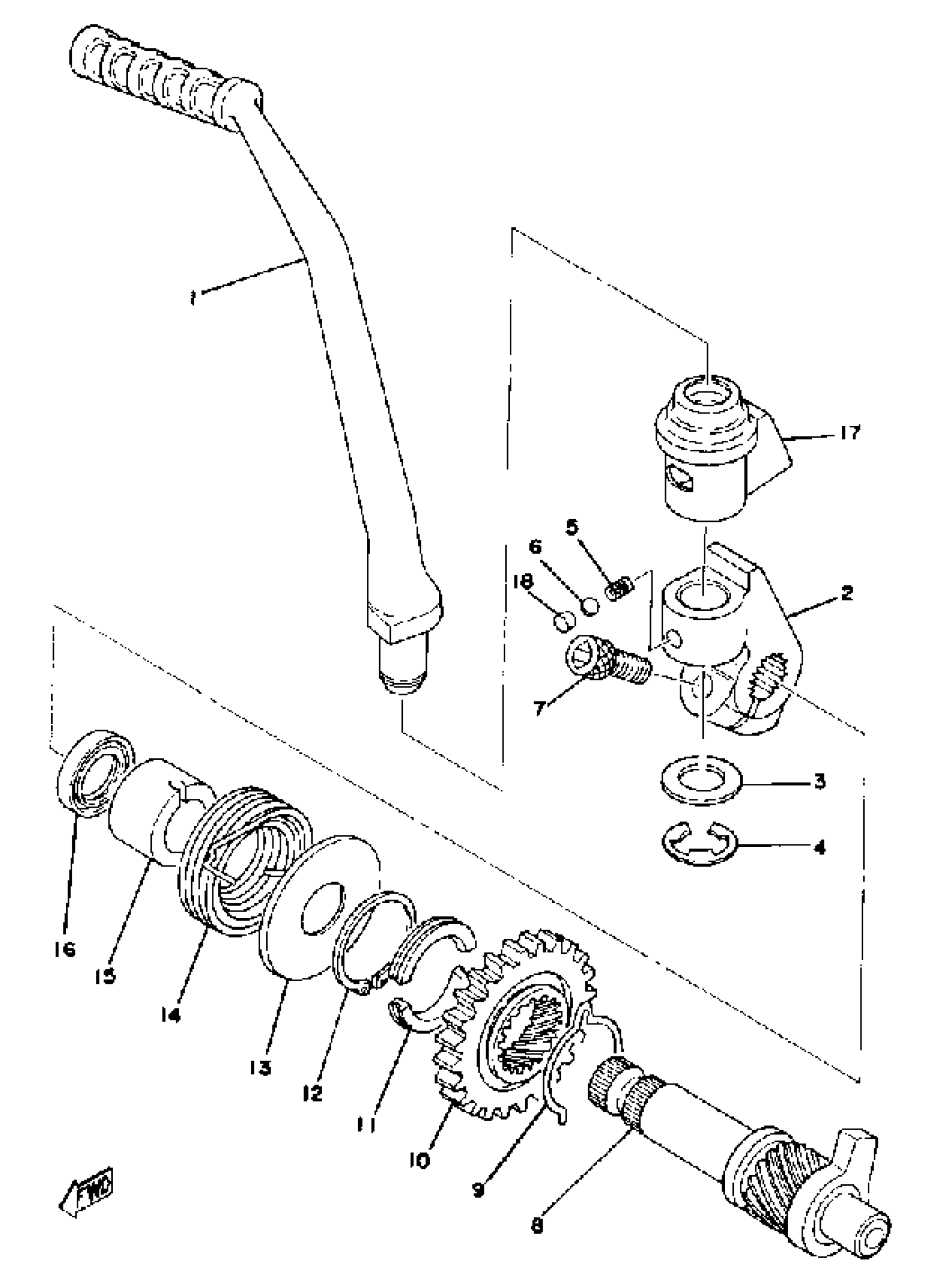

Find the part on the Kick - Starter diagram for your 1977 Yamaha IT175 (IT175D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha IT175 (IT175D) Kick - Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSEMBLY (1W1-15611-02-33)

1W1-15620-01-00

1
Out of stock

2

BOSS, KICK CRANK

1W1-15621-01-00

—

$92.40

In stock

3

WASHER, PLATE (525)

90201-12541-00

1
Out of stock

4

CIRCLIP (137)

93430-08007-00

1

$6.17

In stock

5

SPRING, COMPRESSION (1W1)

90501-10459-00

1
Out of stock

6

BALL

93503-16003-00

1

$2.14

In stock

7

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

8

KICK AXLE ASSEMBLY

1W1-15660-00-00

1
Out of stock

9

CLIP 315156870000

90468-26048-00

1
Out of stock

10

GEAR, KICK

1W1-15641-00-00

—
Out of stock

11

HOLDER, KICK GEAR

248-15654-00-00

1

$6.49

In stock

12

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

13

COVER, SPRING

401-15676-00-00

1

$6.43

In stock

14

SPRING, TORSION (1W1)

90508-26346-00

—

$16.45

In stock

15

SPACER, KICK AXLE SPRING

1W1-15666-00-00

1

$15.17

In stock

16

OIL SEAL (17X25X4-401)

93101-17062-00

—

$12.58

In stock

17

COVER, KICK CRANK BOSS

1W1-15618-01-00

—

$34.11

In stock

18

PLUG, TAPER

90336-06030-00

1
Out of stock
