1977 Yamaha IT175 (IT175D) Intake Diagram

← All diagrams

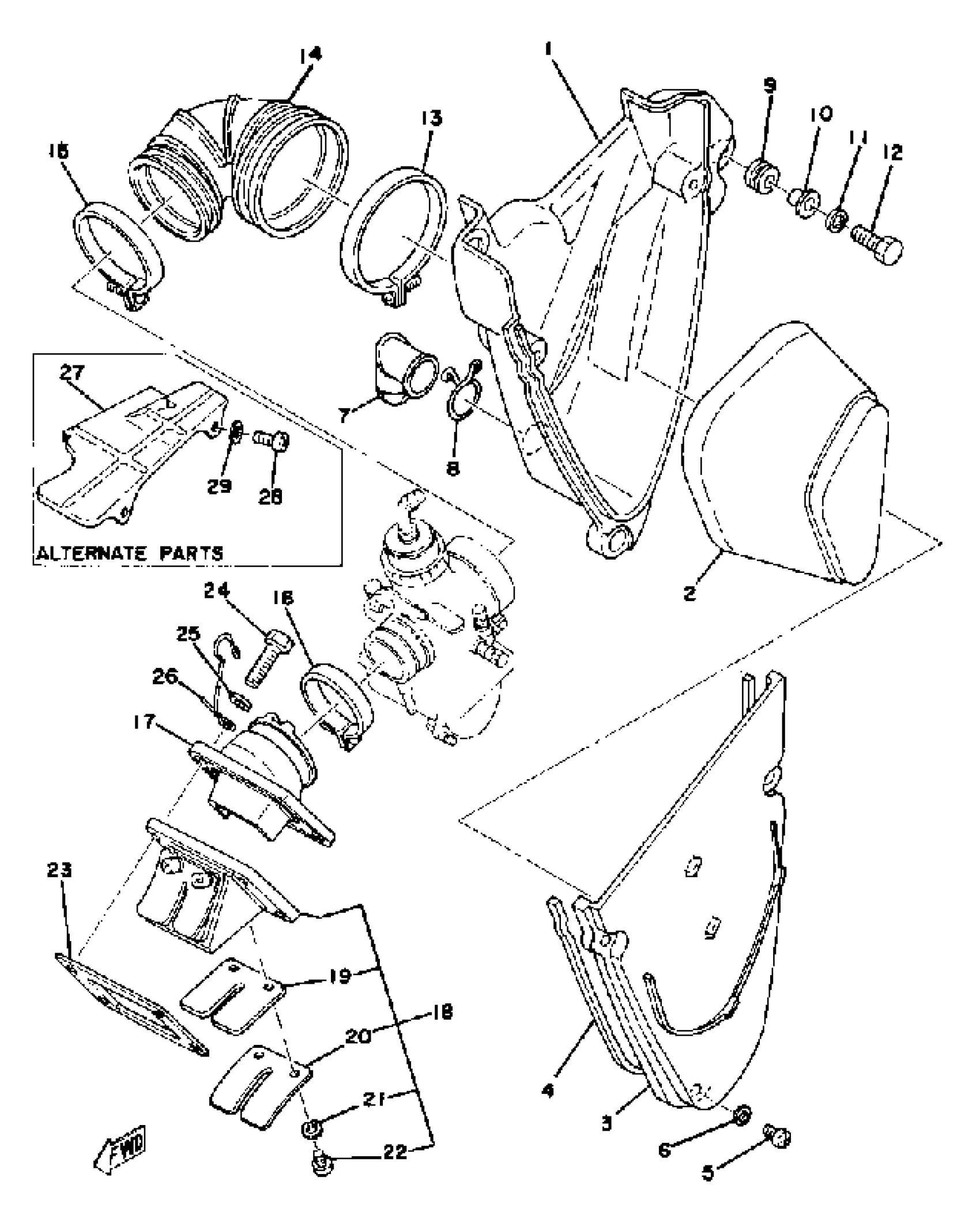

Find the part on the Intake diagram for your 1977 Yamaha IT175 (IT175D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha IT175 (IT175D) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(2W6-14411-00-00)

1
Out of stock

2

ELEMENT ASSY, AIR CLEANER

1W1-14450-03-00

1
Out of stock

3

CAP,CLEANER CASE 1

1W2-14412-01-00

1
Out of stock

4

SEAL

51Y-14462-00-00

1

$11.61

In stock

5

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

6

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

7

SEAL

1W1-14457-01-00

1
Out of stock

8

CLIP

90467-20M15-00

1

$6.23

In stock

9

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

10

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

13

CLAMP, HOSE

90460-77016-00

1
Out of stock

14

JOINT, AIR CLNR 1

(1W1-14453-00-00)

1
Out of stock

15

HOSE CLAMP ASSY

90450-64004-00

1

$12.00

In stock

16

CLAMP HOSE 278144550000

90460-49058-00

—
Out of stock

17

JOINT, CARBURETOR

1W1-13565-00-00

1
Out of stock

18

REED VALVE ASSY

10V-13610-01-00

—

$137.01

In stock

19

REED VALVE 1

10V-13613-01-00

—

$25.35

In stock

20

. STOPPER, REED VALVE (10V-12616-01-00)

1UA-13616-00-00

1
Out of stock

21

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

22

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

23

GASKET, VALVE SEAT

3TT-13621-00-00

—

$17.31

In stock

24

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

25

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

26

CLAMP

(90462-20034-00)

1
Out of stock

27

PLATE

(1W2-14477-10-00)

1
Out of stock

28

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

29

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock
