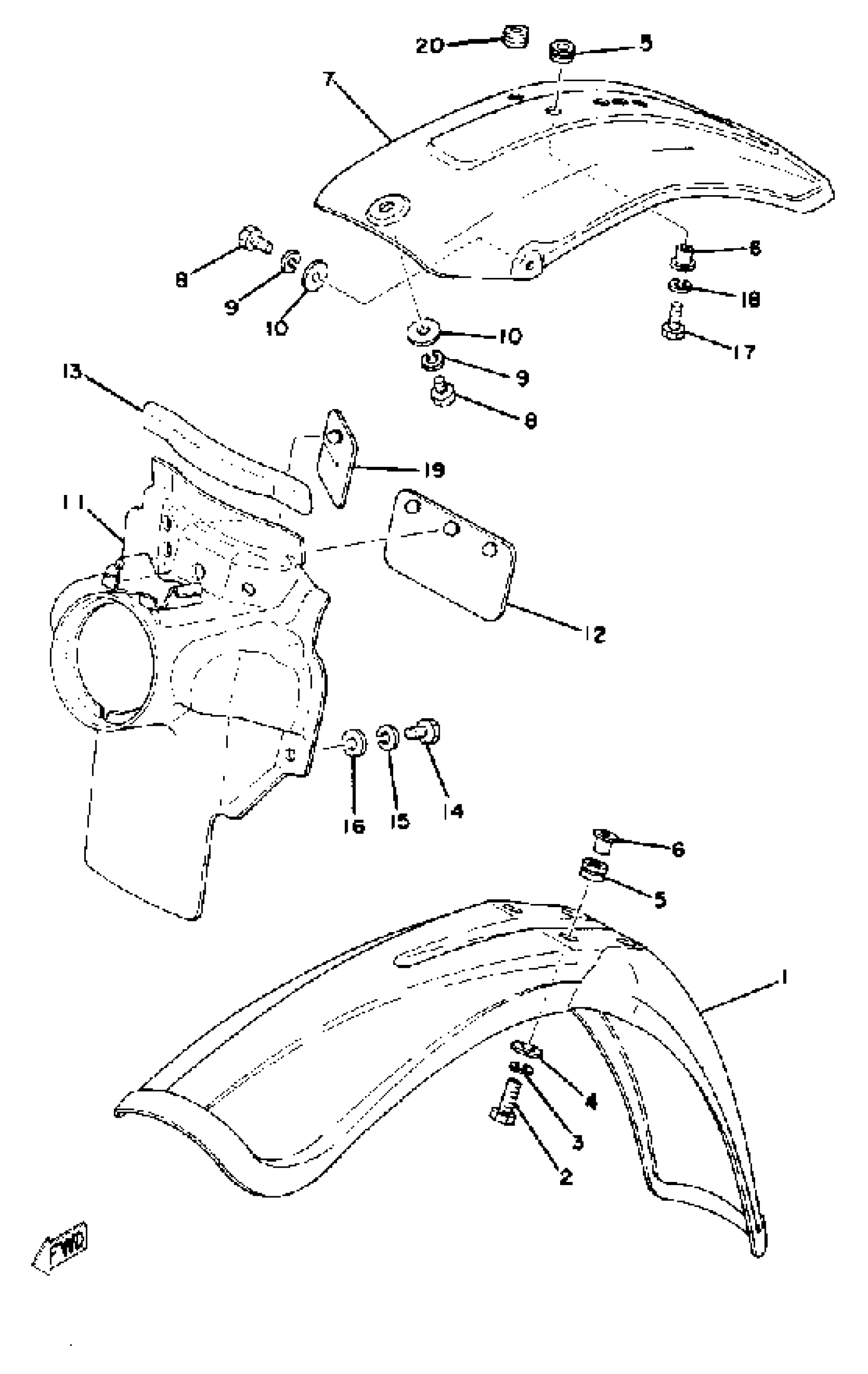

Yamaha IT175D (IT175) 1977 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT SET

99999-02158-00

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$4.24

3

WASHER, SPRING

92995-06100-00

Unavailable

4

UNAVAILABLE IN PRICE BOOK

90203-06067-00

Unavailable

5

GROMMET

90480-14198-00

$9.49

6

COLLAR

90387-06158-00

$8.49

7

FENDER, REAR

1W2-21611-00-00

Unavailable

8

BOLT(8CP)

97017-06014-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLATE

90201-06380-00

$0.60

11

GUARD, MUD

(1W2-21620-90-00)

Unavailable

12

FLAP

1M1-21621-00-00

$16.49

13

. DAMPER

565-21746-00-00

Unavailable

14

BOLT(8CP)

97017-06014-00

$8.49

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, PLATE

90201-06380-00

$0.60

17

BOLT, HEXAGON

97017-06025-00

$4.24

18

WASHER, SPRING

92995-06100-00

Unavailable

19

FLAP

(1W2-21621-00-00)

Unavailable

20

GROMMET (1E6)

90480-15058-00

Unavailable
