1977 Yamaha IT175 (IT175D) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1977 Yamaha IT175 (IT175D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

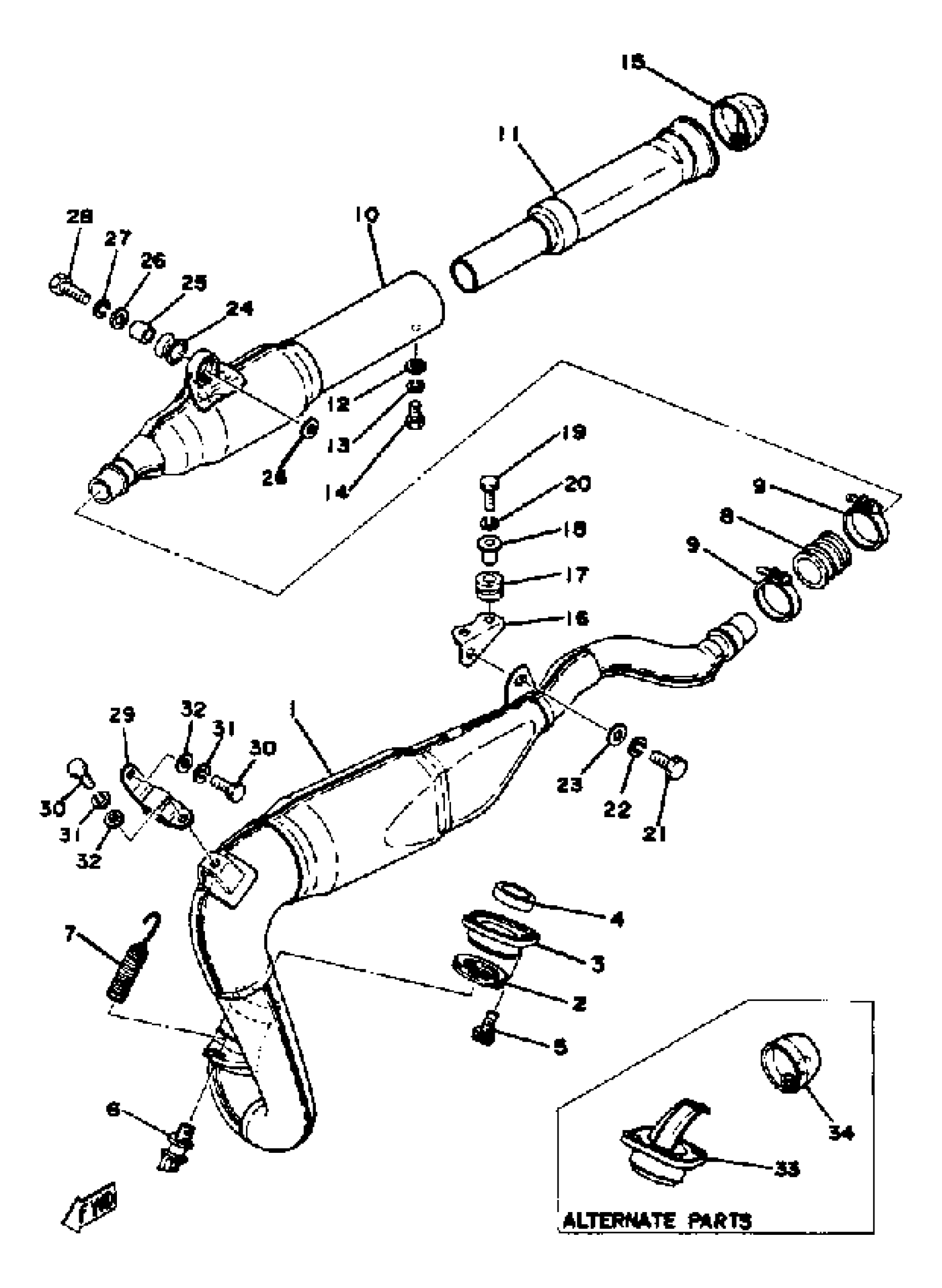

1977 Yamaha IT175 (IT175D) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(2W6-14610-00-00)

1
Out of stock

2

GASKET

248-14623-10-00

1

$6.22

In stock

3

NUT, RING

(1L8-14612-00-00)

1
Out of stock

4

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

5

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

6

BOLT, HOOK

409-14684-00-00

1
Out of stock

7

SPRING,TENSION

90507-20012-00

1
Out of stock

8

GASKET, MUFFLER JOINT

1W2-14714-00-00

1
Out of stock

9

CLAMP, HOSE

90460-37130-00

1
Out of stock

10

SILENCER, EXHAUST

(1W2-14753-00-00)

1
Out of stock

11

SILENCER, EXHAUST

(1W2-14753-00-00)

1
Out of stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BOLT (661)

97013-06012-00

1

$4.71

In stock

15

CAP, SILENCER

1W2-14787-00-00

1
Out of stock

16

STAY, MUFFLER 1

1W2-14771-10-00

1
Out of stock

17

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

18

COLLAR

90387-06158-00

—

$6.17

In stock

19

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

24

DAMPER

565-14747-00-00

—
Out of stock

25

COLLAR (437)

90387-08258-00

—
Out of stock

26

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

29

STAY, MUFFLER 2

1M1-14772-00-00

1
Out of stock

30

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

33

NUT, RING

(1W2-14612-10-00)

1
Out of stock

34

CAP, SILENCER

(1W2-14787-10-00)

1
Out of stock
