CRANKSHAFT - PISTON

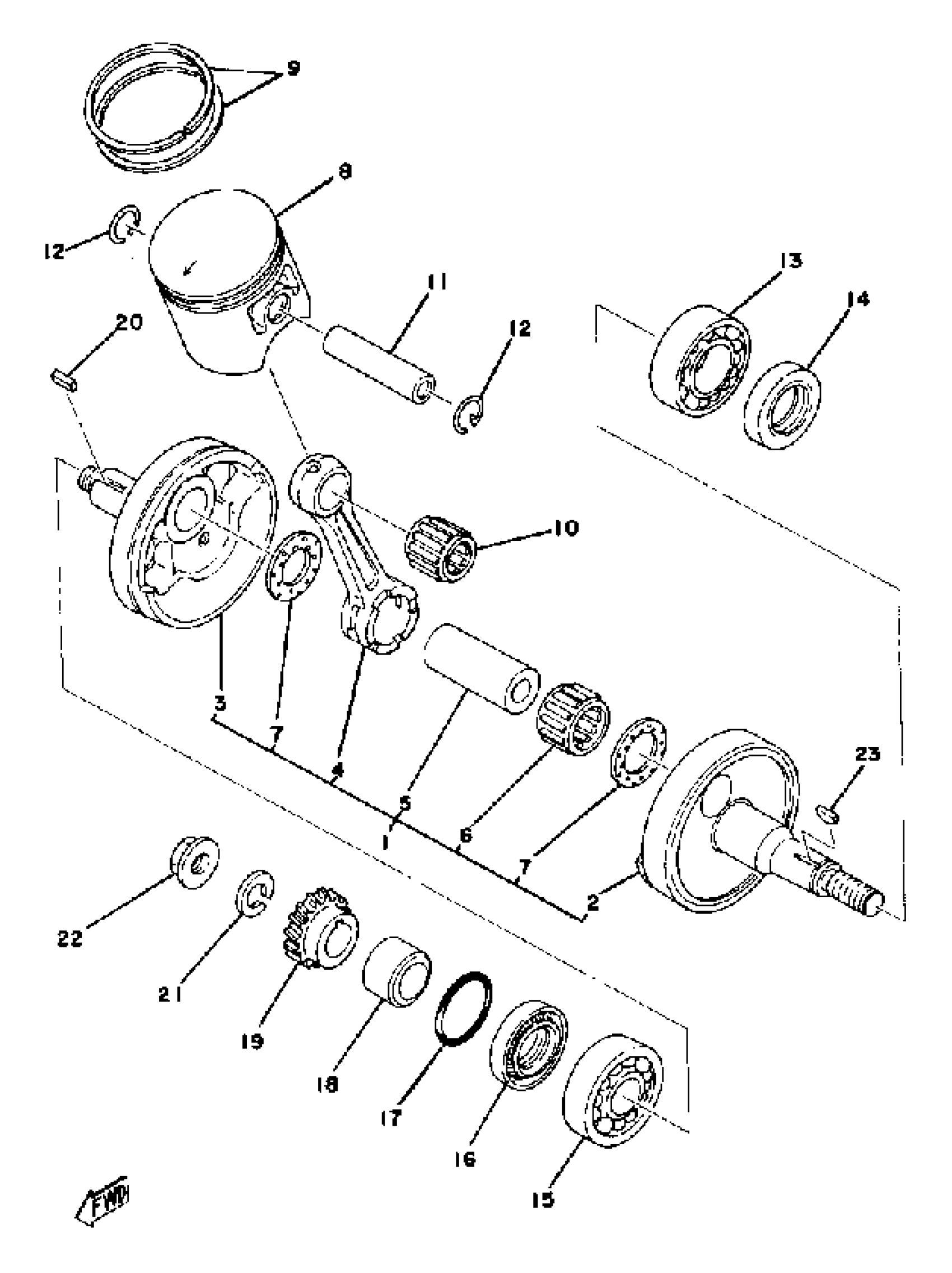

Yamaha IT175D (IT175) 1977 CRANKSHAFT - PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY (1W1-11400-01)
2K5-11400-00-00
Unavailable
2
CRANK (L.H)
1W1-11412-01-00
Unavailable
3
CRANK (R.H)
1W1-11422-01-00
Unavailable
4
. ROD, CONNECTING
3R2-11651-01-00
Unavailable
6
BEARING (3R3)
93310-422H0-00
Unavailable
7
WASHER (29L)
90209-22248-00
Unavailable
8
PISTON STD
1W2-11631-10-96
Unavailable
8
PISTON
3R6-11630-12-00
Unavailable
8
PISTON KIT 2ND
3R6-11630-21-00
Unavailable
8
PISTON 3 O/S 0.75
1W2-11637-10-00
Unavailable
8
PISTON 4 O.S. 1.00
1W2-11638-10-00
Unavailable
9
PISTON RINGSET STD
1W2-11610-00-00
Unavailable
9
PISTON RINGSET 1ST
1W2-11610-10-00
Unavailable
9
PISTON RINGSET 2ND
1W2-11610-20-00
Unavailable
9
PISTON RINGSET 3RD
1W2-11610-30-00
Unavailable
9
PISTON RINGSET 4TH
1W2-11610-40-00
Unavailable
10
BRG,CYL-CAL ROLLER 14-7G KY
93310-216E1-00
Unavailable
11
PIN, PISTON
251-11633-00-00
Unavailable
12
CIRCLIP (137-11634-00)
93450-17025-00
Unavailable
13
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
14
OIL SEAL (5V6)
93103-25125-00
Unavailable
15
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
16
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
17
O-RING(3KX)
93210-180A6-00
Unavailable
18
COLLAR, DISTANCE (525)
90387-20488-00
Unavailable
19
GEAR, PRI DRIVE
1W1-16111-00-00
Unavailable
20
KEY, STRAIGHT 3531154600
90282-05005-00
Unavailable
21
WASHER, SPRING (1W1)
90204-12007-00
Unavailable
22
NUT(1EE)
90179-12659-00
Unavailable
23
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
