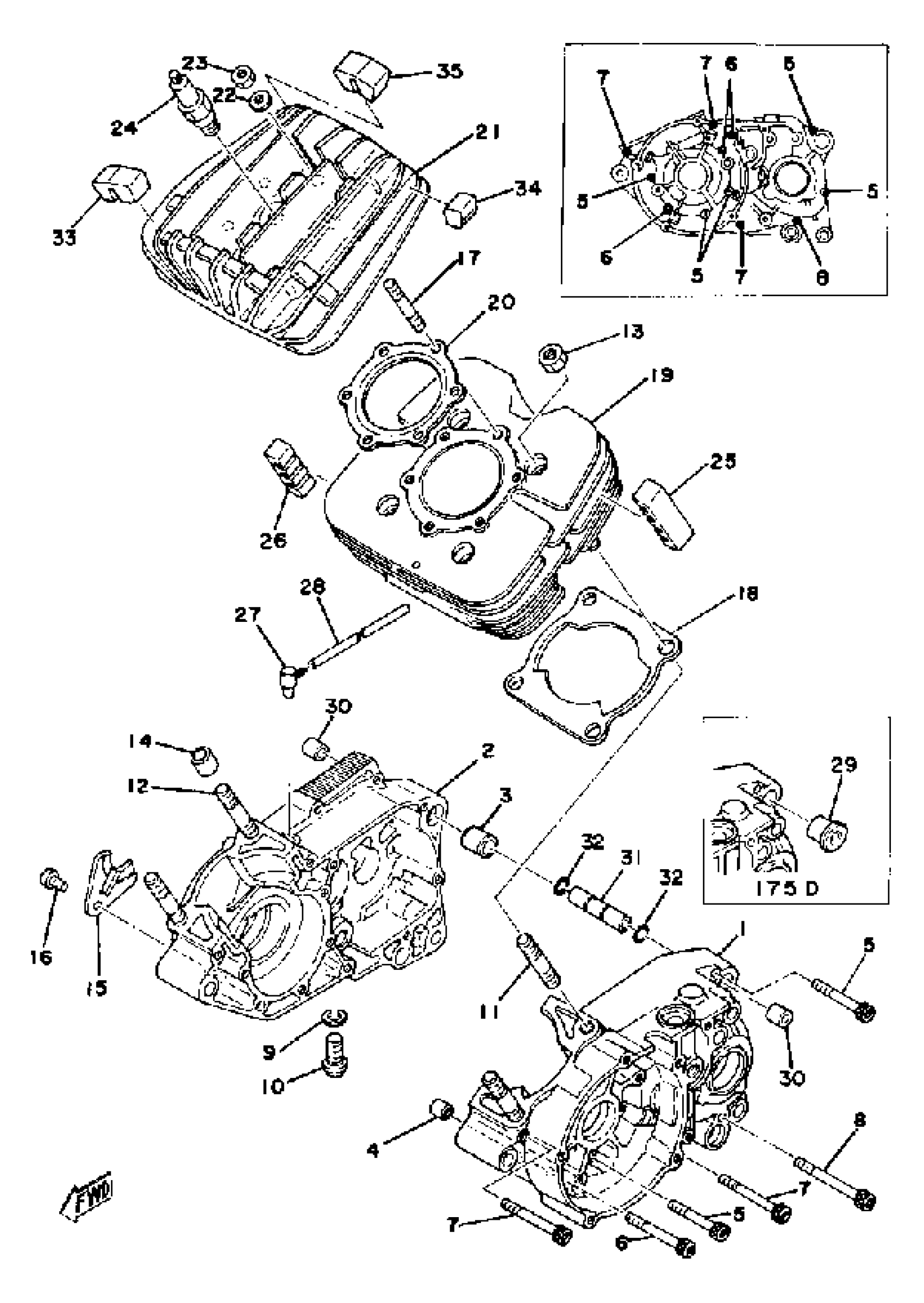

Yamaha IT175D (IT175) 1977 CRANKCASE - CYLINDER Diagram

#

Description
Price

1

CRANKCASE 1

1W2-15111-02-00

Unavailable

2

CRANKCASE 2 (1W2-15121-01)

1W2-15121-02-00

Unavailable

3

PIN, DOWEL

99530-20020-00

Unavailable

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

BOLT,SOCKET

91317-06050-00

$3.88

6

BOLT,SOCKET

91317-06060-00

$3.76

7

BOLT, SOCKET

91317-06070-00

$4.99

8

BOLT, SOCKET

91317-06075-00

$5.60

9

GASKET (3JD1)

90430-12207-00

$7.99

10

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

11

BOLT, STUD

90116-10257-00

Unavailable

12

BOLT, STUD

90116-10258-00

Unavailable

13

NUT

90179-10021-00

$25.99

14

PIN, DOWEL

99530-14016-00

$3.80

15

HOLDER (R.H)

304-15128-00-00

$6.99

16

SCREW, PAN

98507-08010-00

Unavailable

17

BOLT STUD 363111790000

90116-08104-00

Unavailable

18

GASKET, CYLINDER

3TN-11351-00-00

Unavailable

19

CYLINDER 1

1W2-11311-00-00

Unavailable

20

GASKET, CYLINDER HEAD

1W2-11181-00-00

Unavailable

21

HEAD, CYLINDER 1

1W2-11111-00-00

Unavailable

22

WASHER, PLATE (397)

90201-08100-00

Unavailable

23

NUT(6L2)

95333-08600-00

Unavailable

24

CHAMPION N2G 10PK

(CMP-N2G00-00-00)

Unavailable

25

ABSORBER 3

2A6-11127-00-00

Unavailable

26

ABSORBER 3

2A6-11127-00-00

Unavailable

27

BREATHER

583-15371-00-00

Unavailable

28

HOSE (L570)

90445-07MF1-00

Unavailable

29

SPACER, ENG MOUNT

(1W1-15317-00-00)

Unavailable

30

DAMPER

90388-08003-00

Unavailable

31

SPACER, ENGINE MOUNT

401-15317-00-00

Unavailable

32

O-RING (P95)

93210-11073-00

Unavailable

33

ABSORBER 1

1W2-11161-00-00

Unavailable

34

ABSORBER 2

(1W2-11162-00-00)

Unavailable

35

ABSORBER 3

(1W2-11127-00-00)

Unavailable
