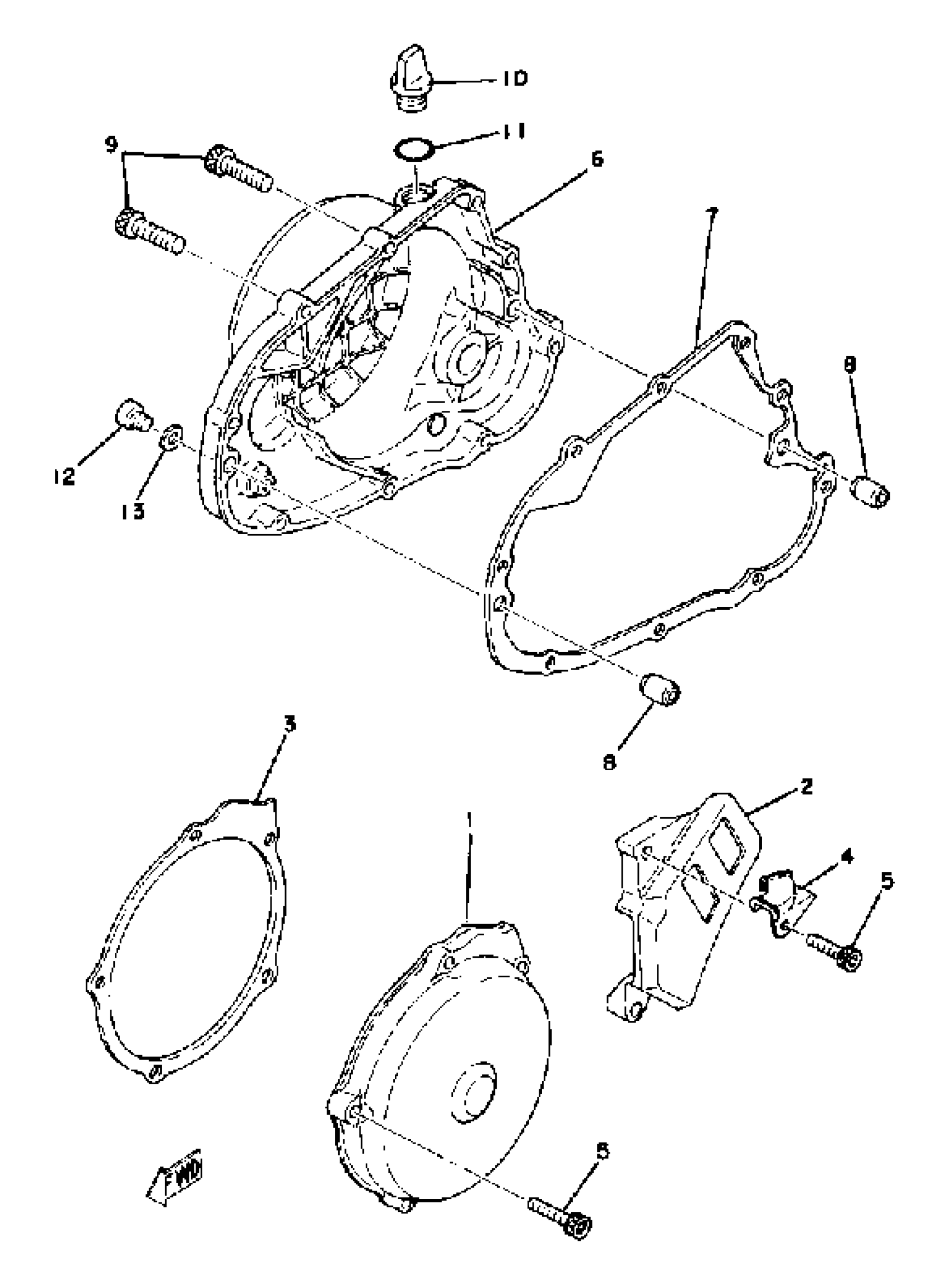

Yamaha IT175D (IT175) 1977 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

1W1-15411-00-00

Unavailable

2

COVER, CRANKCASE R

1W1-15421-01-00

Unavailable

3

GASKET 1

1W1-15455-01-00

Unavailable

4

CLAMP

90465-10119-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

6

COVER, CRANKCASE 3

1W1-15431-00-00

Unavailable

7

GASKET, CRANKCASE COVER 1

18G-15451-03-00

$28.99

8

PIN, DOWEL(3VD)

99530-10114-00

$2.55

9

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

10

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

11

O-RING (26H)

93210-14579-00

$7.49

12

SCREW, PAN

98517-06008-00

$8.49

13

GASKET 838153840000

90430-06016-00

$8.49
