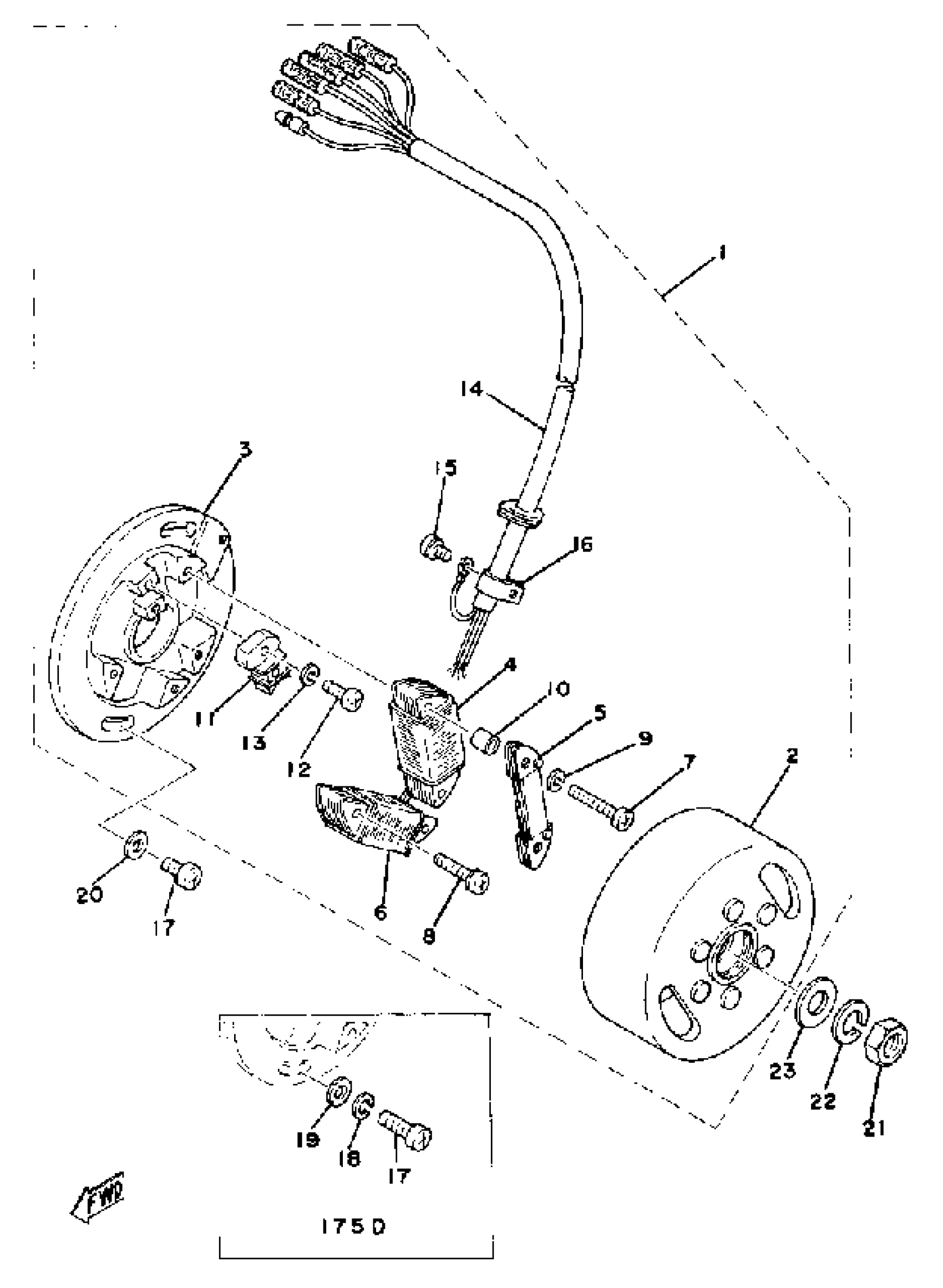

Yamaha IT175D (IT175) 1977 C - D - I - MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

(1W2-85500-20-00)

Unavailable

2

ROTOR ASSEMBLY

(1W2-85550-20-00)

Unavailable

3

. BASE, MAGNETO

1W2-85509-20-00

Unavailable

4

. COIL SOURCE 1

2A7-85511-20-00

Unavailable

5

. COIL SOURCE 2

1W2-85512-20-00

Unavailable

6

. COIL, LIGHTING 1

1W2-85513-20-00

Unavailable

7

. SCREW, PAN HEAD (811-14125-0)

619-81345-20-00

Unavailable

8

SCREW, PAN HEAD

98517-04025-00

Unavailable

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

. SPACER

1W2-85516-20-00

Unavailable

11

. COIL, PULSER

1W2-85580-20-00

Unavailable

12

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

LEAD WIRE ASSEMBLY

(1W2-85515-20-00)

Unavailable

15

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

16

CLAMP, READ

445-81328-20-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

17

SCREW PAN HEAD

98580-06020-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLATE

90201-06045-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

NUT(55K)

90170-12347-00

Unavailable

22

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

23

WASHER, PLATE (583)

90201-12593-00

Unavailable
