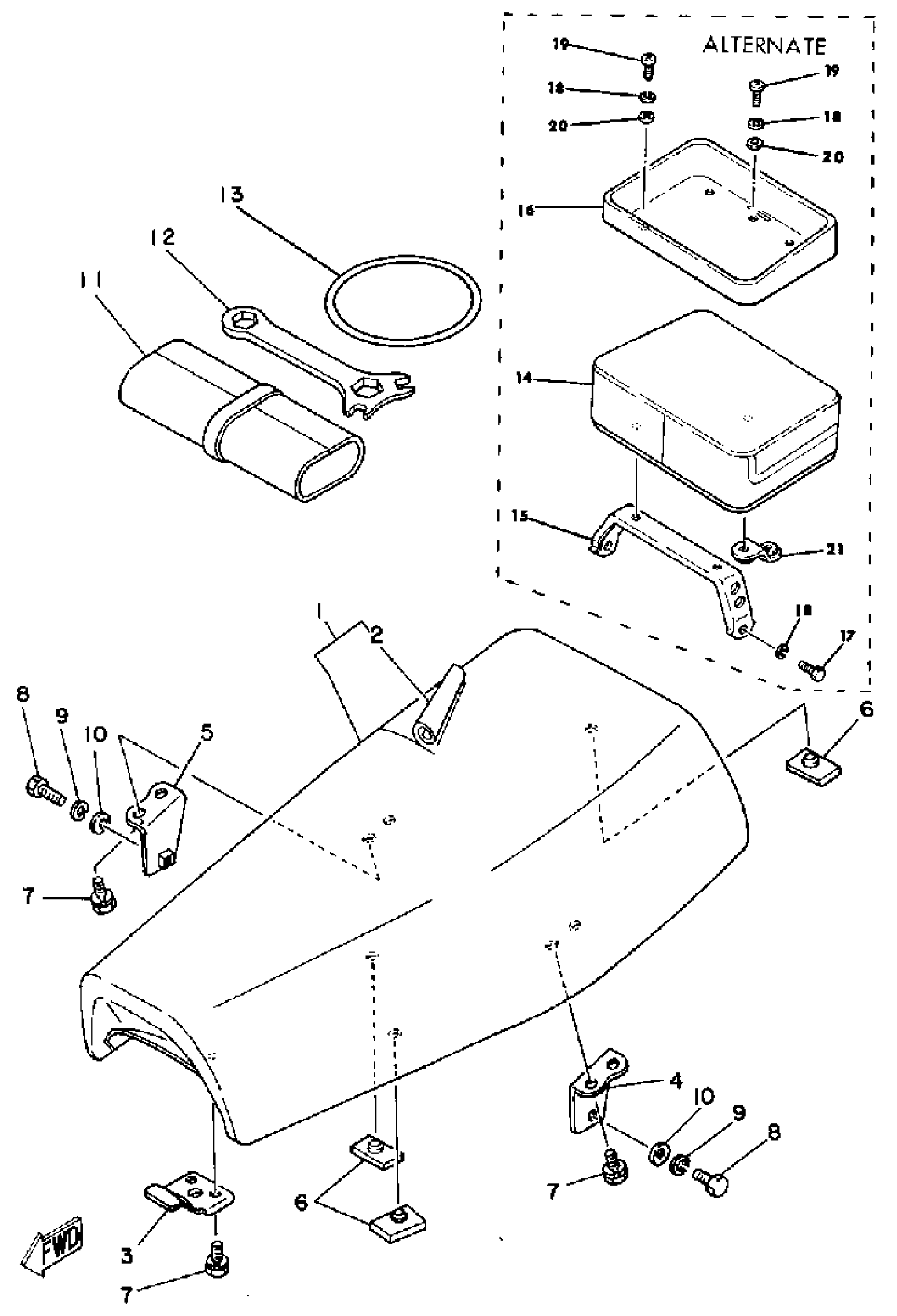

Yamaha IT125H (IT125) 1981 SEAT Diagram

#

Description
Price

1

SEMI-DBL-SEAT ASY

3R2-W2473-00-00

Unavailable

2

. COVER, SM-DBL SEAT

3R2-24771-00-00

Unavailable

3

STAY, FRONT

(2K5-24715-00-00)

Unavailable

4

STAY, REAR

(2K5-24716-00-00)

Unavailable

5

STAY, REAR

(2K5-24719-00-00)

Unavailable

6

DAMPER, SEAT

509-24724-00-00

$10.99

7

BOLT (583)

90101-06304-00

$7.49

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

TOOL KIT

1W2-W2810-00-00

Unavailable

12

SPANNER, SPECIAL

(3R9-28136-00-00)

Unavailable

13

O-RING (353)

93210-98202-00

$12.49

14

CARRIER BOX ASSEMBLY

4V5-24850-00-00

Unavailable

15

BRACKET, CARRIER 1

(3W1-24832-00-00)

Unavailable

16

BRACKET, CARRIER 2

4V5-24833-00-00

Unavailable

17

BOLT(8CP)

97017-06014-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

SCREW, PAN

98507-06014-00

Unavailable

20

WASHER, PLATE

90201-06380-00

Unavailable

21

STAY, REAR

(3W1-24819-00-00)

Unavailable
