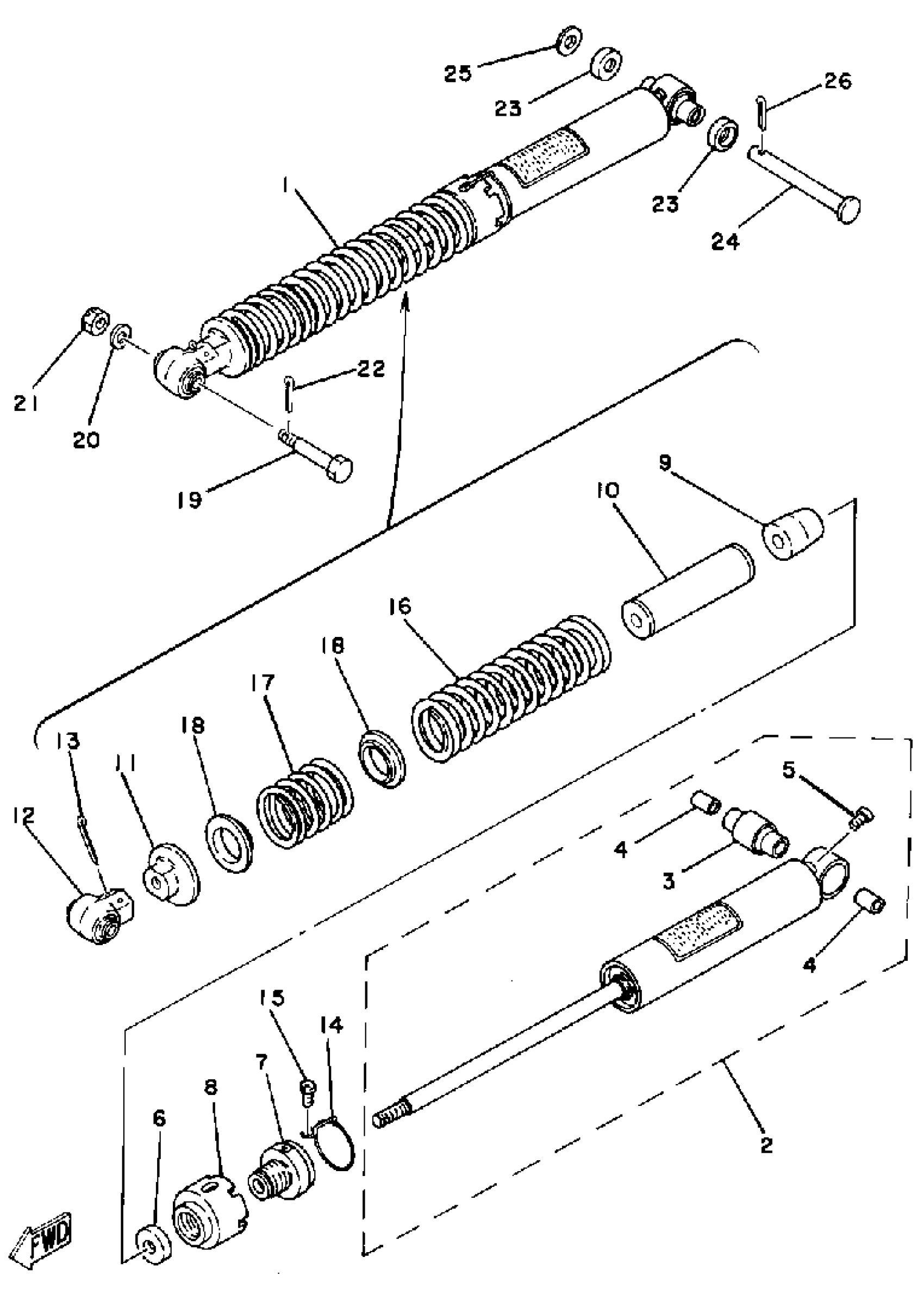

Yamaha IT125H (IT125) 1981 REAR SUSPENSION Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REAR

3R9-22210-10-00

Unavailable

1

SLEEVE, ROD

(3R9-22496-00-00)

Unavailable

2

DAMPER SUB-ASSEMBLY.

(3R9-22401-10-00)

Unavailable

3

.. BUSH, SHOCK ABS LWR

1W1-22226-00-00

Unavailable

4

BUSH, SOLID (1M1)

90380-12051-00

$15.99

5

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

6

STOPPER

(2A6-22482-00-00)

Unavailable

7

CAP, CASE

(1M1-22472-01-00)

Unavailable

8

SEAT, SPRING LOWER

(1M1-22223-00-00)

Unavailable

9

BUMP, STOP

(2A6-22493-00-00)

Unavailable

11

SEAT, SPRING UPPER

(1M1-22213-01-00)

Unavailable

12

BRACKET, UPPER

(1M1-22219-01-00)

Unavailable

13

PIN, COTTER (AM5)

91490-30045-00

$8.99

14

RING, HOLD

(1M1-22225-00-00)

Unavailable

15

SCREW, SPEC''L SHAPE

(90149-04109-00)

Unavailable

16

SPRING, SHOCK ABS 2

(3R9-22222-00-00)

Unavailable

17

. SPRING

3R9-22212-00-00

Unavailable

18

GUIDE, SPRING 3

(3R9-22234-00-00)

Unavailable

19

BOLT (1M1)

90109-10453-00

Unavailable

20

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

21

NUT (682)

95380-10700-00

Unavailable

22

PIN, COTTER

91490-20025-00

Unavailable

23

COVER, THRUST

1W1-22128-00-00

Unavailable

24

PIN,CLEVIS

90240-12059-00

Unavailable

25

WASHER, PLATE(663)

92990-12600-00

Unavailable

26

PIN, COTTER

91490-30030-00

Unavailable
