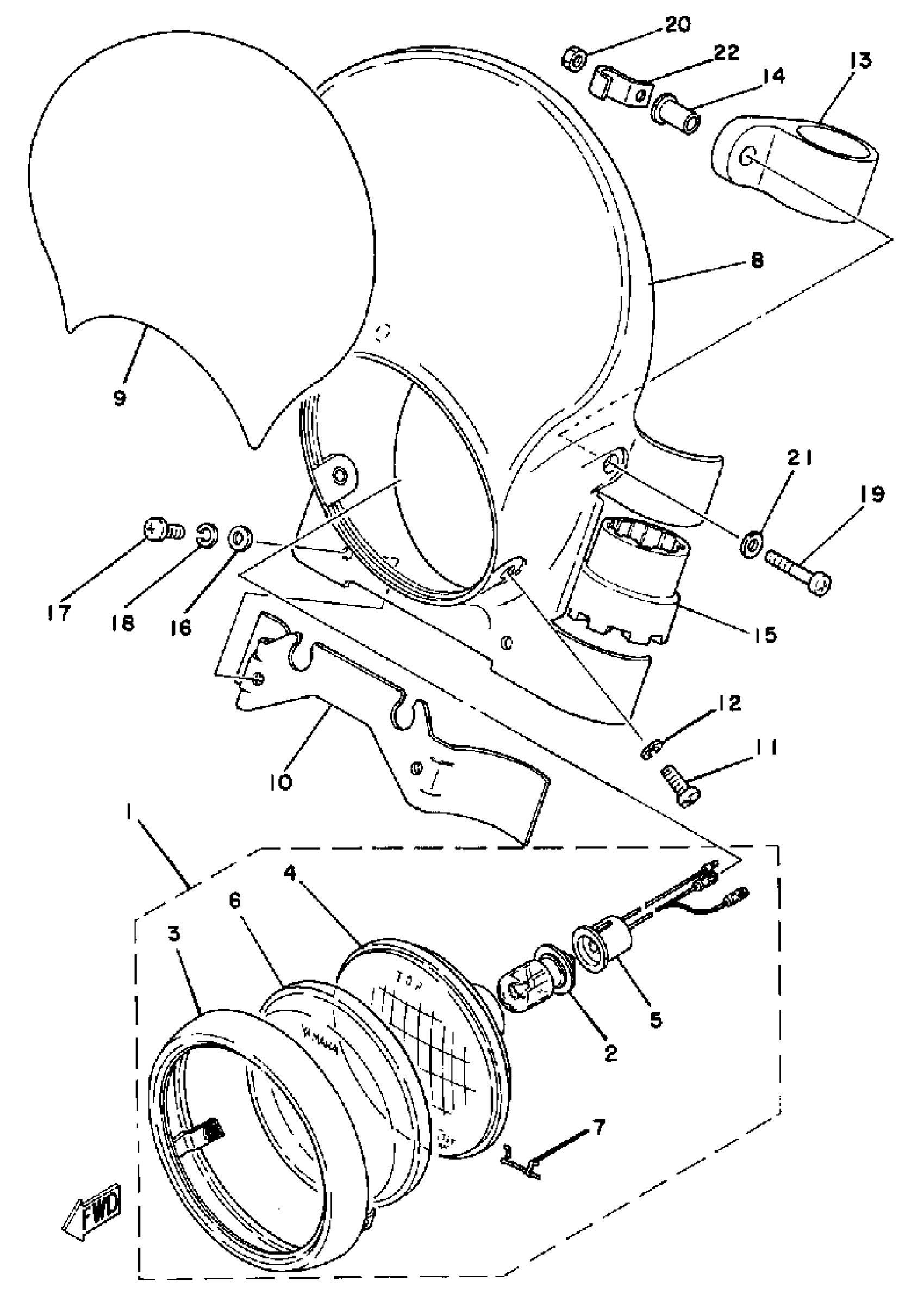

Yamaha IT125H (IT125) 1981 HEADLIGHT Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

3R8-84110-61-00

Unavailable

2

. BULB, HL 6V25/25W

527-84114-09-XX

Unavailable

3

.. RIM, HEADLIGHT

3R8-84115-60-00

Unavailable

4

. LENS ASSEMBLY

3R8-84120-60-00

Unavailable

5

. SOCKET CORD ASSEMBLY 001

3R8-84140-61-00

Unavailable

6

. COVER, HEADLIGHT

3R8-84144-60-00

Unavailable

7

. SPRING, REFLECTOR

1W2-84324-60-00

Unavailable

8

BODY ASSEMBLY, HEADLIGHT

3R9-84130-10-00

Unavailable

9

. EMBLEM, HEADLIGHT

3R8-84141-01-00

Unavailable

10

BRACKET, LOWER 1

(3R9-84181-00-00)

Unavailable

11

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

DAMPER

(3R9-84163-10-00)

Unavailable

14

. COLLAR, SCREW

3R8-84133-00-00

Unavailable

15

DAMPER

(3R9-84164-10-00)

Unavailable

16

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

17

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

20

NUT SELFLOCKING (656)

90185-06062-00

Unavailable

21

WASHER, PLATE

90201-06747-00

Unavailable

22

CLAMP 363154850100

90462-05005-00

Unavailable
