Description

Price

1

FENDER, FRONT

5X6-21511-11-00

$43.99

2

WASHER, PLATE

90201-06380-00

$0.60

3

BOLT(3DM)

97024-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER (3R8)

90209-06187-00

$8.49

6

FENDER, REAR

(3R9-21610-01-00)

Unavailable

7

WASHER, PLATE

90201-06380-00

$0.60

8

BOLT(8CP)

97017-06014-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

GROMMET

90480-14198-00

$9.49

11

COLLAR

90387-06158-00

$8.49

12

BOLT, HEXAGON

97017-06030-00

$3.61

13

WASHER, SPRING

92995-06100-00

Unavailable

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

GUARD, MUD

(3R9-21620-00-00)

Unavailable

16

DAMPER

2A6-21639-00-00

Unavailable

17

FLAP

1M1-21621-00-00

Unavailable

18

GROMMET

90480-01254-00

Unavailable

19

WASHER, PLATE

90201-06380-00

$0.60

20

BOLT(8CP)

97017-06014-00

$8.49

21

WASHER, SPRING

92995-06100-00

Unavailable

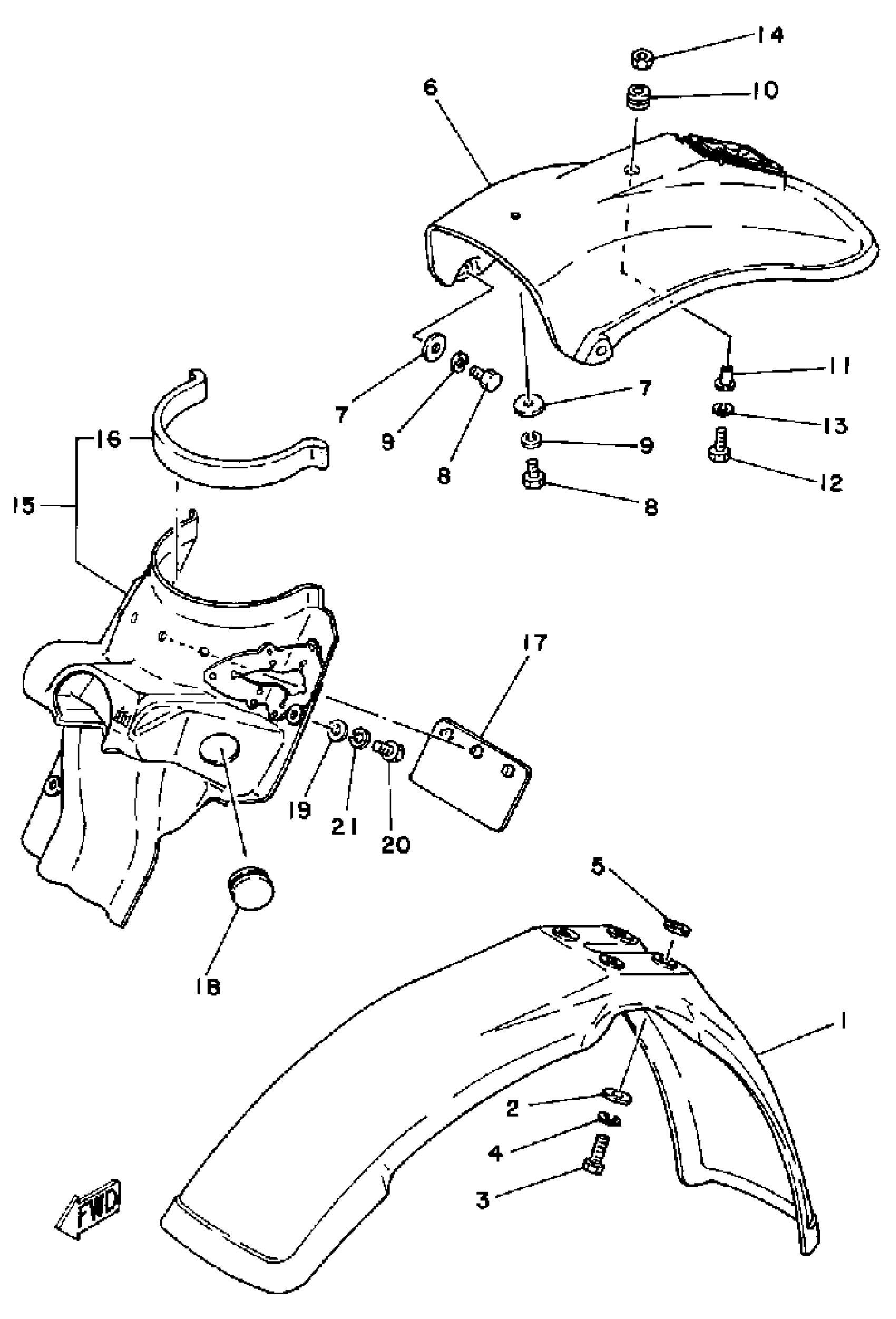

Yamaha IT125H (IT125) 1981 FRONT FENDER - REAR FENDER Diagram

FENDER, FRONT

WASHER, PLATE

BOLT(3DM)

WASHER, SPRING

WASHER (3R8)

FENDER, REAR

WASHER, PLATE

BOLT(8CP)

WASHER, SPRING

GROMMET

COLLAR

BOLT, HEXAGON

WASHER, SPRING

NUT, SELF-LOCKING

GUARD, MUD

DAMPER

FLAP

GROMMET

WASHER, PLATE

BOLT(8CP)

WASHER, SPRING
