1981 Yamaha IT125 (IT125H) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1981 Yamaha IT125 (IT125H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

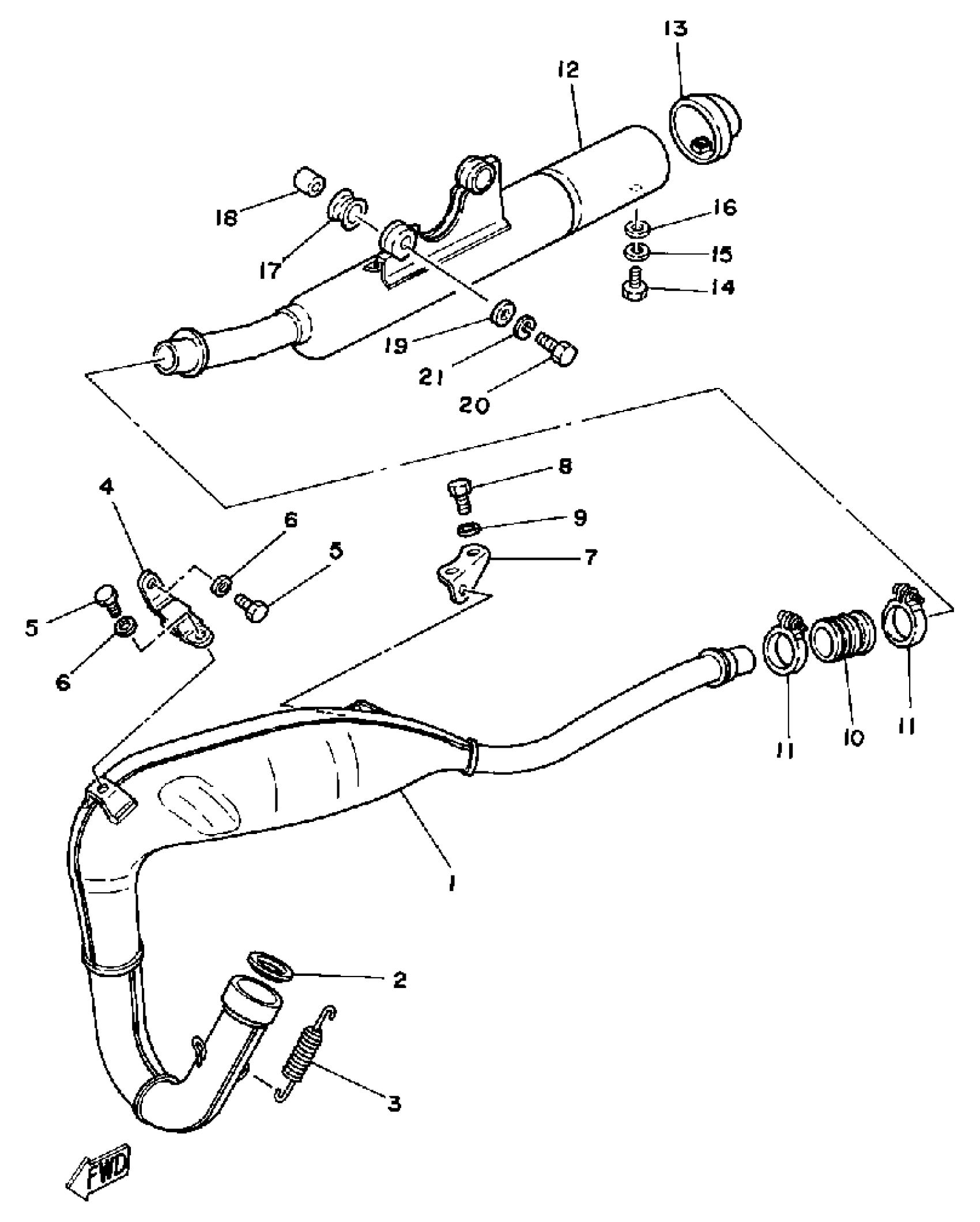

1981 Yamaha IT125 (IT125H) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

3R9-14610-00-00

1
Out of stock

2

GASKET, EXHAUST PIPE

3R3-14613-00-00

1
Out of stock

3

SPRING, TENSION (1W4)

90507-20030-00

1
Out of stock

4

STAY, MUFFLER 2

1M1-14772-00-00

1
Out of stock

5

BOLT (661)

97013-06012-00

1

$4.71

In stock

6

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

7

STAY, MUFFLER 1

565-14771-01-00

1

$16.68

In stock

8

BOLT (661)

97013-06012-00

1

$4.71

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

GASKET, MUFFLER JOINT

1W2-14714-00-00

1
Out of stock

11

CLAMP, HOSE

90460-37130-00

1
Out of stock

12

SILENCER, EXHAUST

3R9-14753-10-00

1
Out of stock

13

CAP, SILENCER

1W2-14787-00-00

1
Out of stock

14

BOLT (661)

97013-06012-00

1

$4.71

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

17

GROMMET

90480-22269-00

1
Out of stock

18

COLLAR

90387-081A3-00

1
Out of stock

19

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

20

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
