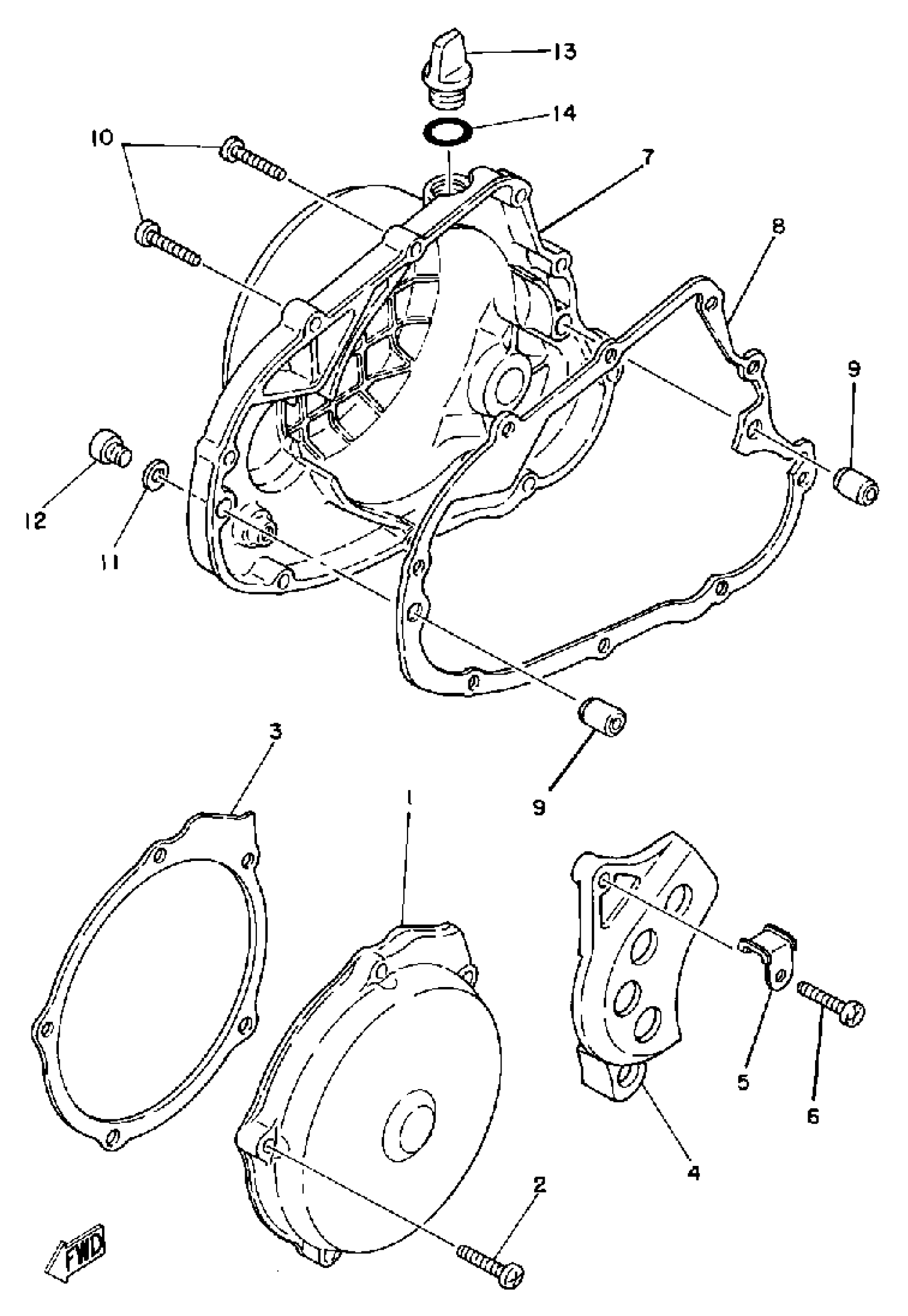

Yamaha IT125H (IT125) 1981 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

1W1-15411-00-00

Unavailable

2

SCREW, PAN

98517-06030-00

$2.88

3

GASKET 1

1W1-15455-01-00

Unavailable

4

COVER, CRANKCASE R

2W5-15421-00-00

Unavailable

5

CLAMP 2

2A6-15484-01-00

$6.29

6

SCREW, PAN

98517-06030-00

$2.88

7

COVER, CRANKCASE 3

1W1-15431-00-00

Unavailable

8

GASKET, CRANKCASE COVER 1

18G-15451-03-00

$21.40

9

PIN, DOWEL(3VD)

99530-10114-00

$2.13

10

SCREW, PAN

98517-06030-00

$2.88

11

GASKET 838153840000

90430-06016-00

$5.76

12

SCREW, PAN

98517-06008-00

$6.22

13

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

14

O-RING (26H)

93210-14579-00

$5.05
