Description

Price

1

CRANKCASE 1 (1W1-15111-00)

1W1-15111-02-00

Unavailable

2

CRANKCASE 2 (1W1-15121-01)

1W1-15121-02-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

PIN, DOWEL

99530-20020-00

Unavailable

5

DAMPER

90388-08003-00

$17.99

6

SPACER, ENGINE MOUNT

401-15317-00-00

$14.49

7

O-RING (P95)

93210-11073-00

$7.49

8

SCREW, PAN

98507-06050-00

$3.28

9

SCREW, PAN

98507-06060-00

$7.99

10

SCREW, PAN HEAD

98507-06070-00

$9.99

11

SCREW, PAN

98507-06075-00

$7.99

12

BREATHER

5UG-15371-00-00

$40.99

13

HOSE (L1050)

90445-072G8-00

$29.99

14

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

15

GASKET (3JD1)

90430-12207-00

$7.99

16

HOLDER (R.H)

304-15128-00-00

Unavailable

17

SCREW, PAN

98507-08010-00

Unavailable

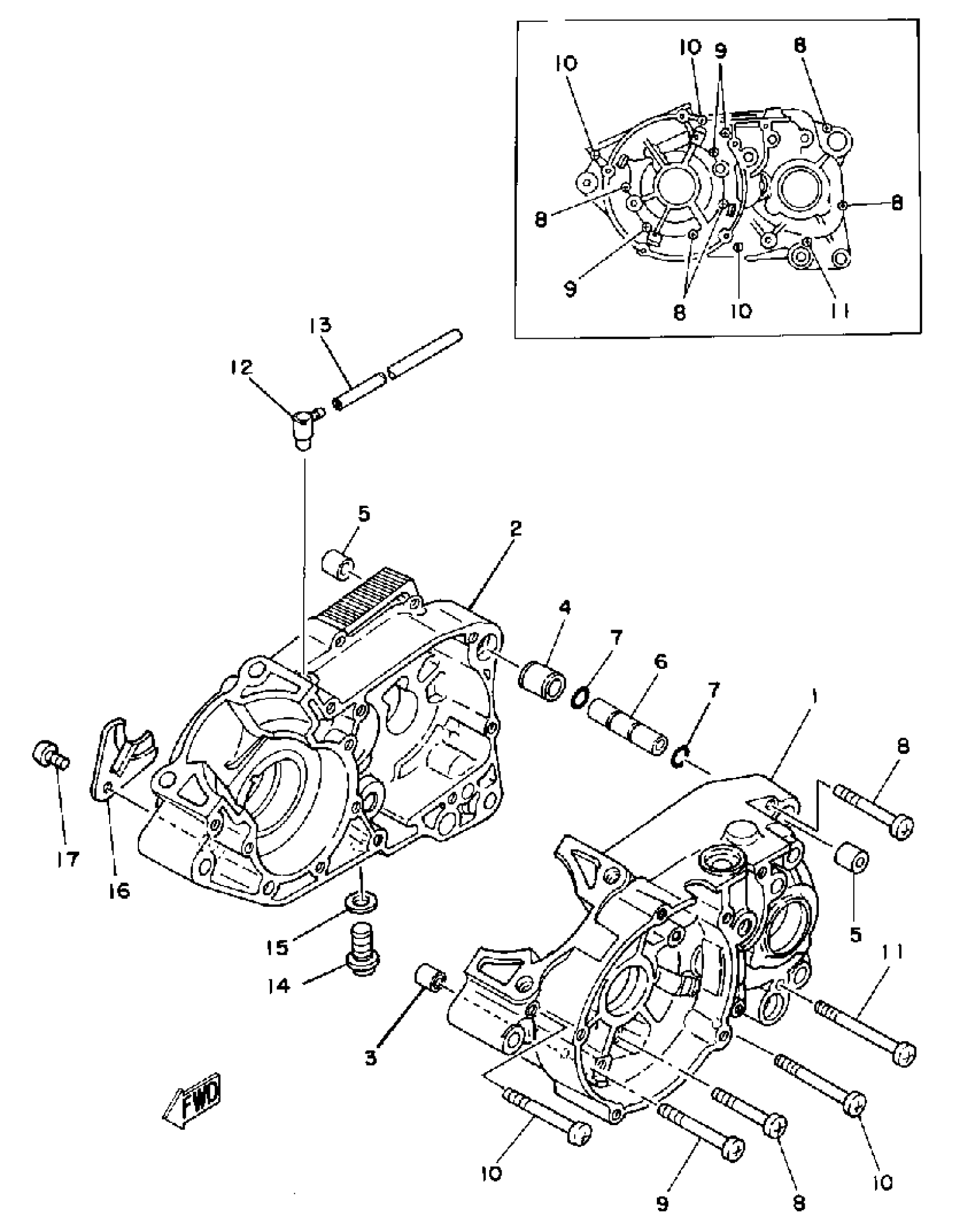

Yamaha IT125H (IT125) 1981 CRANKCASE Diagram

CRANKCASE 1 (1W1-15111-00)

CRANKCASE 2 (1W1-15121-01)

PIN, DOWEL(3VD)

PIN, DOWEL

DAMPER

SPACER, ENGINE MOUNT

O-RING (P95)

SCREW, PAN

SCREW, PAN

SCREW, PAN HEAD

SCREW, PAN

BREATHER

HOSE (L1050)

PLUG STRAIGTSCREW 132153510000

GASKET (3JD1)

HOLDER (R.H)

SCREW, PAN
