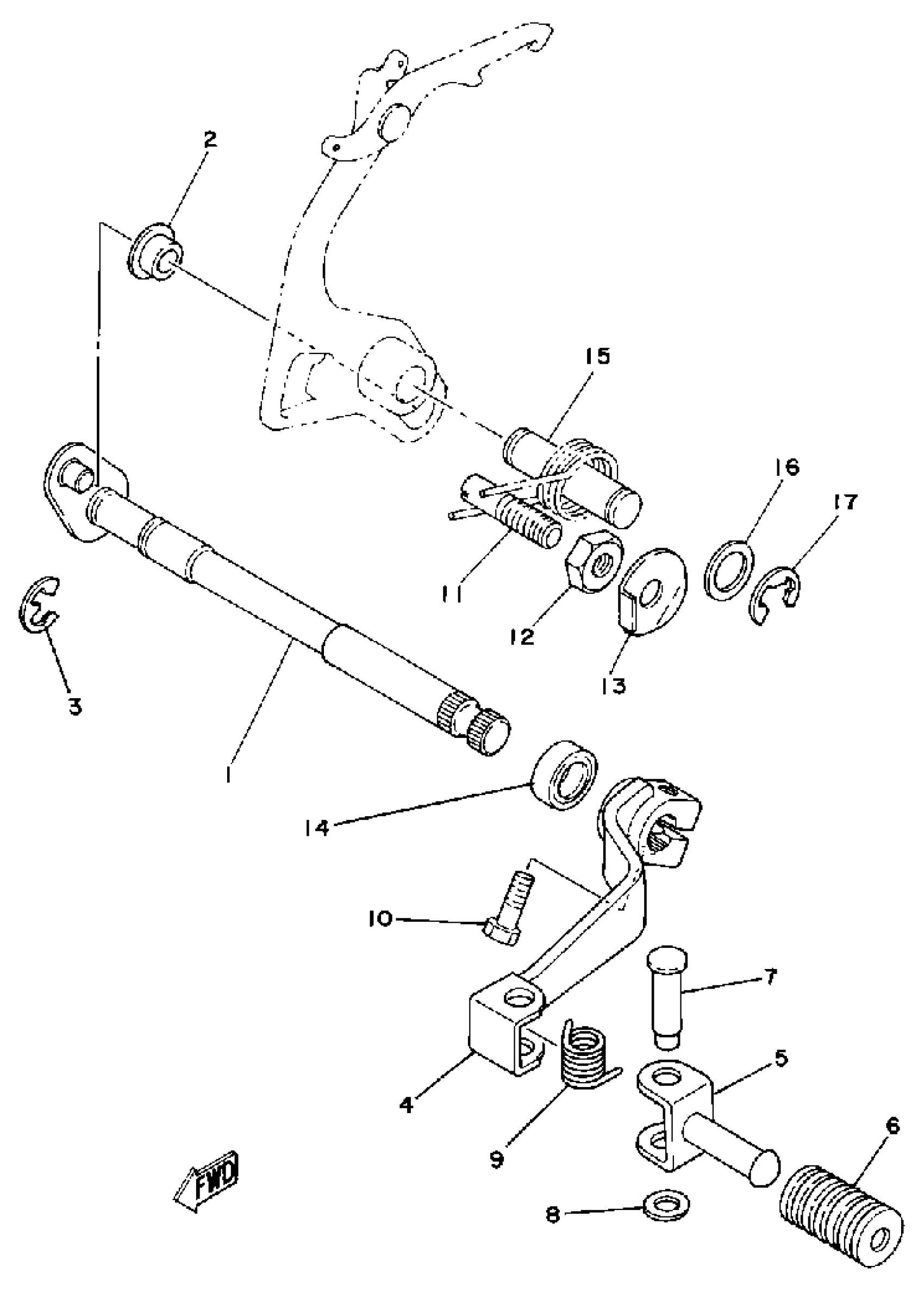

Yamaha IT125G (IT125) 1980 SHIFT SHAFT - PEDAL Diagram

#

Description
Price

1

. SHIFT SHAFT ASSEMBLY 1

1W1-18101-03-00

Unavailable

2

ROLLER, CHANGE LEVER

401-18178-00-00

$19.99

3

CIRCLIP

99006-10600-00

$9.49

4

SHIFT PEDAL ASSY

2HF-18110-02-00

$53.99

5

PEDAL, SHIFT

3R8-18162-00-00

Unavailable

6

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

7

PIN (90243-08017)

90243-08019-00

Unavailable

8

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

9

SPRING, TORSION

90508-20415-00

Unavailable

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

SCREW (1W1)

90149-08111-00

Unavailable

12

NUT (583)

90170-08193-00

$4.29

13

WASHER LOCK 248181390000

90215-08014-00

$5.60

14

OIL SEAL

93101-12173-00

$13.49

15

SHAFT, CHANGE STOPPER SPRING

1W1-18197-01-00

Unavailable

16

WASHER (692)

90201-12M34-00

Unavailable

17

CIRCLIP

99006-10600-00

$9.49
