1980 Yamaha IT125 (IT125G) Shift CAM - Fork Diagram

← All diagrams

Find the part on the Shift CAM - Fork diagram for your 1980 Yamaha IT125 (IT125G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

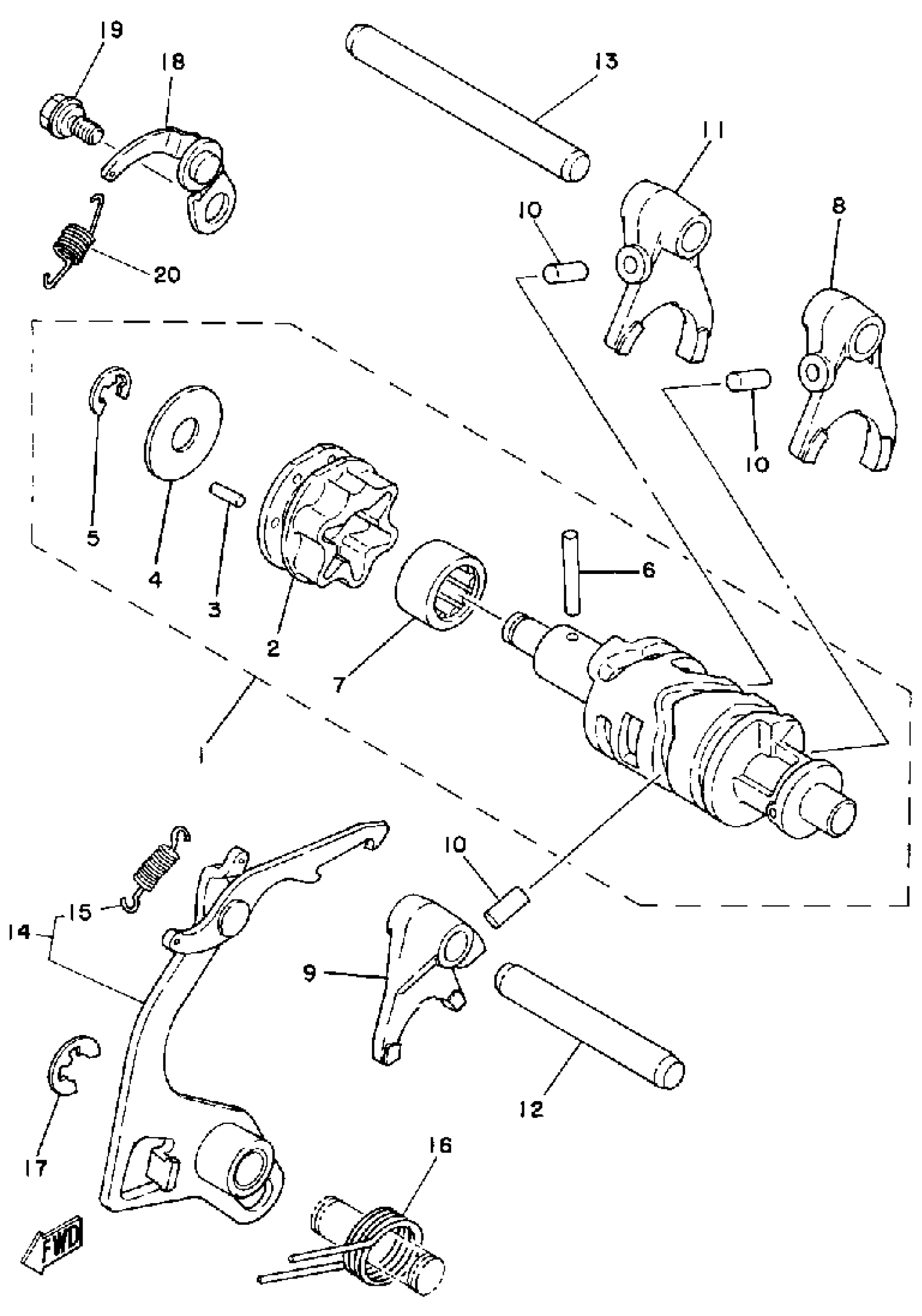

1980 Yamaha IT125 (IT125G) Shift CAM - Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

(2W6-18540-00-00)

1
Out of stock

2

SEGMENT, SHIFT CAM

1W1-18185-00-00

—
Out of stock

3

PIN,DOWEL (168)

93604-12037-00

1
Out of stock

4

PLATE, SIDE

1W1-18561-00-00

1

$6.38

In stock

5

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

6

PIN,DOWEL (611)

93604-30018-00

1

$2.45

In stock

7

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

1

$31.48

In stock

8

FORK, SHIFT 1

2W6-18511-00-00

1
Out of stock

9

FORK, SHIFT 2

2W6-18512-00-00

1
Out of stock

10

PIN STRAIGHT 257185520000

90250-06013-00

1
Out of stock

11

FORK, SHIFT 3

2W6-18513-00-00

1
Out of stock

12

BAR, SHIFT FORK GUIDE 1

2A6-18531-00-00

—

$24.58

In stock

13

BAR, SHIFT FORK GUID 2

2A6-18535-00-00

—

$29.34

In stock

14

SHIFT LEVER ASSY

4F2-18120-00-00

—

$40.88

In stock

15

SPRING, TENSION (1W1)

90506-08155-00

1

$9.17

In stock

16

SPRING, TORSION (1W1)

90508-32349-00

—

$8.72

In stock

17

CIRCLIP

99006-10600-00

—

$6.91

In stock

18

STOPPER LEVER ASSY

1W1-18140-00-00

—

$27.62

In stock

19

BOLT

90109-06190-00

—

$3.49

In stock

20

SPRING, TENSION (1W1)

90506-09156-00

—

$5.62

In stock
