1980 Yamaha IT125 (IT125G) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1980 Yamaha IT125 (IT125G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

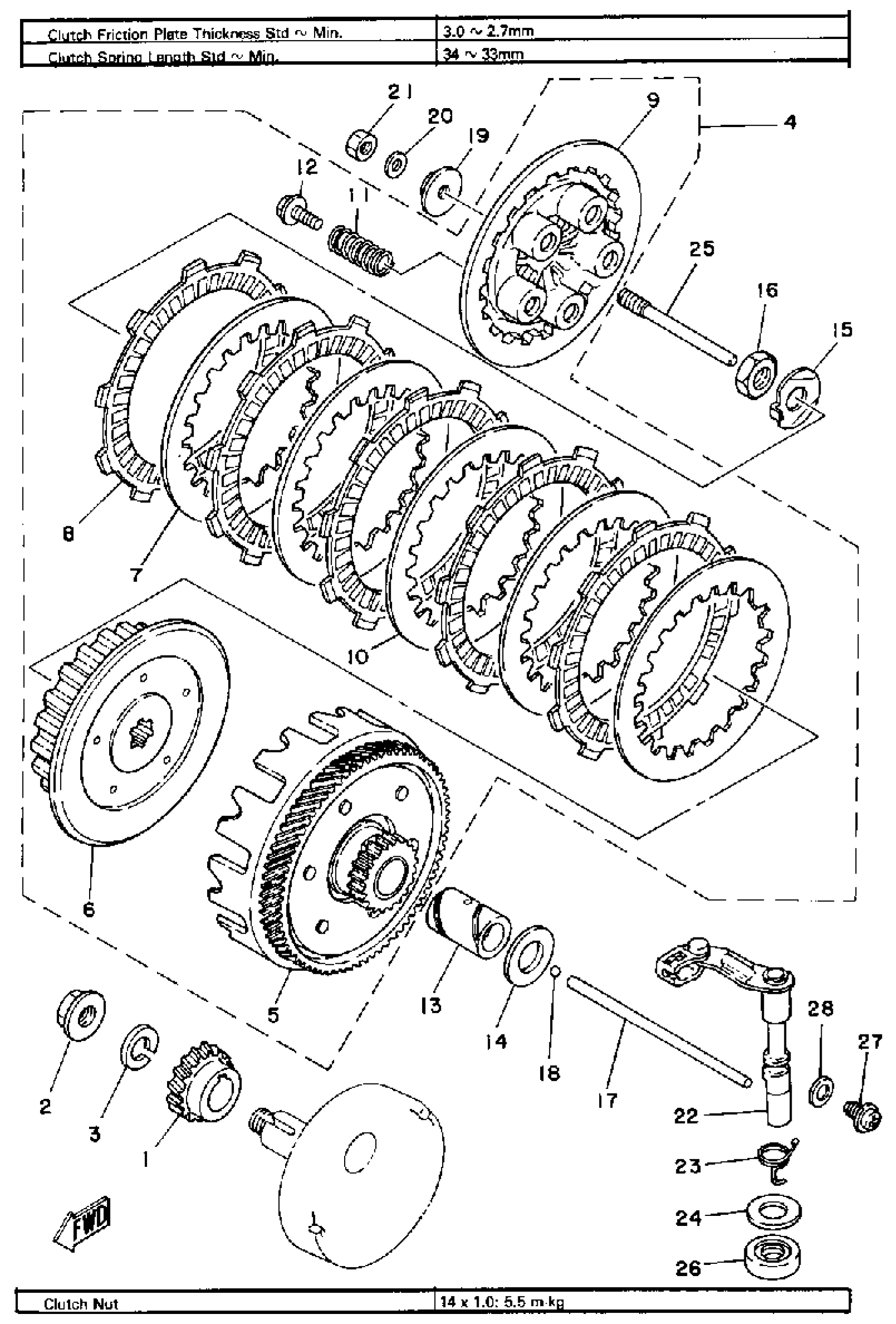

1980 Yamaha IT125 (IT125G) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRI DRIVE

1W1-16111-00-00

1
Out of stock

2

NUT(1EE)

90179-12659-00

1

$5.37

In stock

3

WASHER, SPRING (1W1)

90204-12007-00

1

$6.92

In stock

4

CLUTCH ASSEMBLY

(2X3-16300-00-00)

1
Out of stock

5

. PRIMARY DRIVEN GEAR COMP (71T)

1W1-16150-01-00

1
Out of stock

6

. BOSS, CLUTCH

1G8-16371-00-00

1
Out of stock

7

. PLATE, CLUTCH 2

137-16325-00-00

1
Out of stock

8

PLATE, FRICTION

537-16321-00-00

1

$15.04

In stock

9

. PLATE, PRESSURE 1

1W1-16351-00-00

1
Out of stock

10

PLATE, CLUTCH 2

137-16325-80-00

1
Out of stock

11

SPRING (137-16333-00)

90501-20122-00

1
Out of stock

12

SCREW, WITH WASHER (537)

90159-05011-00

1

$2.45

In stock

13

SPACER (525)

90560-17147-00

—

$25.35

In stock

14

WASHER, PLATE (4V2)

90201-174E1-00

1

$6.71

In stock

15

WASHER, LOCK (2K6)

90215-14204-00

1
Out of stock

16

NUT, HEXAGON

90170-14171-00

—

$7.26

In stock

17

ROD, PUSH 2

2X3-16357-00-00

—
Out of stock

18

BALL

93503-16003-00

—

$2.14

In stock

19

PLATE, PUSH

1W1-16358-01-00

—

$20.06

In stock

20

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

21

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

22

PUSH LEVER ASSEMBLY

2X3-16380-01-00

1
Out of stock

23

SPRING, TORSION (1W1)

90508-20345-00

—
Out of stock

24

WASHER PLATE 150251530000

90201-14217-00

—
Out of stock

25

ROD, PUSH

1W1-16356-02-00

—
Out of stock

26

OIL SEAL (14X25X5-2H7)

93104-14059-00

—
Out of stock

27

SCREW (1M1)

90149-08108-00

—

$12.06

In stock

28

GASKET(3AJ)

90430-08204-00

—

$6.36

In stock
