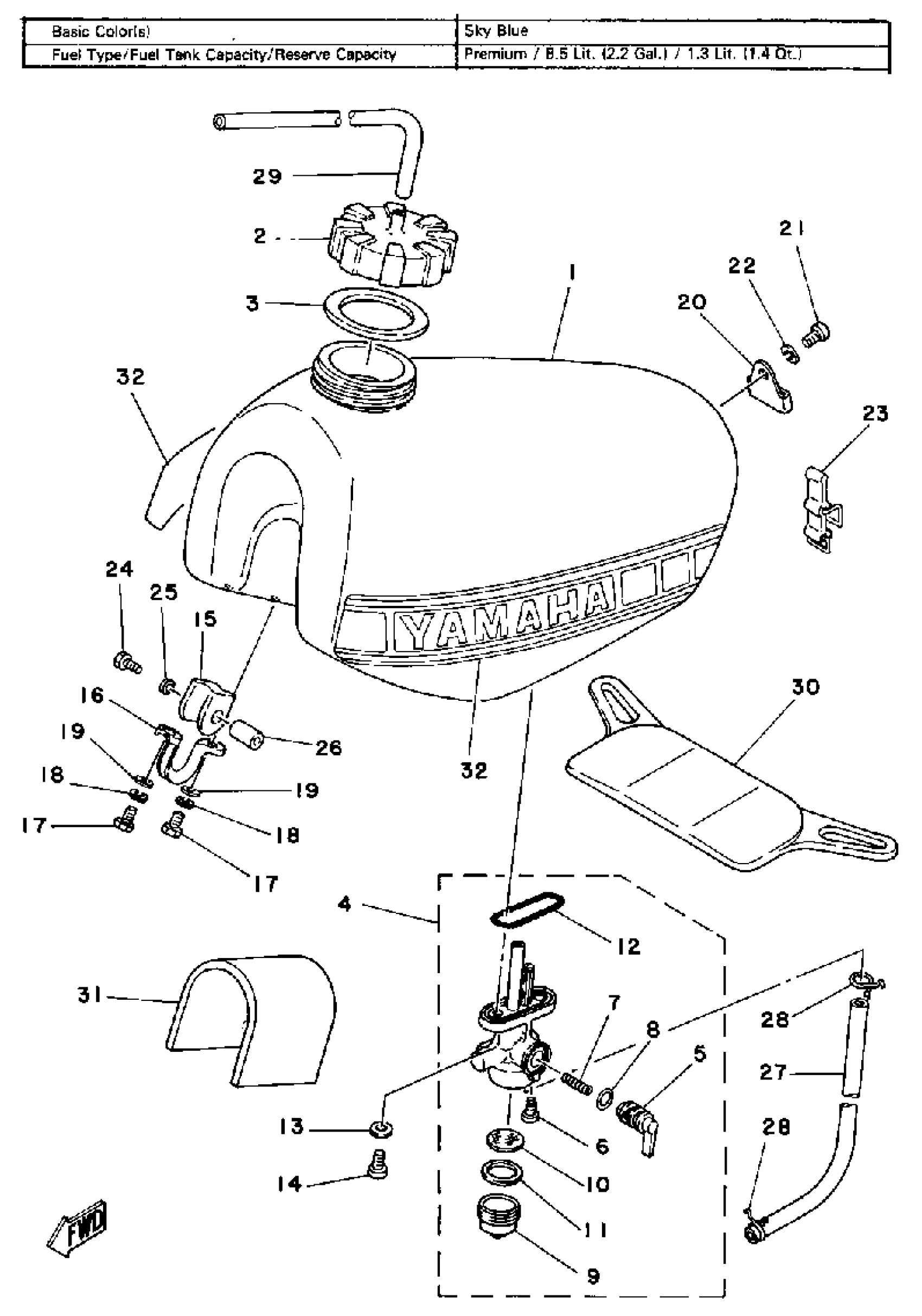

Yamaha IT125G (IT125) 1980 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

(3R9-24110-00-00)

Unavailable

2

. BODY, CAP

1K7-24611-01-00

Unavailable

3

GASKET,CAP

3R9-24612-00-00

Unavailable

4

FUEL COCK ASSEMBLY 1

3R9-24500-00-00

Unavailable

5

LEVER, COCK

(2W6-24524-00-00)

Unavailable

6

. SCREW, LVR FITTING

2N3-24535-00-00

Unavailable

7

. SPRING

2W6-24529-00-00

Unavailable

8

O-RING

2N3-24528-00-00

Unavailable

9

CUP, FILTER

(357-24521-10-00)

Unavailable

10

. GASKET

357-24522-10-00

Unavailable

11

. NET, FILTER

2W6-24561-00-00

Unavailable

12

O-RING

2W6-24512-00-00

$7.99

13

WASHER, PLATE(3MB)

90202-05187-00

$1.38

14

SCREW 256241430000

90149-06011-00

$5.60

15

DAMPER, TANK LOCATING 2

1W1-24182-01-00

$32.99

16

HOLDER, DAMPER

1W1-24144-01-00

Unavailable

17

BOLT (661)

97013-06012-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

BRACKET, FUEL TNK 2

2K5-24192-00-00

Unavailable

21

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

BAND, TNK FITTING 1

2K5-24173-00-00

Unavailable

24

BOLT, WITH WASHER

90119-06022-00

Unavailable

25

WASHER, PLATE

90201-06747-00

Unavailable

26

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

27

HOSE (L198)

90445-11293-00

Unavailable

28

CLIP

90467-100A1-00

Unavailable

29

HOSE (L545)

90445-09361-00

Unavailable

30

DAMPER, LOCATING 1

2K5-24181-00-00

Unavailable

31

DAMPER, LOCATING 3

1W1-24183-00-00

Unavailable

32

GRAPHIC SET

(3R9-24240-10-00)

Unavailable
