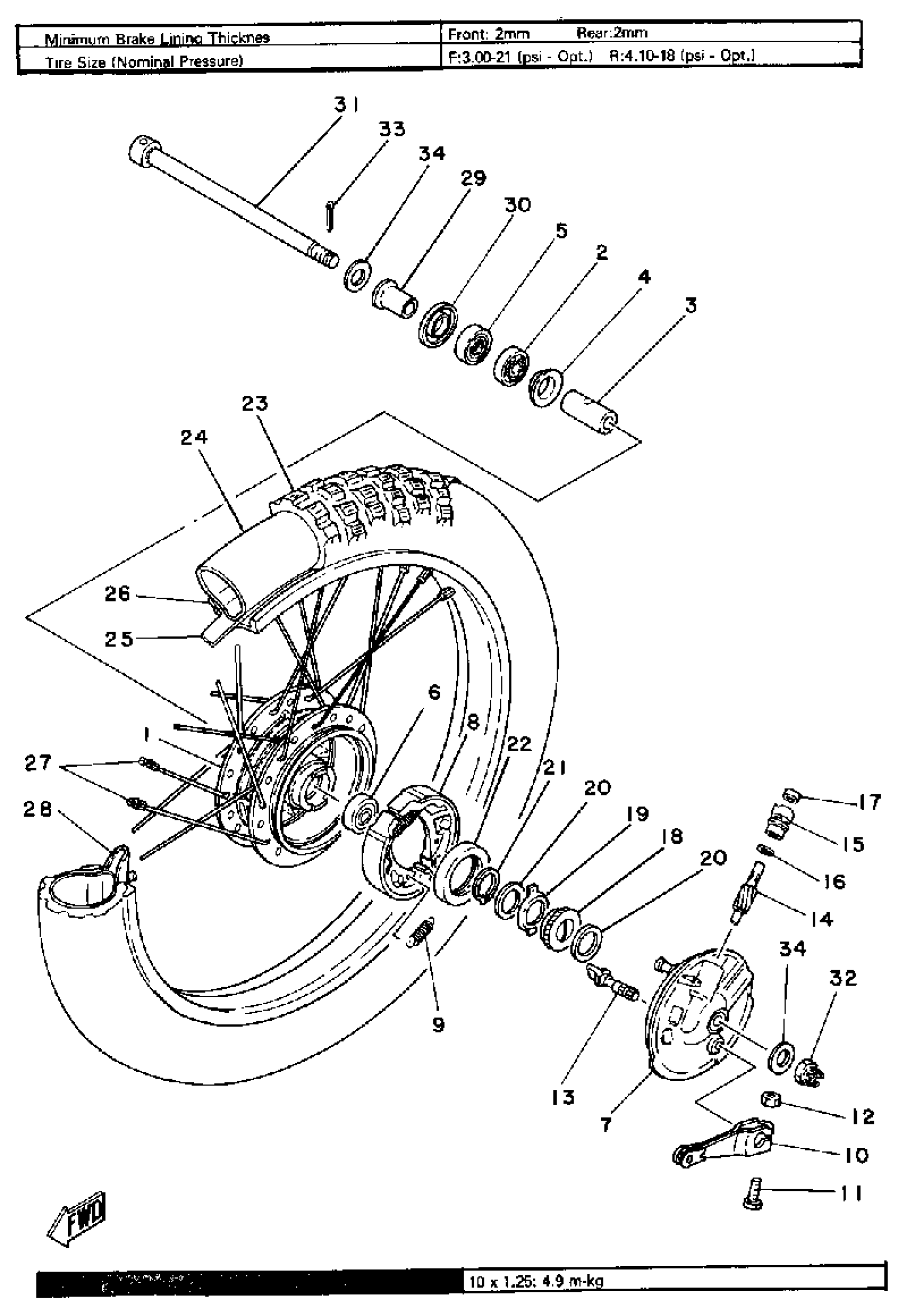

Yamaha IT125G (IT125) 1980 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

248-25111-00-98

Unavailable

2

BEARING

93306-30102-00

$39.99

3

SPACER

90560-12138-00

Unavailable

4

FLANGE, SPACER

109-25315-00-00

$7.99

5

OIL SEAL (18X37X8-109)

93102-18008-00

$25.99

6

BEARING

93306-30102-00

$39.99

7

PLATE, BRAKE SHOE

(3R9-25121-00-98)

Unavailable

8

BRAKESHOE SET

22F-W2534-00-00

Unavailable

9

SPRING, TENSION (566).

90506-16150-00

$9.49

10

LEVER, CAMSHAFT 1 (401-25155-00)

401-25155-11-00

Unavailable

11

BOLT, HEXAGON (538)

90101-06278-00

$2.17

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

CAM SHAFT

122-25351-02-00

Unavailable

14

GEAR, METER

(3R9-25138-00-00)

Unavailable

15

BUSHING

109-25136-00-00

$10.99

16

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

17

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

18

GEAR, DRIVE

(3R9-25135-00-00)

Unavailable

19

CLUTCH, METER

183-25149-00-00

Unavailable

20

WASHER, PLATE 1832514700

90201-20269-00

Unavailable

21

CIRCLIP(1AR)

99009-20400-00

Unavailable

22

SEAL,OIL

93105-47007-00

Unavailable

23

BS 300X21 M21

(94130-21554-00)

Unavailable

24

TUBE, FRONT (2A6)

94227-21123-00

Unavailable

25

BAND, RIM (2A6)

94330-21084-00

Unavailable

26

RIM 1.60X21

94416-21265-00

Unavailable

27

SPOKE SET, FRONT

345-25104-01-00

Unavailable

28

SPACER, BEAD

1T1-25194-00-00

Unavailable

29

COLLAR (462)

90387-12265-00

Unavailable

30

COVER, HUB DUST

2K5-25118-00-00

Unavailable

31

SHAFT, WHEEL

353-25381-00-00

Unavailable

32

NUT 3532518200

90171-10004-00

Unavailable

33

PIN, COTTER

91490-20025-00

Unavailable

34

WASHER, PLATE

90201-12047-00

Unavailable
