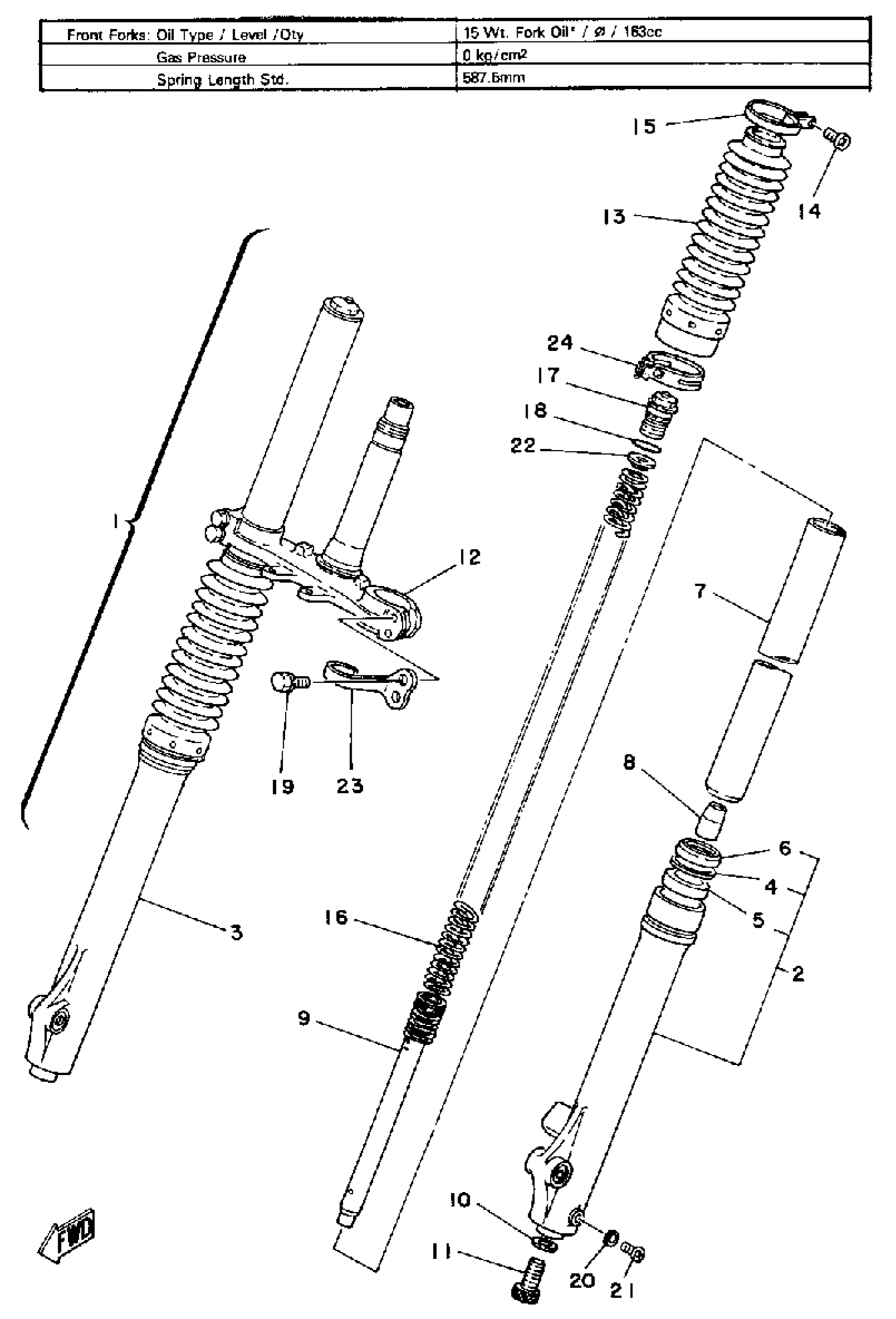

Yamaha IT125G (IT125) 1980 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(3R9-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(3R9-23126-00-00)

Unavailable

3

TUBE, OUTER 2

(3R9-23136-00-00)

Unavailable

4

RING, SNAP

15E-23153-00-00

Unavailable

5

OIL SEAL

2K5-23145-00-00

Unavailable

6

DUST SEAL

3Y6-23144-00-00

Unavailable

7

INNER TUBE 1

(2K5-23110-00-00)

Unavailable

8

SPINDLE

2K5-23173-00-00

$35.99

9

CYLINDER, FRTFRK

(2K5-23170-00-00)

Unavailable

10

GASKET

509-23158-L0-00

$16.49

11

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

12

UNDER BRACKET

(3R9-23340-00-33)

Unavailable

13

. BOOT, FRONT FORK

2K5-23191-M0-00

Unavailable

14

SCREW

509-23194-L0-00

$4.52

15

BAND, BOOT

2K5-23192-00-00

$22.99

16

SPRING, FRONT FORK

(3R9-23141-00-00)

Unavailable

17

BOLT, CAP

(2K5-23111-00-00)

Unavailable

18

PACKING(O-RING)

146-23114-00-00

Unavailable

19

. BOLT, HEXAGON SOCKET HEAD

5X6-23181-L0-00

Unavailable

20

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

21

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

21

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

22

. SEAT, SPRING UPPER

256-23142-60-00

Unavailable

23

GUIDE, WIRE

3R4-23389-00-00

Unavailable

24

HOLDER, CABLE 1

(2K5-23318-00-00)

Unavailable
