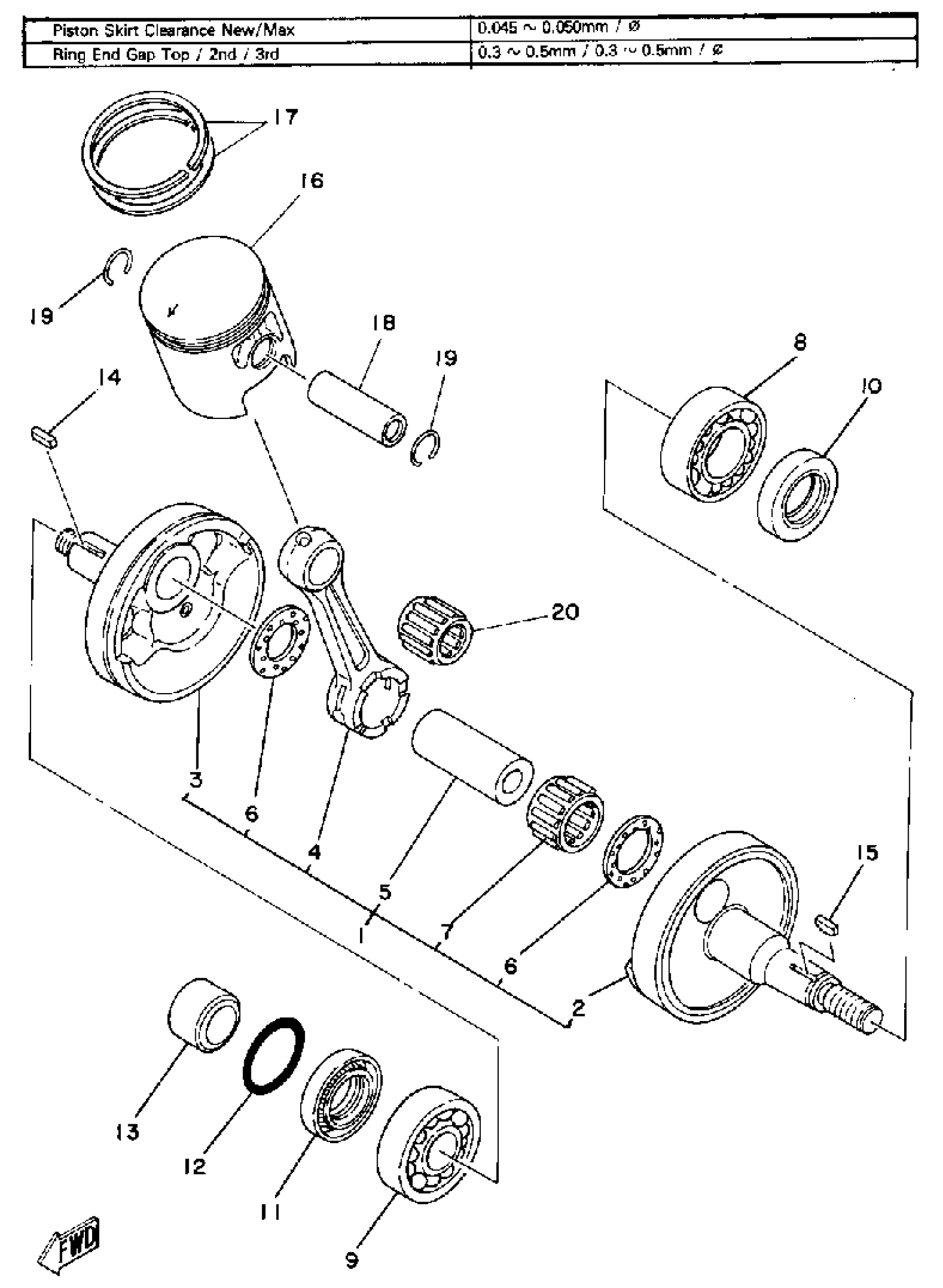

Yamaha IT125G (IT125) 1980 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

3R9-11400-00-00

Unavailable

2

CRANK (L.H)

1W1-11412-01-00

Unavailable

3

CRANK (R.H)

1W1-11422-01-00

Unavailable

4

. ROD, CONNECTING

3R2-11651-01-00

Unavailable

5

PIN, CRANK 1

3M5-11681-00-00

$24.99

6

WASHER (29L)

90209-22248-00

Unavailable

7

BEARING (3R3)

93310-422H0-00

Unavailable

8

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$40.99

9

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

$65.99

10

OIL SEAL (5V6)

93103-25125-00

Unavailable

11

OIL SEAL (28X40X8-132)

93103-28011-00

$14.99

12

O-RING(3KX)

93210-180A6-00

$7.49

13

COLLAR, DISTANCE (525)

90387-20488-00

$24.99

14

KEY, STRAIGHT 3531154600

90282-05005-00

$10.49

15

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

16

PISTON STD

3R9-11631-00-96

Unavailable

16

PISTON 1 O/S 0.25

3R9-11635-00-00

Unavailable

16

PISTON 2 O/S 0.50

3R9-11636-00-00

Unavailable

16

PISTON 3 O/S 0.75

3R9-11637-00-00

Unavailable

16

PISTON 4 O/S 1.00

3R9-11638-00-00

Unavailable

17

PISTON RINGSET STD

3R9-11610-00-00

Unavailable

17

PISTON RINGSET 1ST

3R9-11610-10-00

Unavailable

17

PISTON RINGSET 2ND

3R9-11610-20-00

Unavailable

17

PISTON RINGSET 3RD

3R9-11610-30-00

Unavailable

17

PISTON RINGSET 4TH

3R9-11610-40-00

Unavailable

18

PIN, PISTON

137-11633-10-00

Unavailable

19

CIRCLIP (1L9)

93450-17044-00

Unavailable

20

BEARING, NEEDLE (24X)

93310-216L2-00

Unavailable
