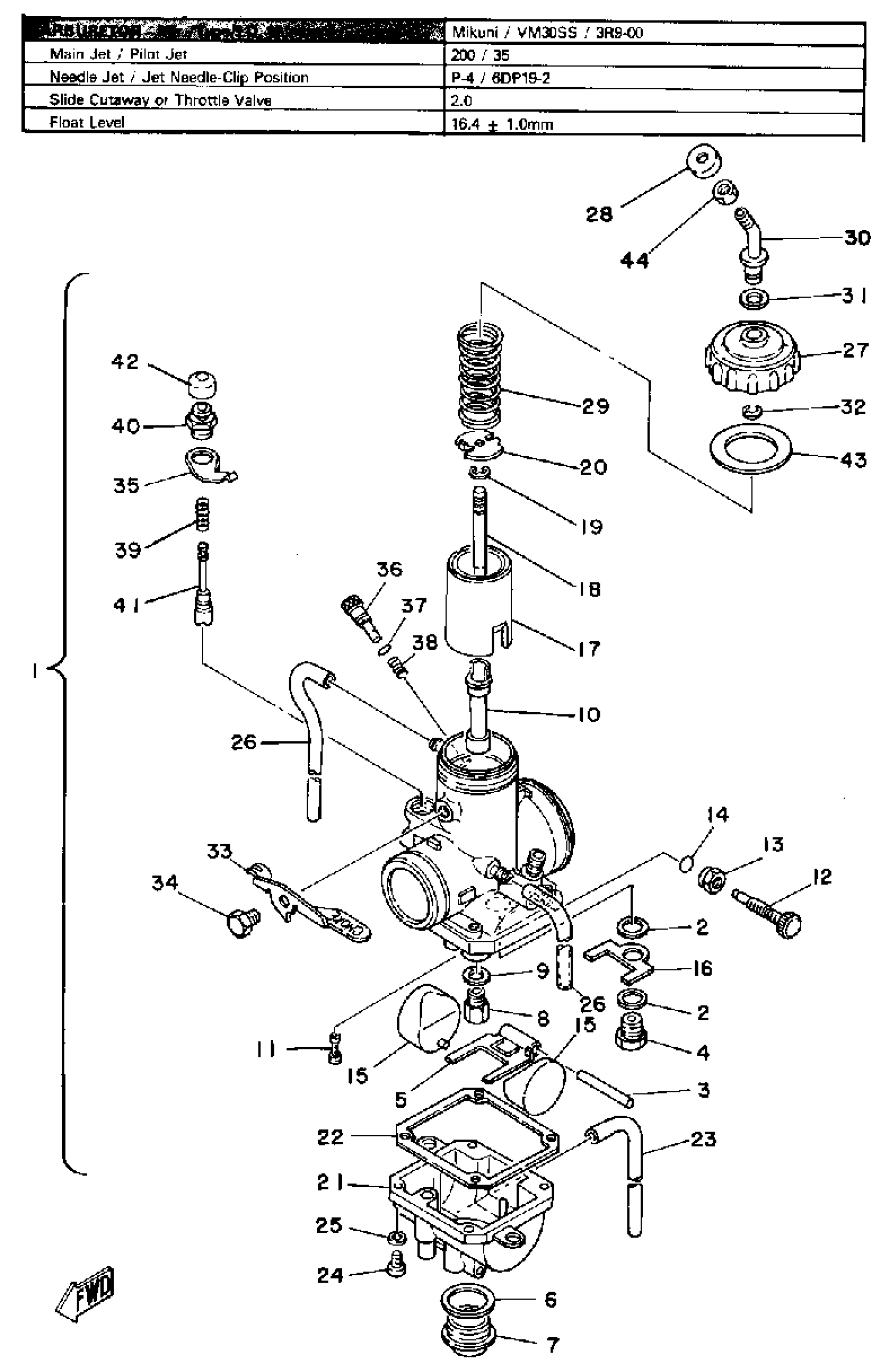

Yamaha IT125G (IT125) 1980 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

3R9-14101-00-00

Unavailable

2

WASHER, VALVE SEAT

214-14195-00-00

$7.99

3

PIN, FLOAT

537-14186-00-00

$7.99

4

VALVE SEAT ASSY

168-14190-28-00

$36.99

5

ARM, FLOAT

(2K5-14187-00-00)

Unavailable

6

WASHER,SCREW PLUG

278-14117-00-00

$8.99

7

PLUG, SCREW

(537-14115-00-00)

Unavailable

8

JET,MAIN #190

137-14143-38-A0

Unavailable

8

JET, MAIN #200

137-14143-40-A1

$13.49

8

JET, MAIN #210

137-14143-42-A1

Unavailable

9

WASHER, MAIN JET

(537-14153-00-00)

Unavailable

10

. NOZZLE, MAIN

278-14141-52-00

Unavailable

11

. JET, PILOT #40

193-14142-40-A1

Unavailable

12

. SCREW, THROTTLE

537-14122-00-00

Unavailable

13

. NUT, CABLE ADJUSTING

537-14161-00-00

Unavailable

14

O-RING

214-14147-00-00

Unavailable

15

. FLOAT

280-14185-00-00

Unavailable

16

PLATE

(537-14146-00-00)

Unavailable

17

VALVE, THROTTLE 1

(537-14112-20-00)

Unavailable

18

. NEEDLE

1J4-14116-19-00

Unavailable

19

CLIP

3FA-14137-00-00

Unavailable

20

. SEAT, SPRING

537-14136-00-00

Unavailable

21

BODY, FLOAT CHMBR 1

(537-14181-16-00)

Unavailable

22

. GASKET, FLOAT CHAMBER

537-14184-00-00

Unavailable

23

PIPE, AIR VENT

183-14197-01-00

Unavailable

24

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

25

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

26

. PIPE, OVERFLOW

310-14196-00-00

Unavailable

27

. TOP, MIXING CHAMBER

2K5-14158-00-00

Unavailable

28

CAP

3X3-14169-00-00

Unavailable

29

. SPRING, THROTTLE VALVE

537-14131-00-00

Unavailable

30

. GUIDE, CABLE

2K5-14155-00-00

Unavailable

31

GASKET

363-14198-00-00

Unavailable

32

CLIP

363-14137-00-00

Unavailable

33

. LEVER, STARTER 1

537-14175-00-00

Unavailable

34

. BOLT, HOLDING

537-14162-00-00

Unavailable

35

. PLATE, STARTER LEVER

537-14178-00-00

Unavailable

36

AIR SCREW SET

10W-14104-00-00

Unavailable

37

O-RING (493-CARB.)

354-14147-00-00

Unavailable

38

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

39

. SPRING, PLUNGER

500-14135-00-00

Unavailable

40

. CAP, PLUNGER

802-14174-00-00

Unavailable

41

. PLUNGER, STARTER

174-14171-00-00

Unavailable

42

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

43

. GASKET

2K5-14198-00-00

Unavailable

44

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable
