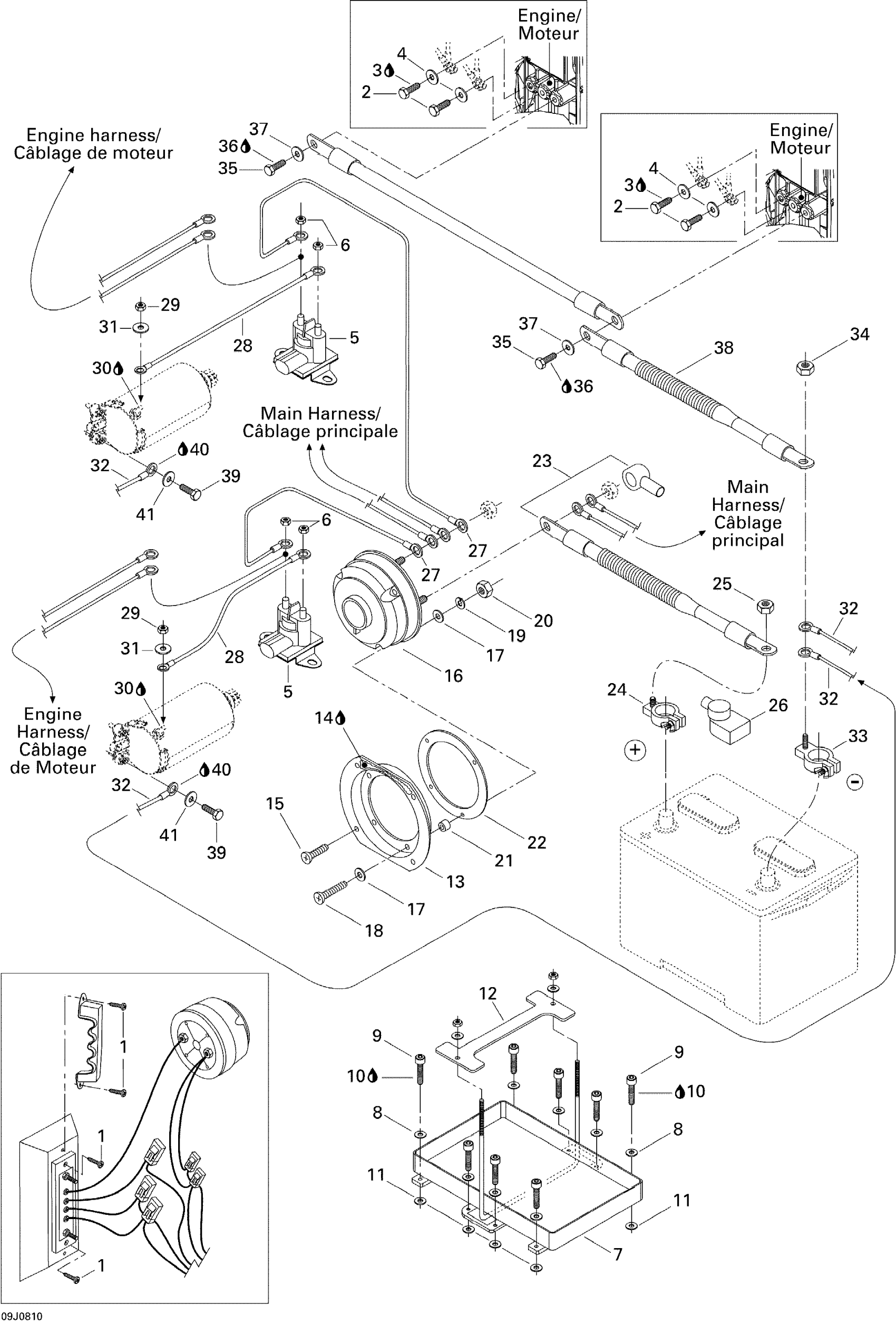

Sea-doo Islandia SE 430, 2008 10- Electrical System Diagram
#
1
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
2
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Stainless Flat Washer M6
234061600
$0.33
5
Starter Relay
278003012
$42.49
6
Hex. Elastic Stop Nut M6
232561600
$1.15
7
BATTERY SUPPORT KIT - Call your local BRP dealership
204470419
Unavailable
8
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
9
Socket Head Screw M6 X 25
205062560
$1.69
10
Loctite 243, 10 ml
293800060
$21.49
11
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
12
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
13
BATTERY SWITCH SUPPORT - Call your local BRP dealership
204470653
Unavailable
14
Silicone Sealant 51388, 300 ml
296000309
$36.99
15
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
16
BATTERY SWITCH - Call your local BRP dealership
204470814
Unavailable
17
Flat Washer M5, Stainless
234051600
$0.77
18
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership
205455060
Unavailable
19
Helical Lock Washer M5
234151601
$1.15
20
Hex. Nut M5
232051600
$1.15
21
NYLON SPACER - Call your local BRP dealership
204470330
Unavailable
22
SWITCH ADAPTOR - Call your local BRP dealership
204470813
Unavailable
23
POSITIVE CABLE, RED - Call your local BRP dealership
204470425
Unavailable
24
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
25
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
26
RED BOOT - Call your local BRP dealership
204470269
Unavailable
27
RED CABLE - Call your local BRP dealership
204470853
Unavailable
27
RED CABLE - Call your local BRP dealership | Starboard
204470838
Unavailable
28
Red Cable
204470852
Unavailable
28
Red Cable | Starboard
204471089
Unavailable
29
Hex. Elastic Stop Nut M6
232561600
$1.15
30
Not Available As Spare Part - Friction Washer
Unavailable
31
Stainless Flat Washer M6
234061600
$0.33
32
GROUND CABLE, PORT SIDE - Call your local BRP dealership
204470854
Unavailable
32
GROUND CABLE, STARBOARD - Call your local BRP dealership
204470840
Unavailable
33
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
34
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
35
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
36
Not Available As Spare Part - Friction Washer
Unavailable
37
Flat Washer M6, Stainless
234062600
$0.77
38
GROUND CABLE - Call your local BRP dealership
204470839
Unavailable
39
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
40
Not Available As Spare Part - Friction Washer
Unavailable
41
Stainless Flat Washer M6
234061600
$0.33
