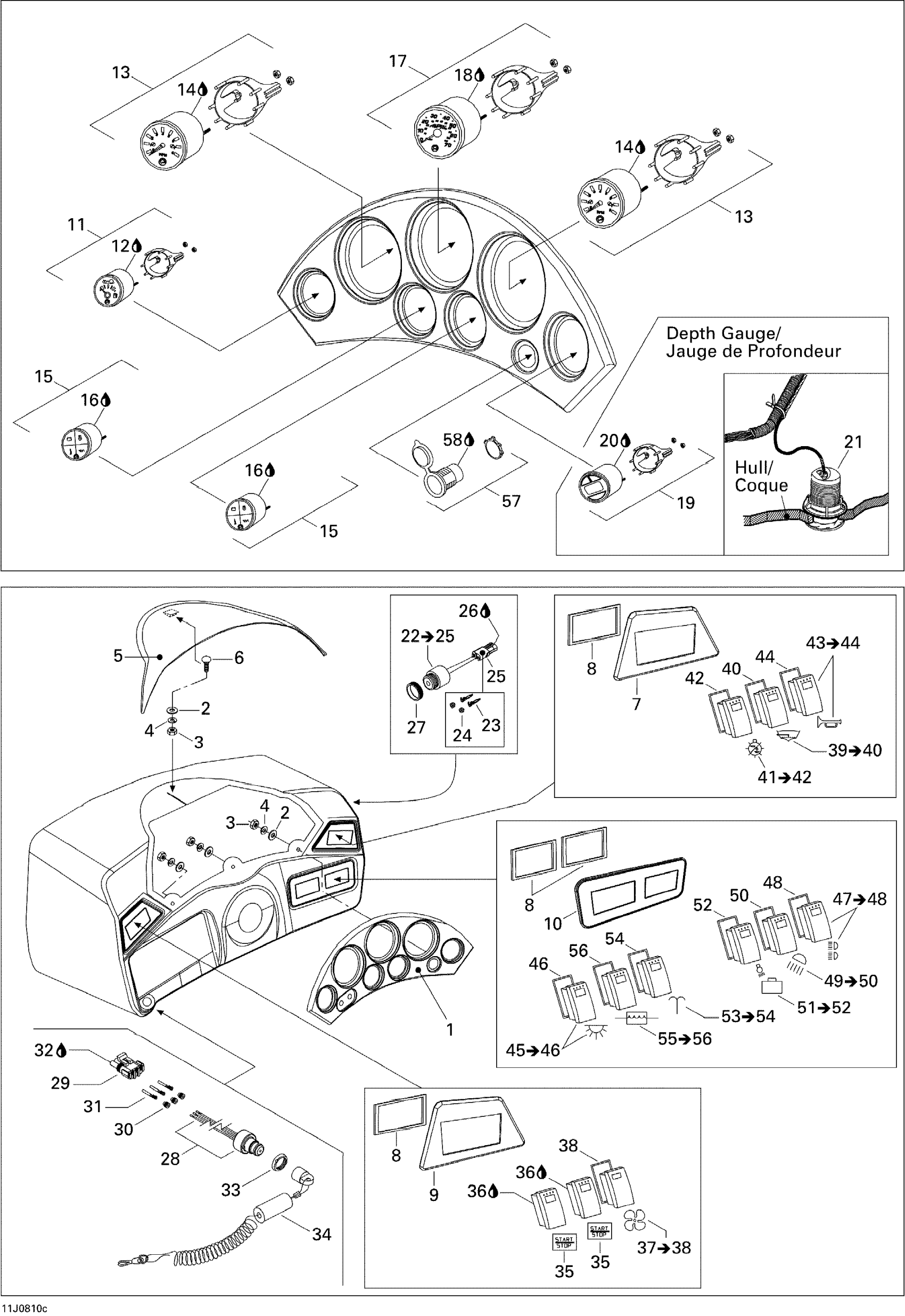

Sea-doo Islandia SE 430, 2008 10- Electrical Accessories 3 Diagram
#
1
Dash Panel
204471247
Unavailable
2
Flat Washer M6, Stainless
234062600
$0.77
3
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
4
Lock Washer 1/4”
211200025
$1.29
5
Dash Panel Top
204471136
Unavailable
6
Elevator Bolt
204000130
Unavailable
7
RH Switch Panel
204471025
Unavailable
8
LOCKING PLATE - Call your local BRP dealership
204470343
Unavailable
9
LH Switch Panel
204471026
Unavailable
10
Lower Switch Panel
204471051
Unavailable
11
FUEL GAUGE - Call your local BRP dealership
204471129
Unavailable
12
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
13
Tachometer Gauge
204471019
Unavailable
14
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
15
ENGINE WARNING GAUGE - Call your local BRP dealership
204471130
Unavailable
16
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
17
Speedometer
204470943
Unavailable
18
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
19
DEPTH GAUGE - Call your local BRP dealership
204470917
Unavailable
20
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
21
Depth Sensor
204471292
$194.99
22
Buzzer Ass'y
204470913
$92.99
23
Male Terminal | XT Models
278000222
$3.19
24
Wire Seal
278000218
$4.39
25
Female Housing, 2 Circuits
278000217
$9.59
26
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
27
Buzzer Nut
278000707
Unavailable
28
Safety Switch This part replaces 278002325.
278002773
$114.99
29
Male Housing, 3 Circuits
278000273
$9.59
30
Wire Seal
278000218
$4.39
31
Female Terminal
278000223
$3.19
32
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
33
Safety Nut (DESS Switch)
278002963
$3.28
34
Safety Lanyard
204471206
$56.99
35
START/STOP SWITCH - Call your local BRP dealership
204471178
Unavailable
36
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
37
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
38
Gasket
204470132
Unavailable
39
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
40
Gasket
204470132
Unavailable
41
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
42
Gasket
204470132
Unavailable
43
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
44
Gasket
204470132
Unavailable
45
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
46
Gasket
204470132
Unavailable
47
LIGHT SWITCH, BOARDING - Call your local BRP dealership | Includes 47 to 48
204470403
Unavailable
48
Gasket
204470132
Unavailable
49
LIGHT SWITCH, DOCKING - Call your local BRP dealership | Includes 49 to 50
204470404
Unavailable
50
Gasket
204470132
Unavailable
51
LIGHT SWITCH - Call your local BRP dealership | Includes 51 to 52
204470402
Unavailable
52
Gasket
204470132
Unavailable
53
SWITCH, SMALL POOL PUMP - Call your local BRP dealership | Includes 53 to 54
204470405
Unavailable
54
Gasket
204470132
Unavailable
55
SWITCH, PASSENGER WATER PUMP - Call your local BRP dealership | Includes 54 to 55
204470406
Unavailable
56
Gasket
204470132
Unavailable
57
DC Outlet
710001248
$37.99
58
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
