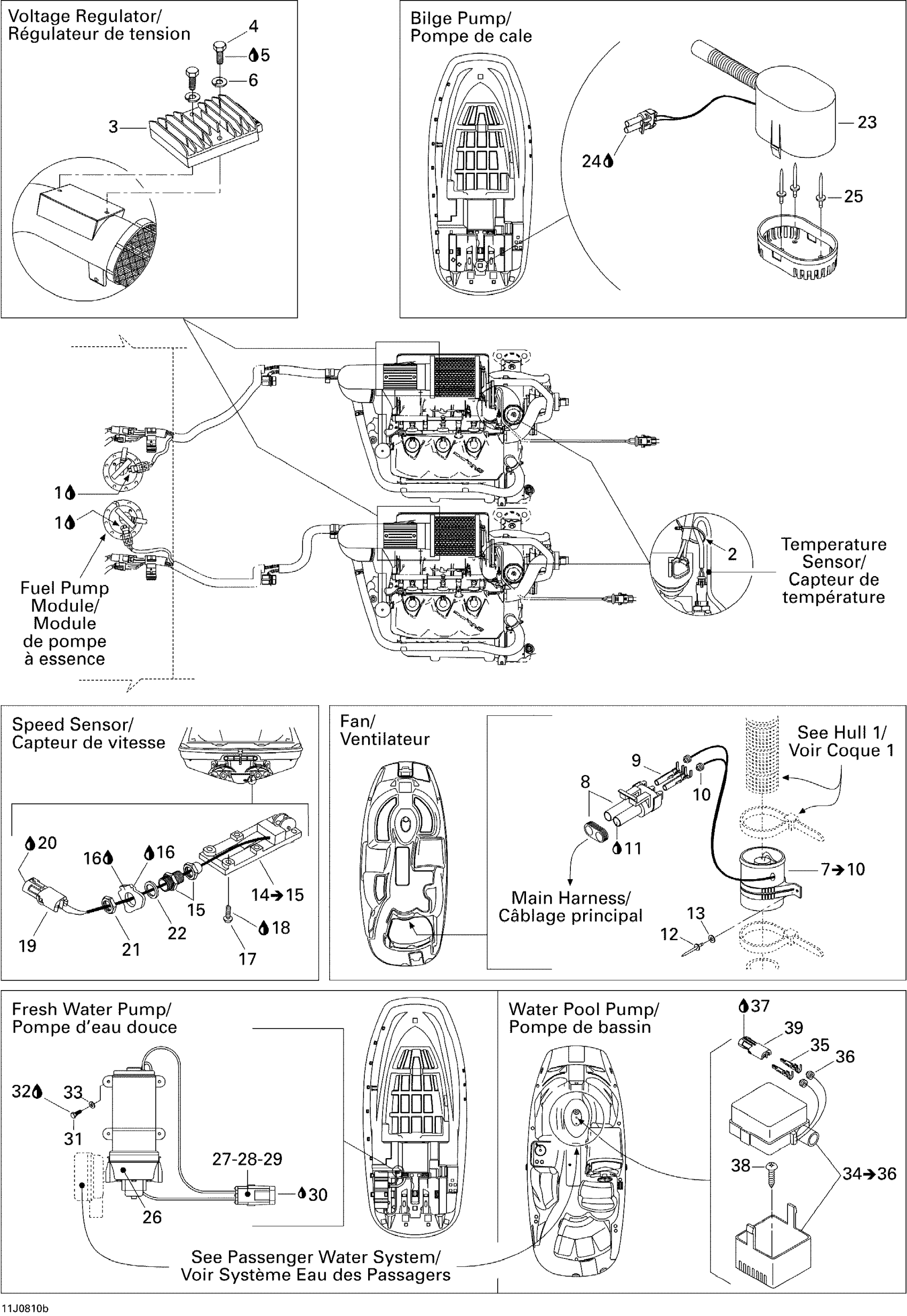

Sea-doo Islandia SE 430, 2008 Electrical Accessories 2 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Tie Wrap 142 mm

293750002

$1.25

3

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

4

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

204100226

Unavailable

5

Loctite 243, 10 ml

293800060

$21.49

6

Lock Washer 1/4”

211200025

$1.29

7

Fan Ass'y | Includes 44 to 47

204470108

$144.99

8

Male Connector, 2 Circuits

278000220

$15.49

9

Female Terminal

278000223

$3.19

10

Wire Seal

278000218

$4.39

11

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

12

Pop Rivet 3/16"

293150008

$0.50

13

Flat Washer 5 mm, Stainless

234052600

$0.77

14

Speed Sensor Ass'y | Includes 19 to 20

204471199

Unavailable

15

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

16

Silicone Sealant 51388, 300 ml

296000309

$36.99

17

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

18

Loctite 243, 10 ml

293800060

$21.49

19

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

22

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

23

Bilge Pump

204471431

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

25

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

26

FRESH WATER PUMP R4305-144K - Call your local BRP dealership

204470524

Unavailable

27

Female Housing, 2 Circuits

278000217

$9.59

28

Male Terminal | XT Models

278000222

$3.19

29

Wire Seal

278000218

$4.39

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

31

Hex. Screw M5 X 20

207152060

$1.47

32

Loctite 243, 10 ml

293800060

$21.49

33

Flat Washer M5, Stainless

234051600

$0.77

34

Water Pool Pump Ass’y | Includes 34 to 36

204470525

Unavailable

35

Male Terminal | XT Models

278000222

$3.19

36

Wire Seal

278000218

$4.39

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

38

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

39

Female Housing, 2 Circuits

278000217

$9.59
