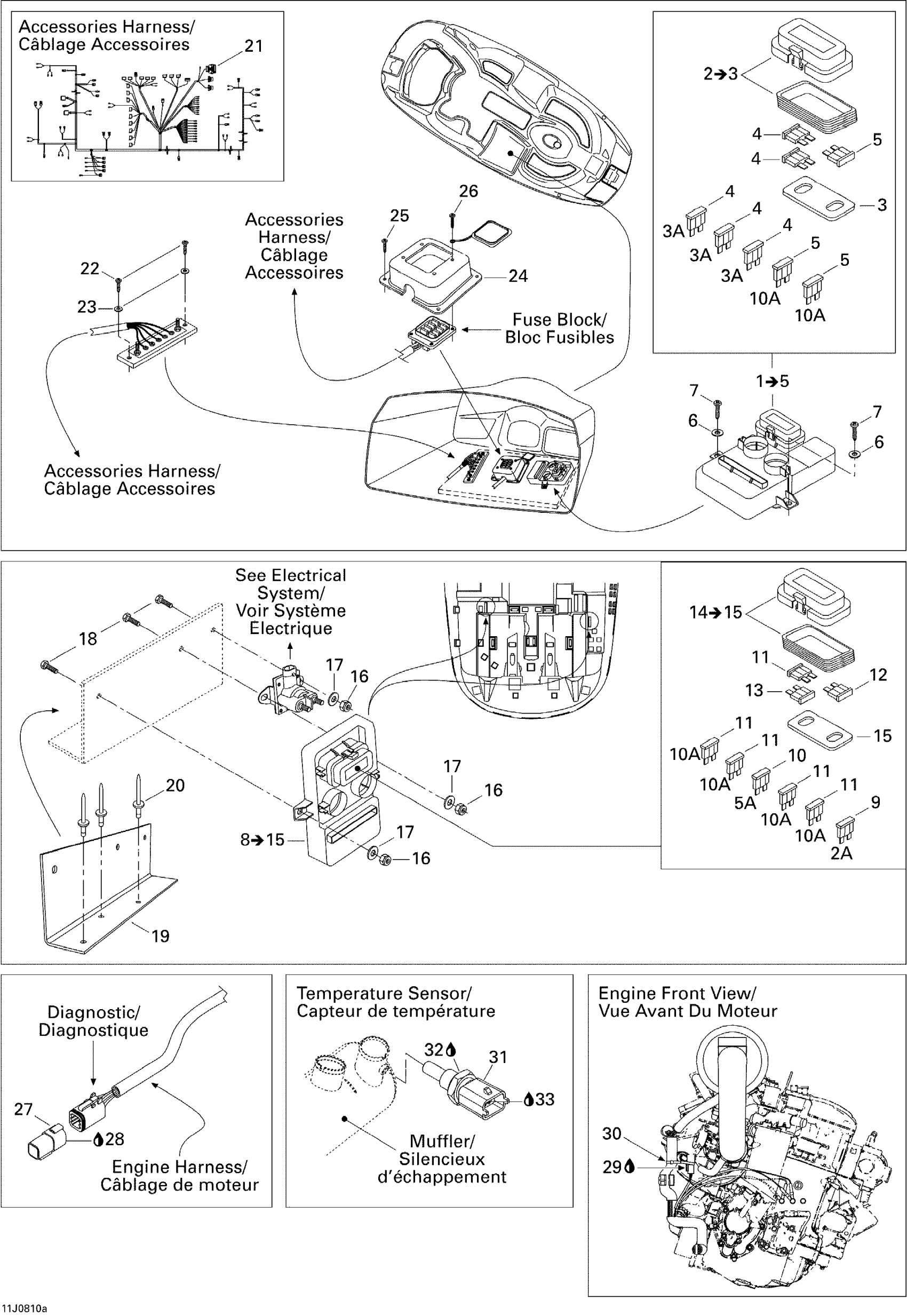

Sea-doo Islandia SE 430, 2008 10- Electrical Accessories 1 Diagram
#
Description
Price
1
Twin Engine Interface | Includes 1 to 5
204471263
Unavailable
2
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
3
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
4
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
5
Fuse, 10 Amperes | North America
278001197
$2.21
6
Flat Washer M6, Stainless
234062600
$0.77
7
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership
204100203
Unavailable
8
FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24
204470770
Unavailable
9
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
10
Fuse, 5 Amperes | CE
278000344
$3.28
11
Fuse, 10 Amperes | North America
278001197
$2.21
12
Fuse, 20 Amperes
409003900
$3.28
13
Fuse, 30 Amperes
410917200
$3.28
14
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
15
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
16
Hex. Elastic Stop Nut M6
232561600
$1.15
17
Flat Washer M6, Stainless
234062600
$0.77
18
Hex. Forming Screw M6 X 20
207162060
$1.29
19
BRACKET - Call your local BRP dealership
204471071
Unavailable
20
Avdel Rivet 3/16"
293150037
$0.56
21
Accessories Harness
204471234
Unavailable
22
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
23
Flat Washer 4 mm, Stainless
234041600
$1.15
24
FUSE BLOCK SUPPORT - Call your local BRP dealership
204471274
Unavailable
25
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
26
Pan Head Screw 10-32 X 1/2"
204100220
$2.51
27
Diagnostic Connector
278002704
$19.49
28
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
29
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
30
Tie-Rap 180 mm
414115200
$0.11
31
Temperature Sensor
278002895
$39.99
32
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
33
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
