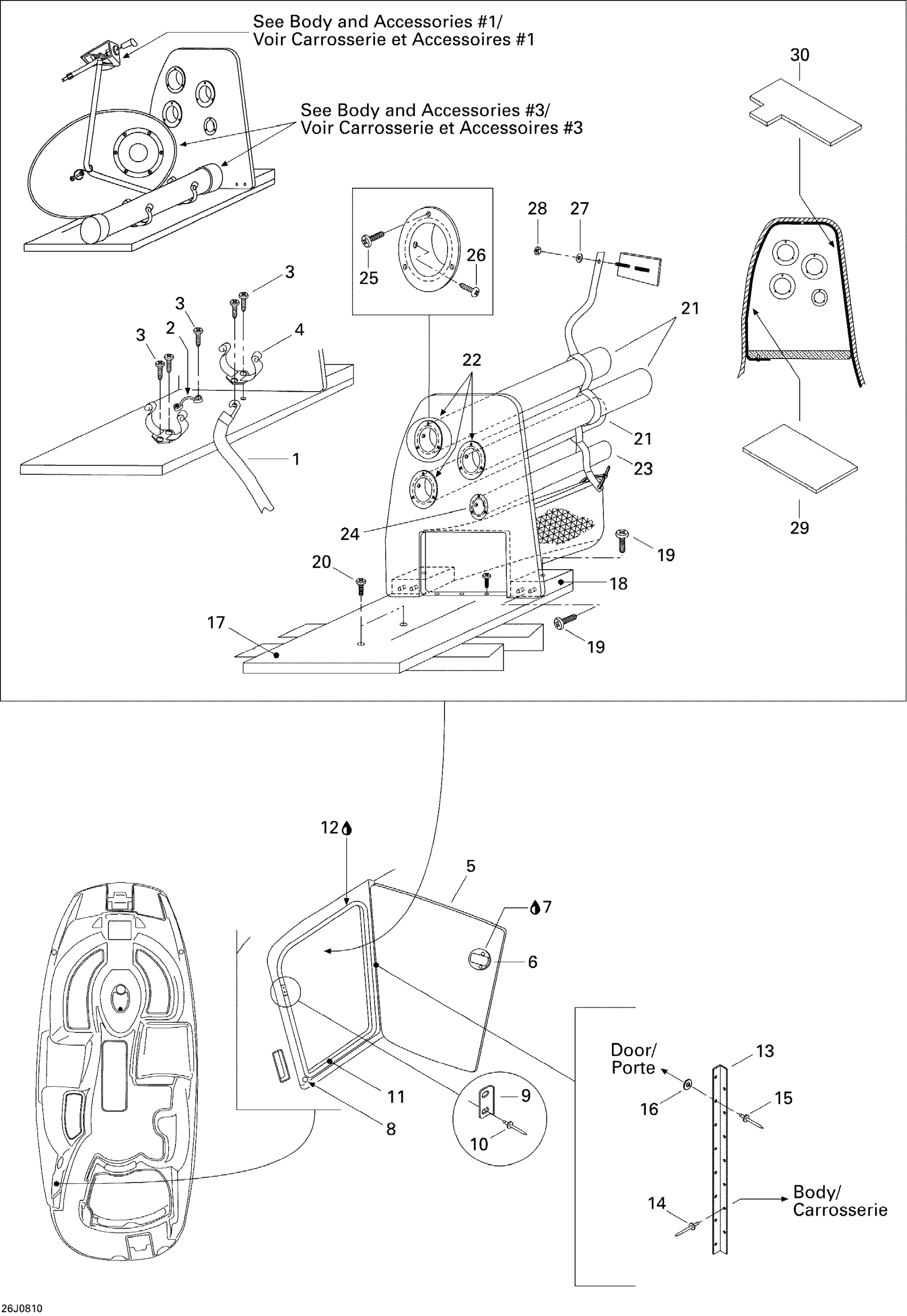

Sea-doo Islandia SE 430, 2008 Storage Compartment Diagram

#

Description
Price

1

ICE CHEST STRAP - Call your local BRP dealership

204070905

Unavailable

2

Strap Tie

204070234

Unavailable

3

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

4

POLE CLIP - Call your local BRP dealership | Challenger S

204070342

Unavailable

5

Storage Door

204072578

Unavailable

6

VERROU, WHITE - Call your local BRP dealership

204070063

Unavailable

7

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

8

BUMPER - Call your local BRP dealership

204070940

Unavailable

9

KEEPER - Call your local BRP dealership

204071926

Unavailable

10

Pop Rivet 3/16"

293150008

$0.50

11

Rubber Trim

204070752

Unavailable

12

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

13

Hinge

204071809

Unavailable

14

Pop Rivet 3/16"

293150014

$1.09

15

Pop Rivet 3/16"

293150008

$0.50

16

Flat Washer M5, Stainless

234051600

$0.77

17

Floor

204072698

Unavailable

18

Mounting Block

204070751

Unavailable

19

TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership

209643860

Unavailable

20

TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership

209643860

Unavailable

21

Storage Tube 3” X 58”

204071033

Unavailable

22

Tube Collar

204071199

Unavailable

23

STORAGE TUBE 2? X 58? - Call your local BRP dealership

204071201

Unavailable

24

Tube Collar

204071202

Unavailable

25

Phillips Tapping Screw

204100058

$0.66

26

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

27

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

28

Hex. Elastic Stop Nut M6

232561600

$1.15

29

DECK CARPET, OUTER - Call your local BRP dealership

204072425

Unavailable

30

Inner Deck Carpet

204072699

Unavailable
