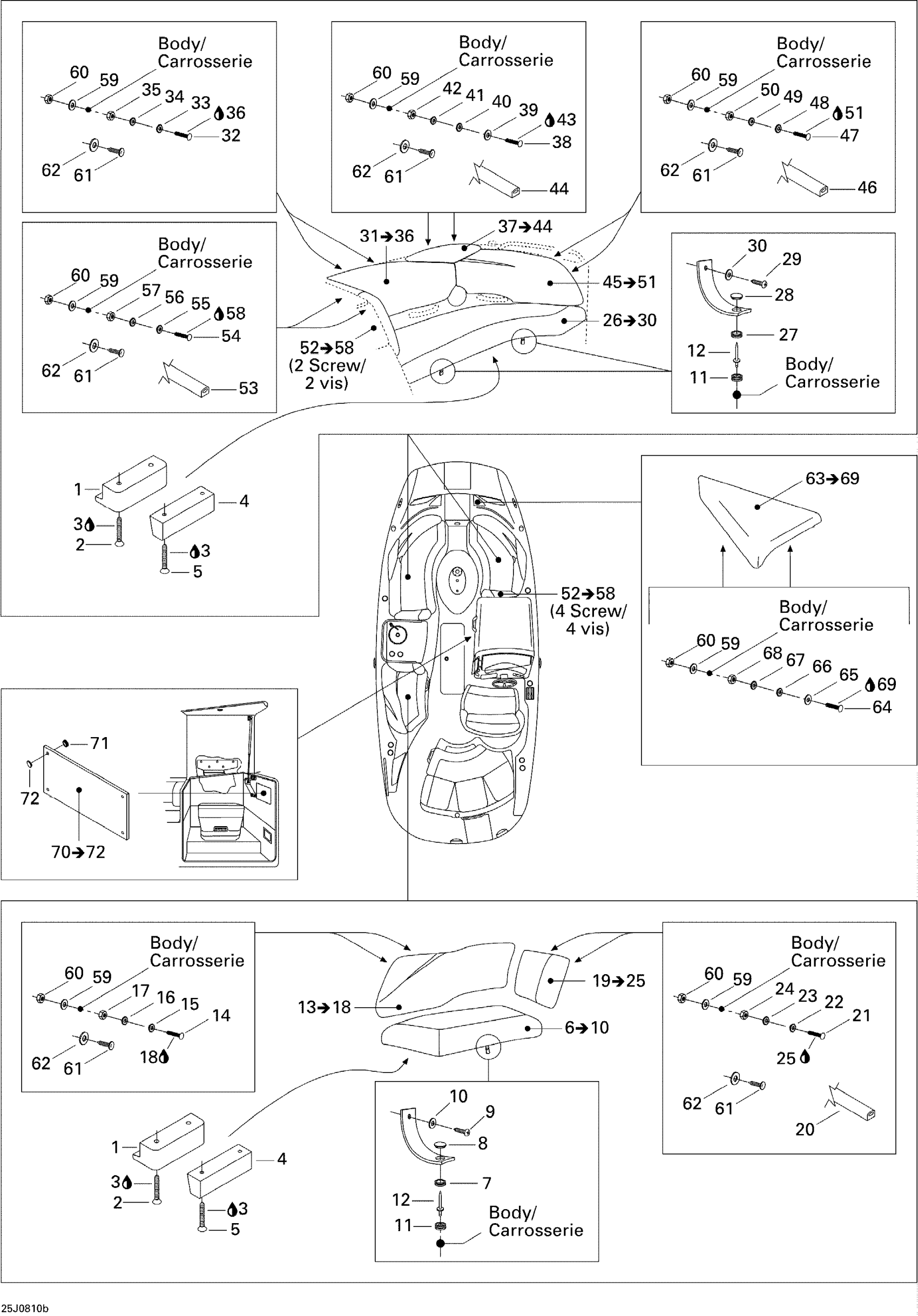

Sea-doo Islandia SE 430, 2008 09- Seat 2 Diagram
#
1
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
2
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
3
Loctite 243, 10 ml
293800060
$21.49
4
LATCH - Call your local BRP dealership
204611805
Unavailable
5
SCREW #8 X 1-1/4? - Call your local BRP dealership
204100081
Unavailable
6
CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | Includes 14 to 23
204613702
Unavailable
7
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
8
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
9
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
10
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
11
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
12
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
13
BACKREST CUSHION ASS'Y - Call your local BRP dealership | Includes 13 to 18
204613704
Unavailable
14
Elevator Bolt
204000130
Unavailable
15
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
16
External Serrated Lock Washer 6 mm
234461608
$1.15
17
Hex. Jam Nut
204100060
Unavailable
18
Loctite 243, 10 ml
293800060
$21.49
19
BACKREST PAD ASS'Y - Call your local BRP dealership | Includes 19 to 25
204613711
Unavailable
20
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
21
Elevator Bolt
204000130
Unavailable
22
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
23
External Serrated Lock Washer 6 mm
234461608
$1.15
24
Hex. Jam Nut
204100060
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
Cushion Ass'y, Portside | Includes 26 to 30
204614545
Unavailable
26
CUSHION ASS'Y, STARBOARD - Call your local BRP dealership | Includes 26 to 30
204613713
Unavailable
27
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
28
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
29
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
30
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
31
BACKREST ASS'Y, PORT SIDE - Call your local BRP dealership | Includes 31 to 36
204613729
Unavailable
31
Backrest Ass'y, Starboard
204613717
Unavailable
32
Elevator Bolt
204000130
Unavailable
33
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
34
External Serrated Lock Washer 6 mm
234461608
$1.15
35
Hex. Jam Nut
204100060
Unavailable
36
Loctite 243, 10 ml
293800060
$21.49
37
HEADREST ASS'Y, PORT SIDE - Call your local BRP dealership | Includes 37 to 44
204613733
Unavailable
37
HEADREST ASS'Y, STARBOARD - Call your local BRP dealership
204613721
Unavailable
38
Elevator Bolt
204000130
Unavailable
39
Flat Washer M8.5 x 18
293050001
$3.07
40
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
41
External Serrated Lock Washer 6 mm
234461608
$1.15
42
Hex. Jam Nut
204100060
Unavailable
43
Loctite 243, 10 ml
293800060
$21.49
44
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
45
Front Backrest Ass'y, Port Side | Includes 45 to 51
204613731
Unavailable
45
Front Backrest Ass'y, Starboard | Includes 45 to 51
204613719
Unavailable
46
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
47
Elevator Bolt
204000130
Unavailable
48
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
49
External Serrated Lock Washer 6 mm
234461608
$1.15
50
Hex. Jam Nut
204100060
Unavailable
51
Loctite 243, 10 ml
293800060
$21.49
52
BACKREST PAD ASS'Y, PORT SIDE - Call your local BRP dealership | Includes 52 to 58
204613727
Unavailable
52
BACKREST PAD ASS'Y, STARBOARD - Call your local BRP dealership | Includes 52 to 58
204613715
Unavailable
53
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
54
Elevator Bolt
204000130
Unavailable
55
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
56
External Serrated Lock Washer 6 mm
234461608
$1.15
57
Hex. Jam Nut
204100060
Unavailable
58
Loctite 243, 10 ml
293800060
$21.49
59
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
60
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
61
Dart
293730021
$7.79
62
Nylon Washer 5/16”
204100040
Unavailable
63
PAD ASS'Y, PORT SIDE - Call your local BRP dealership | Includes 63 to 69
204613735
Unavailable
63
Pad Ass'y, Starboard | Includes 63 to 69
204613723
Unavailable
64
Elevator Bolt
204000130
Unavailable
65
Flat Washer M8.5 x 18
293050001
$3.07
66
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
67
External Serrated Lock Washer 6 mm
234461608
$1.15
68
Hex. Jam Nut
204100060
Unavailable
69
Loctite 243, 10 ml
293800060
$21.49
70
Helm Access Curtain | Includes 70 to 72
204613737
Unavailable
71
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
72
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
