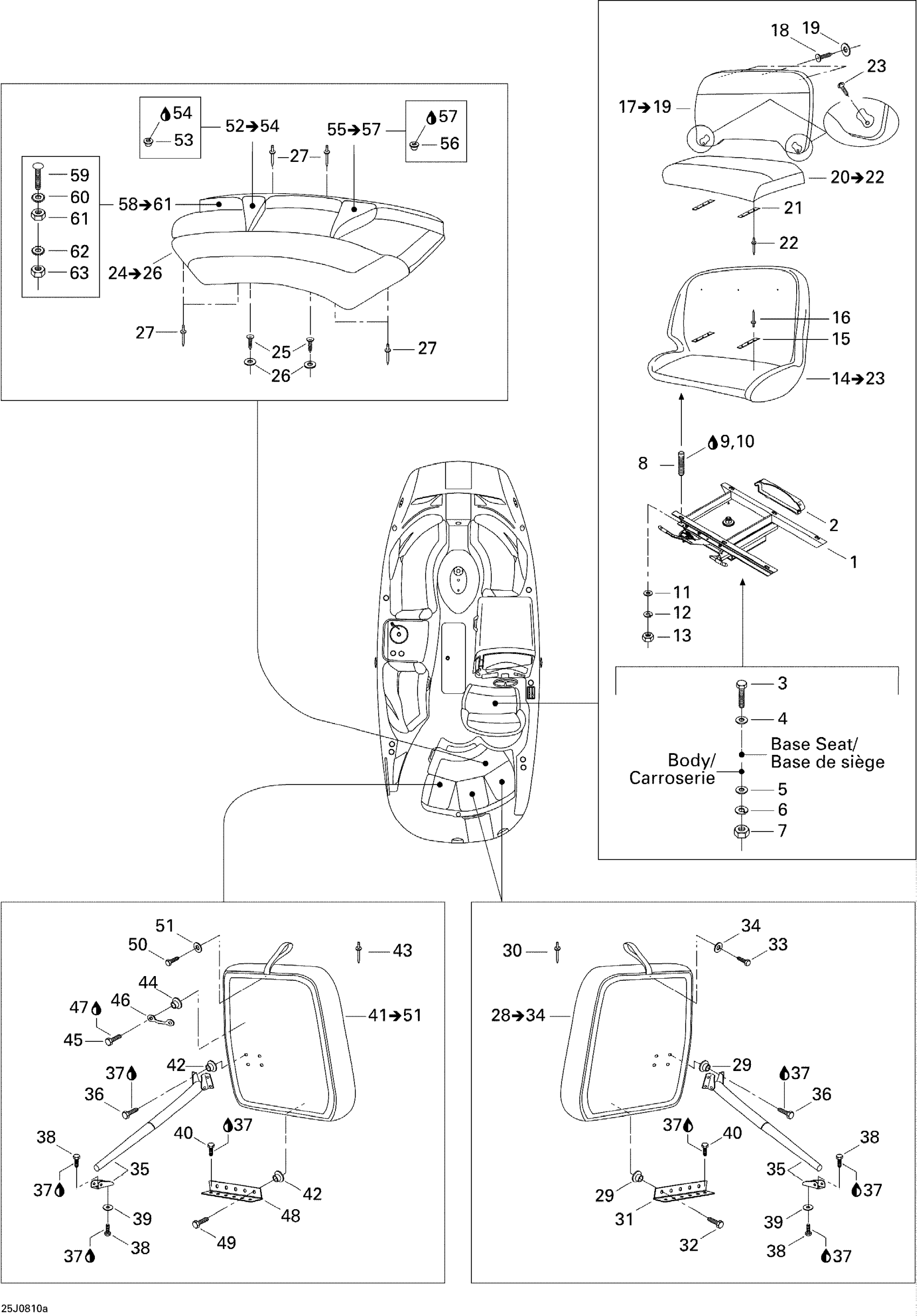

Sea-doo Islandia SE 430, 2008 09- Seat 1 Diagram
#
1
SWIVEL BASE SEAT - Call your local BRP dealership
204611540
Unavailable
2
Rear Protector
204610376
Unavailable
3
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
4
Stainless, Flat Washer 8 mm
234081600
$0.55
5
Flat Washer 8 mm, Stainless
234082600
$2.43
6
Lock Washer 8 mm, Stainless
234181601
$0.55
7
Hex. Elastic Nut M8
232581600
$1.48
8
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership
204100077
Unavailable
9
Was 293800041 Loctite Primer 7649
219704458
$39.99
10
Loctite 271, 10 ml
293800005
$26.99
11
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
12
Lock Washer 1/4”
211200025
$1.29
13
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
14
Driver Seat Ass'y | Includes 14 to 23
204613686
Unavailable
15
Velcro Strip
293740007
Unavailable
16
RIVET - Call your local BRP dealership
293150065
Unavailable
17
Backrest Ass'y | Includes 17 to 19
204613690
Unavailable
18
Black Dart
293730014
$0.99
19
Flat Washer M6, Stainless
234062600
$0.77
20
Cushion Ass'y | Includes 20 to 22
204613691
Unavailable
21
VELCRO STRIP - Call your local BRP dealership
293740004
Unavailable
22
Pop Rivet 3/16"
293150008
$0.50
23
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
24
Cushion Ass'y | Includes 24 to 26
204614416
Unavailable
25
Black, Dart
293730006
$0.99
26
Flat Washer M6, Stainless
234062600
$0.77
27
Pop Rivet 3/16"
293150013
$1.37
28
BACKREST ASS'Y STARBOARD - Call your local BRP dealership | Includes 28 to 34
204613700
Unavailable
28
Center Backrest Ass'y | Includes 28 to 34
204613695
Unavailable
29
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
30
Pop Rivet 3/16"
293150043
$2.09
31
BACKREST HINGE - Call your local BRP dealership
204610750
Unavailable
32
SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership
204100035
Unavailable
33
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
34
Flat Washer 4 mm, Stainless
234042600
$1.15
35
Locking Support
204610749
Unavailable
36
SOCKET HEAD SCREW 1/4? X 1? - Call your local BRP dealership
204100037
Unavailable
37
Loctite 243, 10 ml
293800060
$21.49
38
SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership
204100035
Unavailable
39
Flat Washer M6, Stainless
234062600
$0.77
40
SOCKET HEAD SCREW 1/4? X 1-1/4? - Call your local BRP dealership
204100036
Unavailable
41
Backrest Ass'y Port | Includes 41 to 51
204613687
Unavailable
42
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
43
Pop Rivet 3/16"
293150043
$2.09
44
TEE-NUT #10-32 - Call your local BRP dealership
204100044
Unavailable
45
SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership
204100045
Unavailable
46
Chain Pad
204610988
Unavailable
47
Loctite 243, 10 ml
293800060
$21.49
48
BACKREST HINGE - Call your local BRP dealership
204610750
Unavailable
49
SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership
204100035
Unavailable
50
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
51
Flat Washer 4 mm, Stainless
234042600
$1.15
52
FILLER PAD ASS'Y STARBOARD - Call your local BRP dealership | Includes 52 to 54
204613709
Unavailable
53
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
54
Loctite 243, 10 ml
293800060
$21.49
55
FILLER PAD ASS'Y - Call your local BRP dealership | Includes 55 to 57
204613685
Unavailable
56
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
57
Loctite 243, 10 ml
293800060
$21.49
58
Spoiler Ass'y | Includes 58 to 61
204613705
Unavailable
59
Elevator Bolt
204000130
Unavailable
60
External Serrated Lock Washer 6 mm
234461608
$1.15
61
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
62
Flat Washer 8 mm, Stainless
234082600
$2.43
63
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
