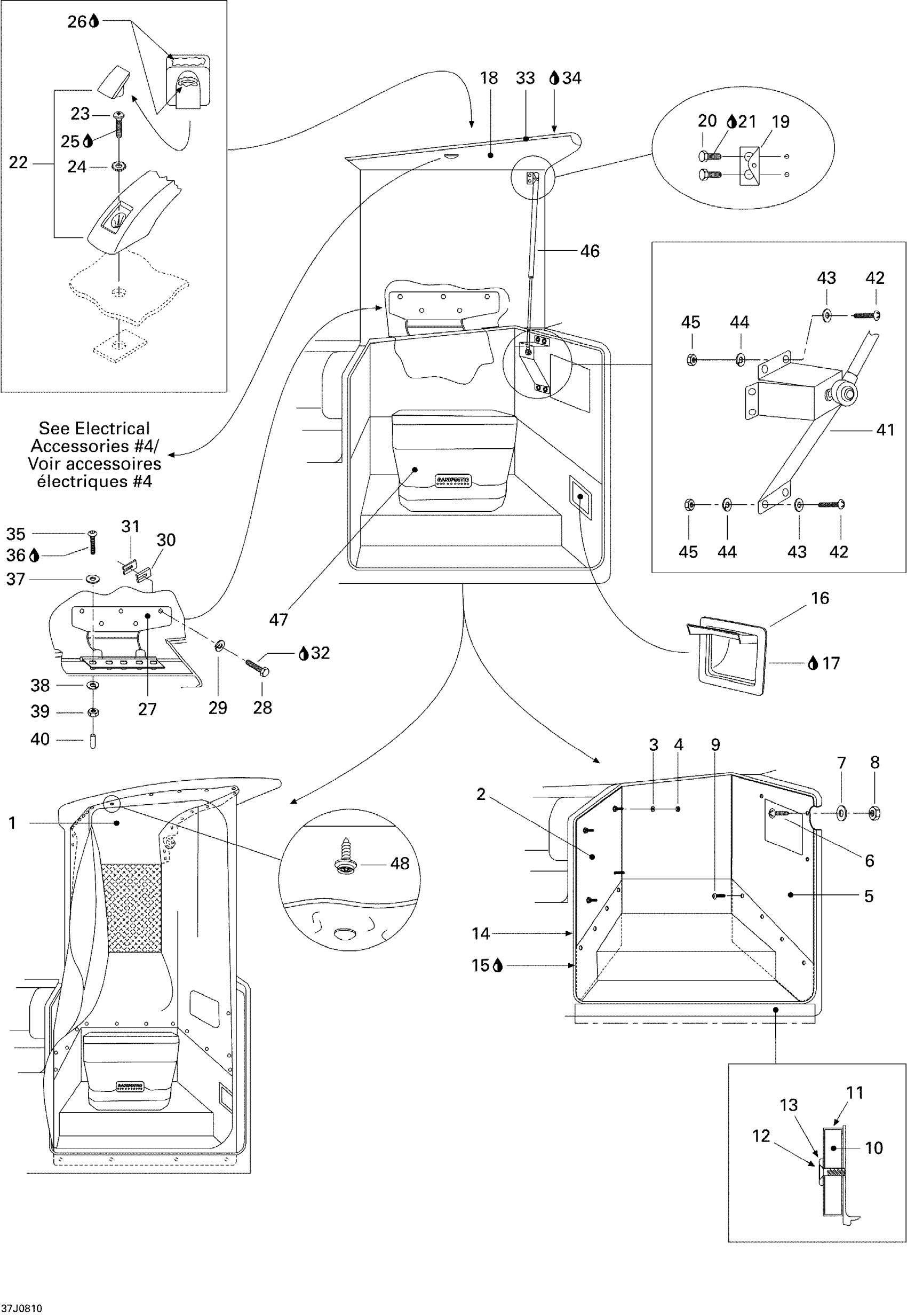

Sea-doo Islandia SE 430, 2008 09- Portable Toilet Diagram
#
1
Headliner, Toilet Door
204070764
Unavailable
2
PLASTIC FORM, FRONT BULKHEAD - Call your local BRP dealership
204071028
Unavailable
3
Flat Washer M6, Stainless
234062600
$0.77
4
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
5
PLASTIC FORM, REAR BULKHEAD - Call your local BRP dealership
204070776
Unavailable
6
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
208663060
Unavailable
7
Flat Washer M6, Stainless
234062600
$0.77
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
10
LOWER DOOR COVER - Call your local BRP dealership
204070779
Unavailable
11
Headliner, Toilet Door
204070764
Unavailable
12
PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership
204100056
Unavailable
13
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
14
Rubber Trim
204070752
Unavailable
15
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
16
Paper Holder
204070637
Unavailable
17
Silicone Sealant 51388, 300 ml
296000309
$36.99
18
Toilet Door
204072582
Unavailable
19
Shock Bracket
204073074
$27.99
20
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
21
Loctite 243, 10 ml
293800060
$21.49
22
Handle Grip
204071710
Unavailable
23
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208663560
Unavailable
24
Stainless Flat Washer M6
234061600
$0.33
25
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
26
Loctite 243, 10 ml
293800060
$21.49
27
TOILER DOOR HINGE - Call your local BRP dealership
204070642
Unavailable
28
Hex. Forming Screw M6 X 20
207162060
$1.29
29
Lock Washer Helical M6
234161601
$1.15
30
SPACER 3.2 MM - Call your local BRP dealership
204070047
Unavailable
31
SPACER 1.6 MM - Call your local BRP dealership
204070088
Unavailable
32
Loctite 243, 10 ml
293800060
$21.49
33
Trim, White, 7/16”, Meter
204072759
Unavailable
34
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
35
Socket Screw M6 X 40
205464060
$2.22
36
Loctite 243, 10 ml
293800060
$21.49
37
Flat Washer M6, Stainless
234062600
$0.77
38
Lock Washer Helical M6
234161601
$1.15
39
Hex. Elastic Stop Nut M6
232561600
$1.15
40
Cap
204070947
Unavailable
41
CYLINDER SUPPORT, TOILET - Call your local BRP dealership
204070765
Unavailable
42
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
208663060
Unavailable
43
FLAT WASHER 6 MM - Call your local BRP dealership
234060600
Unavailable
44
Lock Washer Helical M6
234161601
$1.15
45
Hex. Elastic Stop Nut M6
232561600
$1.15
46
Gas Shock
204071925
Unavailable
47
PORTABLE TOILET - Call your local BRP dealership
204070636
Unavailable
48
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
